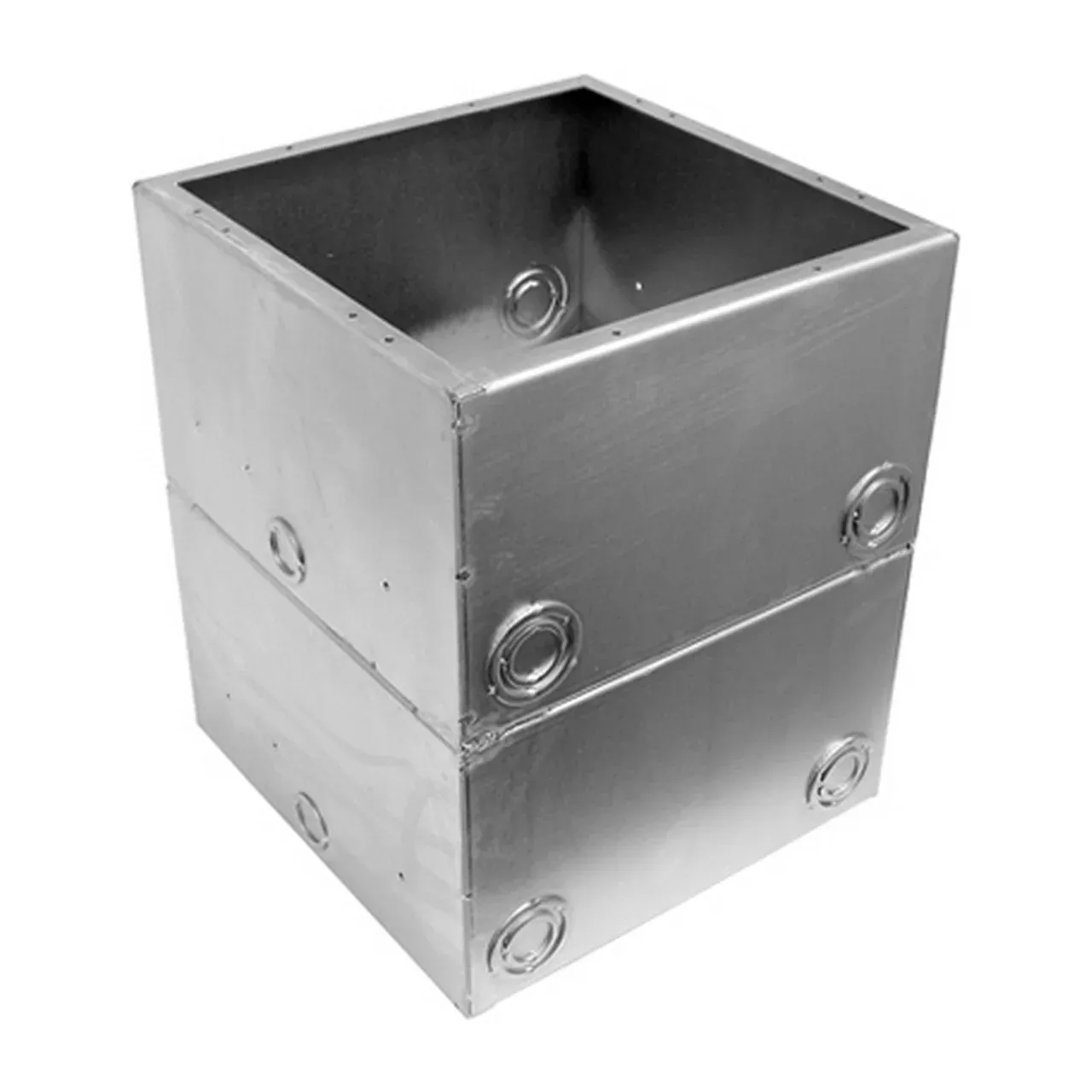

Ace Backstage Co. 102DDBBX Back Box Double Deep for Full Pocket
ACE Double Deep Back Boxes (102DDBBX and 104DDBBX) are (as the name implies) twice as deep (12”) as Standard BBX Series Back Boxes (6”) and may be used exclusively with ACE Full and Double Wide Stage Pockets. The 102DDBBX and 104DDBBX Double Deep Back Boxes are welded 14 gauge steel with a protective cover that is discarded when the pocket body is finally installed. The box and cover have a clear zinc corrosion resistant finish. A 1/2” mounting flange is predrilled to mate with the pocket body flange. The pocket body assembly is 4.5” deep and the back box is 12” deep providing an extra-large 7.5” work clearance in the bottom of the back box (ideal for feed thru or distribution junction).
Key Features
- Back Box with Double Wide Pocket Clearance volume: 1308 Cubic Inches
- DURABLE CONSTRUCTION: ACE Standard Double Deep Back Boxes (DDBBX) are made from tough, welded 14 gauge steel (.071″ thick).
- (1) DDBBX Series Back Box
- (1) Disposable Protective Cover
- (4) Self Tapping Screws
Technical Specifications
102DDBBX Series Back Box Capacity
1 Full Stage Pocket
102DDBBX Series Back Box Size
10.000” W x 12.000” H x 10.000″ L
