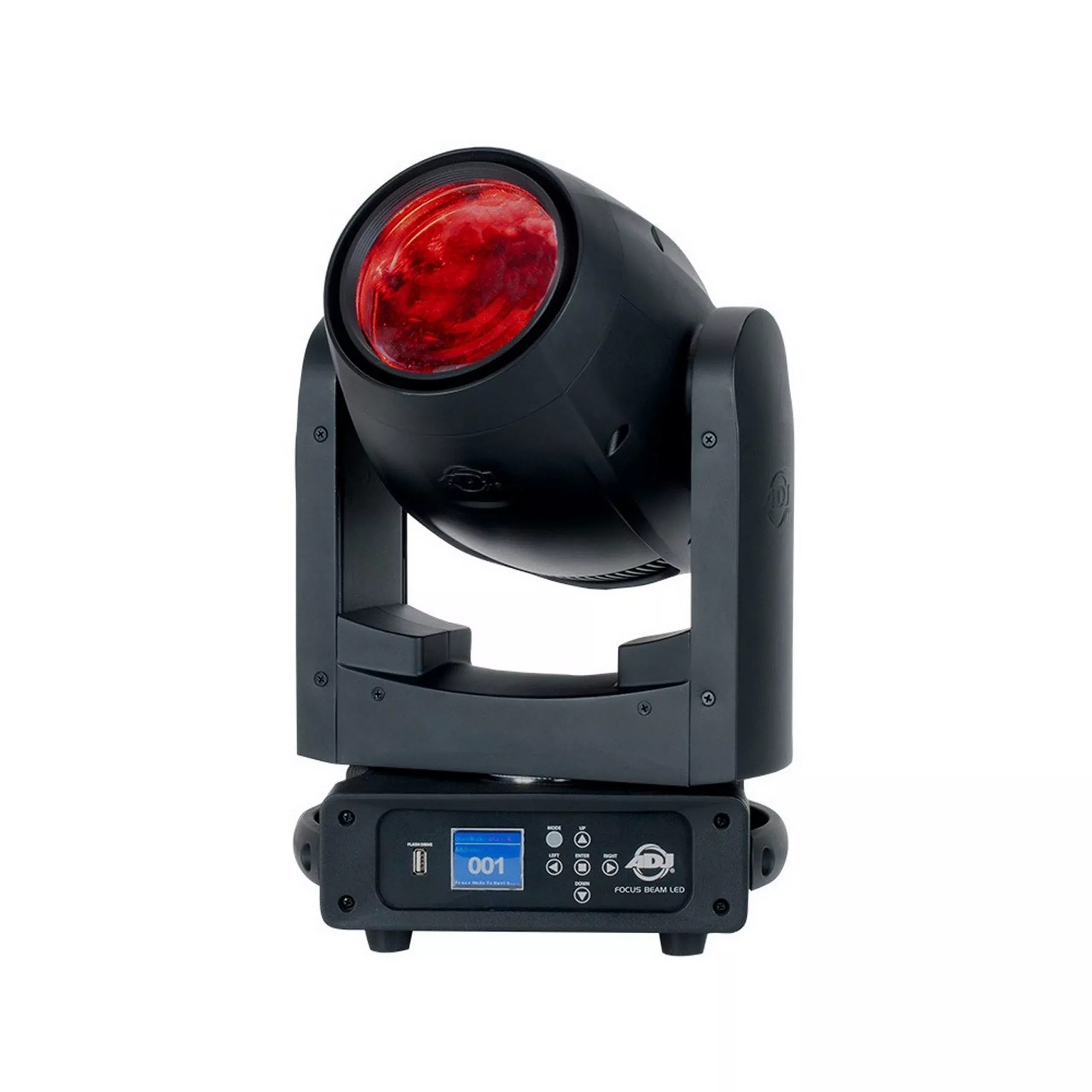

American DJ Focus Beam LED 80 Watt LED Beam Moving Head
The Focus Beam LED, a complimentary fixture to the other Focus Series moving heads, uses a powerful 80W LED engine to produce a powerful, 7400K, 5-degree beam from an advanced optical system. This fixture features motorized focus, two prism effects (rotatable 8-facet Circular and rotatable 6-facet Linear), and it has a built-in in frost filter for wash effects.
Key Features
- 3 dichroic colors plus white, and has 15 fixed GOBOs plus open and a GOBO shake effect
- Pan and Pan Fine: 630 degrees
- Tilt and Tilt Fine: 270 degrees
- USB port on the rear panel used to update firmware
- Seetronic In/Out connections to daisy chain power, and 3-pin DMX In/Out to link data
Technical Specifications
Electrical
Multi-voltage operation
AC 100-240V, 50-60Hz (Auto Sensing)
Maximum Power Consumption
136W @ 120V
Daisy chain
15 units @ 120V; 30 units @ 230V
Dimensions & Weight
Length
17.59” (447mm)
Width
10.96” (279mm)
Height
7.54” (192mm)
Weight
23 lbs. (10.2 kg)
What’s Included
2x Omega Brackets
1x Seetronic Power Locking Power Cable
