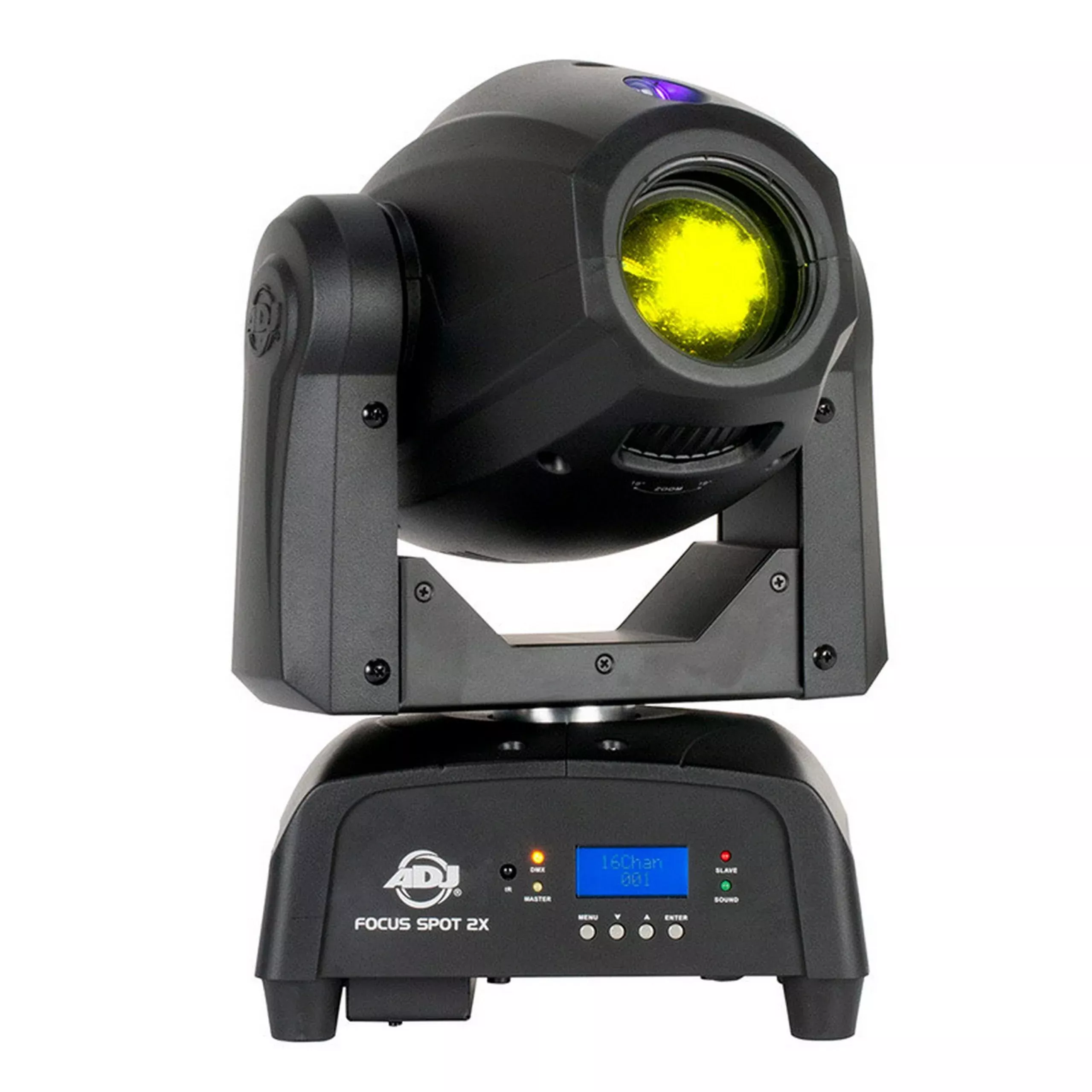

ADJ FOCUS SPOT 2X 100W UV LED Moving Head
The ADJFocus Spot 2X is a 100W LED Moving Head with a 3W UV LED included for blacklighting or additional color hues. It features two prism effects; a 6-facetcircular prism and a 6-facet linear prism. In addition, ADJ has fitted the FS2Xwith a GOBO wheel with replaceable, rotating and indexable GOBOs. The GOBOs areeasy to replace by removing the top housing with one screw that’s on a hinge.GOBOs easily lock in and out of the GOBO wheel. This mover is also equippedwith motorized focus, Gobo Indexing, EZ Gobo replacement and a manual zoom knobnear the lens to change the beam angle from 16 ~ 19 degrees.
The FocusSpot 2X is extremely versatile and has everything clubs, theaters, churches,concert productions and lighting professionals are looking for in a LED spotmoving head. It has 16 & 18 DMX channel modes, Pan/Tilt Inversion, 16-BitFine Pan/Tilt, 3-pin DMX In/Out, locking In/Out power connectors, and a4-Button DMX LCD menu.
The FocusSpot 2X is fitted with 8 colors plus spot and split colors. It has 6 rotating,replaceable GOBO patterns plus spot. The color wheel and GOBO wheel workindependent of each other. All GOBOs are indexable.
Technical Specifications
Light Source:
1 x 100WCold White LED (7600 deg K, 50,000 hr.)
1 x 3W UVLED
Features:
MotorizedFocus
Manual Zoomknob on head: 16 ~ 19 degree beam angle
Fan cooled
Strobe/Pulseeffect; random strobe slow to fast
UC IR &Airstream IR Compatible (Sold Separately)
Color Wheel:
8 Colors +White & Split Colors
GOBO Wheel:
6 Rotating,replaceable Gobos + Spot
Gobo Size:Outer: 23mm/Inner:19mm/Thickness: 0.5mm
GoboIndexing
EZ Goboreplacement with hinged head cover
Gobo Shakeeffect
Prism Wheel:
6-facetcircular prism
6-facetlinear prism
Control:
3Operational Modes: Sound Active, Show Mode, & DMX Controlled
Master /Slave-able
4 Built-inlighting shows
16 & 18DMX channel modes
ElectronicDimming: 0% – 100%
5 DimmerCurves
4-Button DMXLED menu
Steppermotors with micro stepping
With WiredDigital Communication Network
Connections:
3-pin DMXIn/Out
Twistlocking power In/Out connections on rear to daisy chain power (up to 9 FocusSpot 2X’s @ 120V and 16 Focus Spot 2X’s @ 230V)
Pan/Tilt:
Fast andprecise Pan/Tilt Movements
16-Bit FinePan/Tilt control
Pan:540-degree
Tilt:270-degree
Pan/TiltInvert Mode
4, Built-In,Pan/Tilt Target Modes
Electrical:
Multi-voltageOperation: 100-240V, 50Hz/60Hz
PowerConsumption: 180W
Dimensions / Weight:
Dimensions(LxWxH): 9.33” x 9.10” x 15.15”/ 237 x 231 x 385mm
Weight: 14.5lbs. / 6.5 kgs.
What’s Included:
IncludesOmega bracket for truss mounting
Includespower cable
Approvals:
CE
ETL(Pending)
