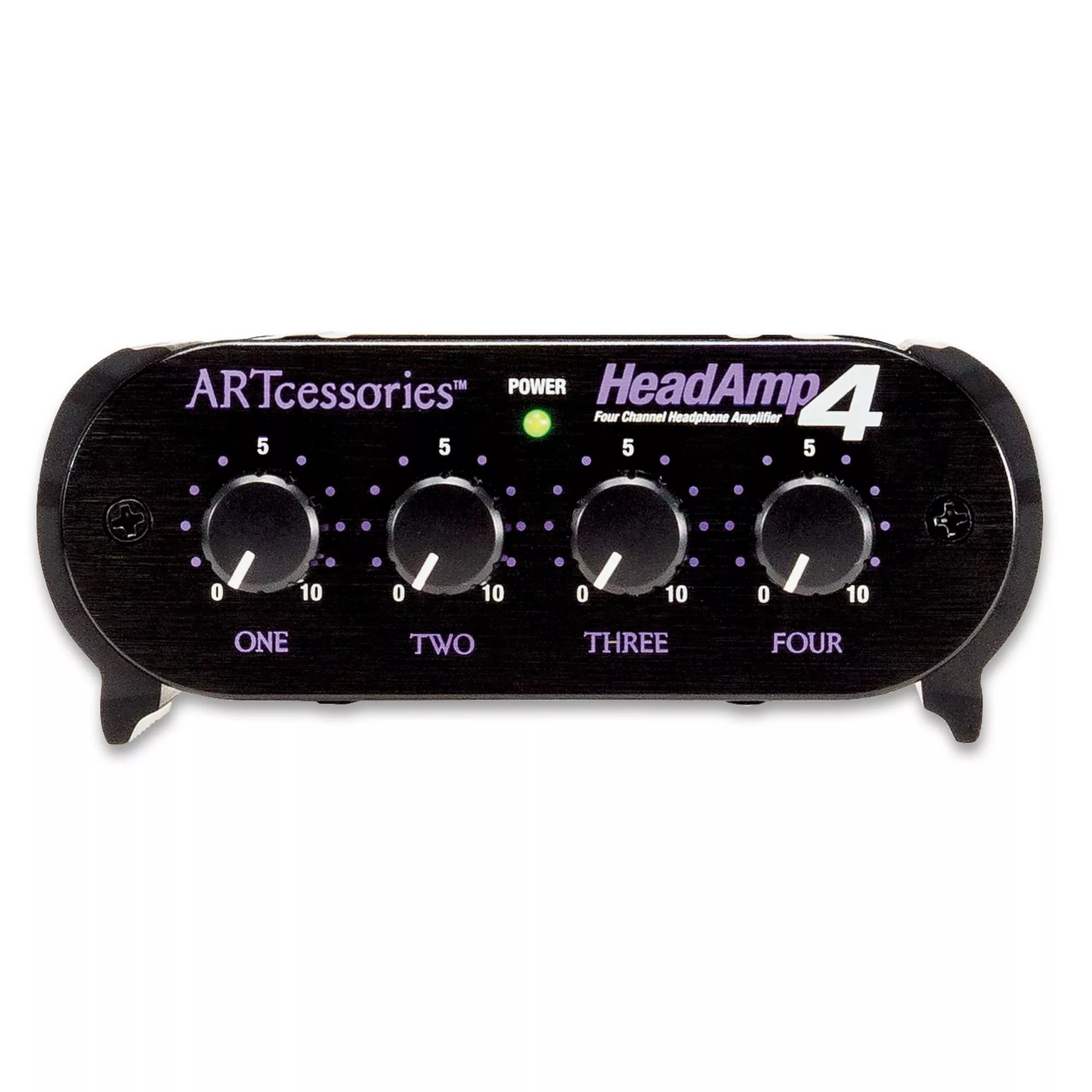

ART HeadAmp 4 8-Output Stereo Headphone Amplifier

ART HeadAmp 4 8-Output Stereo Headphone Amplifier

The HeadAmp4offers 1/8th-inch as well as 1/4-inch inputs and outputs as well as lowernoise, lower distortion and more output in a new custom extruded stackablemetal case.

Ideal forvirtually any home or project studio, the ARTcessories HeadAmp4 easily addsadditional headphone outputs to any mixer, computer audio interface,workstation, iPod, media player or laptop without creating any additional loadon the existing headphone source.

Individuallevel controls for the four headphone outs, 1/4-inch and now 1/8th-inchconnections allow the HeadAmp4 to connect to virtually any source, and driveany headphone configuration including studio phones, in-ear monitors or customear pieces or any combination of the above.

Key Features

• 4 OutputChannels Each with Individual Volume Control
• Stereo1/4-inch & 1/8-inch Inputs (Wired Parallel)
• Can beConnected to Any Line-Level Source or Headphone Output
• Four Stereo1/4-inch & Four 1/8-inch Headphone Outputs
• Power “On”LED

Technical Specifications

Maximum Input Level
+14dBV
Input Impedance
90.9k OHM
Maximum Output Level
+14dBu
Maximum Gain
20dB
Output Impedance
47 OHM (eachoutput)
Frequency Response
20 – 20 kHz
Signal To Noise Ratio
> 90dB(ref 0dBu)
Total Harmonic Distortion
<0.01%
IMD (SMPTE)
0.01%
Power
12V DC(Adapter included)
Dimensions
1.85”H x 4.6”Wx 4.1”D (47mm x 117mm x 104mm)
Weight
1.3 lbs(0.61kg)
Notes
0dBu =0.775Vrms
