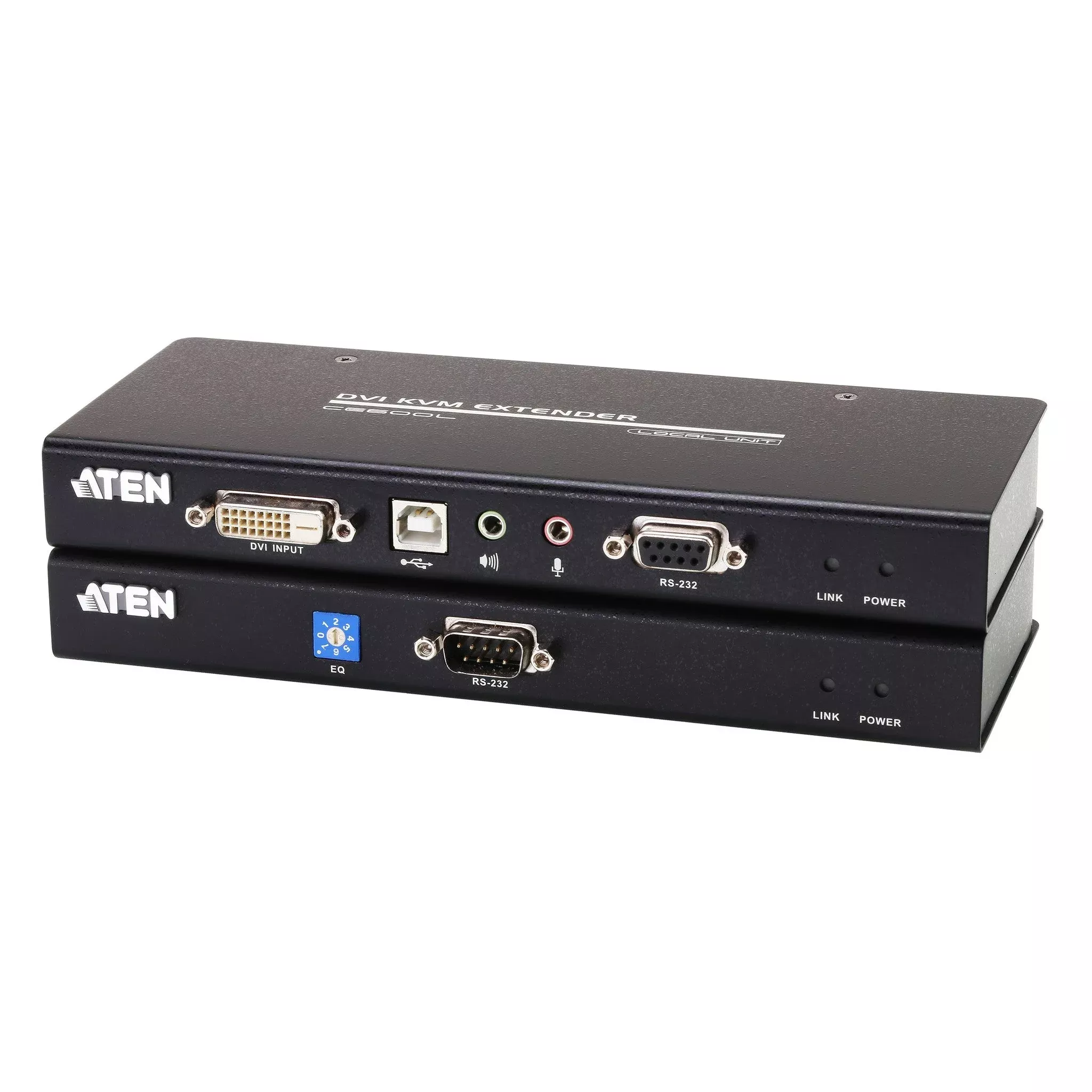

ATEN CE600 USB DVI Cat 5 KVM Extender

ATEN CE600 USB DVI Cat 5 KVM Extender

The CE600 isa DVI and USB based KVM Extender with RS-232 serial functionality. It allowsaccess to a computer system from a remote console (USB keyboard, monitor, andmouse). Because it allows access to a computer system from a remote console,the CE600 is perfect for use in any type of installation where you need toplace the console where it is conveniently accessible, but you want the systemequipment to reside in a safe location – away from the dust and dirt of thefactory floor, or the harsh environmental infl uence of a construction site,for example. This allows users to deploy system equipment over large distances.

Key Features

• Local andRemote Units connect at distances up to 60 m using Cat 5e cable
• Allowsaccess to a computer or KVM installation from a remote console (up to 60 m)
• FeaturesATEN technology that allows A/V transmission over one cat 5e cable
• The 2nd Cat5e cable is used for HDCP, RS-232, and microphone signals
• Manualcompensation control to adjust signal strength in order to compensate fordistance
• RS-232serial ports – connect to a serial terminal, or serial devices such astouchscreens and barcode scanners (Baud Rate up to 115200 bps)
• AudioEnabled – supports stereo speakers and microphone
• Built-in8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
• SupportsWide Screen formats
• Superiorvideo quality of up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m -get an excellent, crisp image on your screen over long distance transmissions
• Hotpluggable
• Rackmountable
• Easy toinstall – no software required – connecting cables to the devices is all ittakes
• Firmwareupgrade
