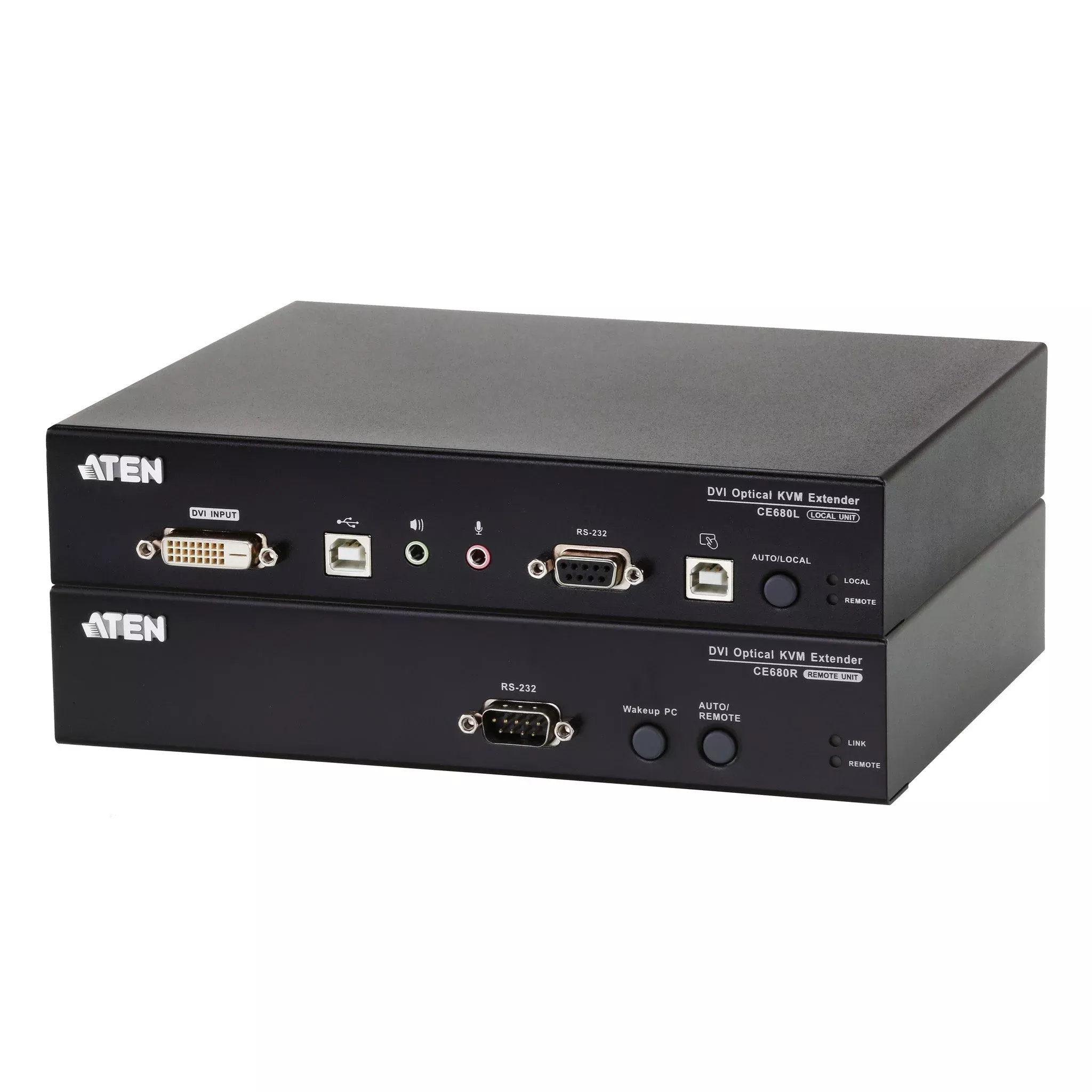

ATEN CE680 USB DVI Optical KVM Extender
The CE680 isa DVI Optical KVM Extender that overcomes length restrictions of standard DVIcables by using fiber optics to send high definition audio, video and controlsignals over longer distances. The CE680 can transmit KVM DVI signals very longdistances – up to 600 m away from the source. The extender takes audio/videostreams from the local source and serializes the data to pass it over a single3.125 Gbps optical link, for resolutions up to 1920 x 1200 @ 60Hz, 24-bits,with picture perfect quality.
Key Features
- Allowsaccess to a computer or KVM installation from a local / remote console
- SupportsDVI-D interface and allows transmission of DVI single-link signals
- Superiorvideo quality of up to 1920 x 1200 @ 60 Hz (24-bits) – get an excellent, crispimage on your screen over long distance transmissions up to 600 m*
- Touchscreensupport – connect a generic touchscreen, including devices up to 10-pointmulti-touch, to accommodate highly interactive applications (no extra driversneeded)
- Dual consoleoperation – control your system from both the local and remote USB keyboard,monitor, and mouse consoles
- Uses onefiber optic cable to connect the local and remote units
- HDCPcompatible
- RS-232serial port – connect to a serial terminal, or serial devices such as barcodescanners (Baud Rate up to 115200 bps)
- PC Wakeupsupport – use a pushbutton on a Remote Unit to wake a PC at the local site viaRS-232
- AudioEnabled – supports stereo speakers and microphone
- Rackmountable
