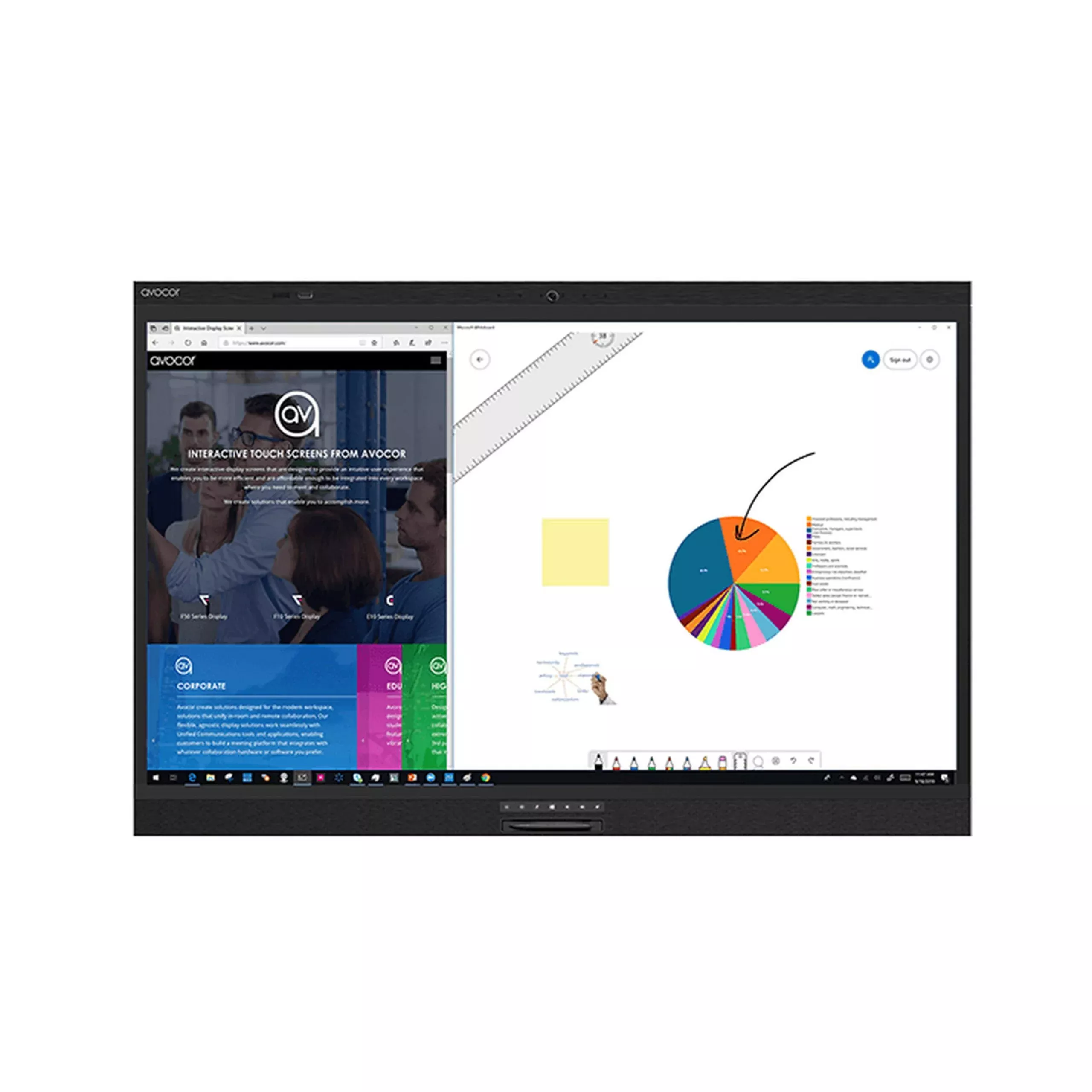

Avocor W6555 65 Inch Interactive 4K Windows Collaboration Display
Windowscollaboration displays by Avocor enable Microsoft 365 at room scale forenhanced teamwork. The WCD by Avocor features a single-cable connection forseamless laptop pairing, while advanced monitoring data improves facilities andmeeting ROI. The new collaboration displays are fully compatible with Windows10 and offer a first-ever single-cable solution that solves the frustrating andoften time-consuming problem of connecting devices and people in meetings. Thenew Windows collaboration displays by Avocor make it simple for teams to connectin a huddle space, across the conference table or even across the globe,allowing them to work together seamlessly and get more done.
Key Features
- Thesingle-cable solution that immediately and intelligently connects a Windows PCto the display, and enables immediate control of the new camera and mic forvideo and audio, as well as provides hard-wire ethernet connection, power andUSB touch-back to the laptop
- Windowscollaboration displays designed and built by Avocor combine crisp 4K resolutionwith 20-point touch to offer exceptionally responsive and pixel-perfect touch
- Connect andengage with colleagues regardless of location through the integrated, premiumconference camera and stereo speakers
- Built-insensors that connect to Azure IoT Digital Twins, so IT and facility managerscan utilize the environmental data such as room presence and temperature,allowing for real-time adjustments as well as future room / investment planning
TechnicalSpecifications
DISPLAY
Diagonal size (inch)
65″
Backlight
Direct LED
Aspect ratio
16:9
Resolution
4K, 3840 x2160 @ 60Hz
Brightness
370 (cd/m2)
Viewing angle
178/178
Supported colors
30-bit deepcolor
Display orientation
Landscape
TOUCH SYSTEM
Interface
1 x USB TypeC, 3 x USB-B 3.0
Touch
Up to20-point InGlass Intelligent Touch | Supports up to 4 fine-tip stylus witheraser | Simultaneous pen and touch (application dependent)
Glass
2mmoptically bonded, anti-glare, anti-fingerprint glass
Supported operating system
Windows7/8/10 | Mac OSX | Linux
CAMERA
Integrated conference camera
6 elementaspherical glass lens, Full HD Sony CMOS, AE/AWB, AF, AGC, WDR, super-wide 120FoV
AUDIO
Built-in speakers
Stereo – 2 x30W
Microphone array
4 xbeam-forming, linear array, far-field, SSP, AEC, ANS, DRC, EQ
CONNECTIVITY
Standard I/O
Type C(DisplayPort Alt mode, 4K 60Hz, USB HID, PD Power, Ethernet) | 1 x DisplayPort,2 x HDMI, 3 x USB-B 3.0, 1 x USB-A 3.0 HID
Audio
1 x 3.5mmaudio out, 1 x optical (SPDIF)
Control
1 x RS-232,1 x IR input
Ethernet
2 x RJ-45
PHYSICAL
Product dimensions
1568(W) x1039(H) x 111.5(D) mm | 62.5(W) x 40.9(H) x 4.4(D) inch
Shipping dimensions
1695(W) x1237(H) x 520(D) mm | 66.7(W) x 48.7(H) x 20.5(D) inch
Weight
55kg |121lbs
VESA wall mounting points
600 x 400 mm| 23.6 x 15.7 inch
IPC mount
75 x 75 mm |2.9 x 2.9 inch (100 x 100 mm adapter plate)
Handles
Yes
POWER
Power supply
AC100-240V(Worldwide), 50/60HZ
Maximum power consumption
<220W
Standby
0.5W
ENVIRONMENTAL
Operating temperature
0C ~ 40C
Storage temperature
-20C ~ 60C
Humidity
30% ~ 85%
