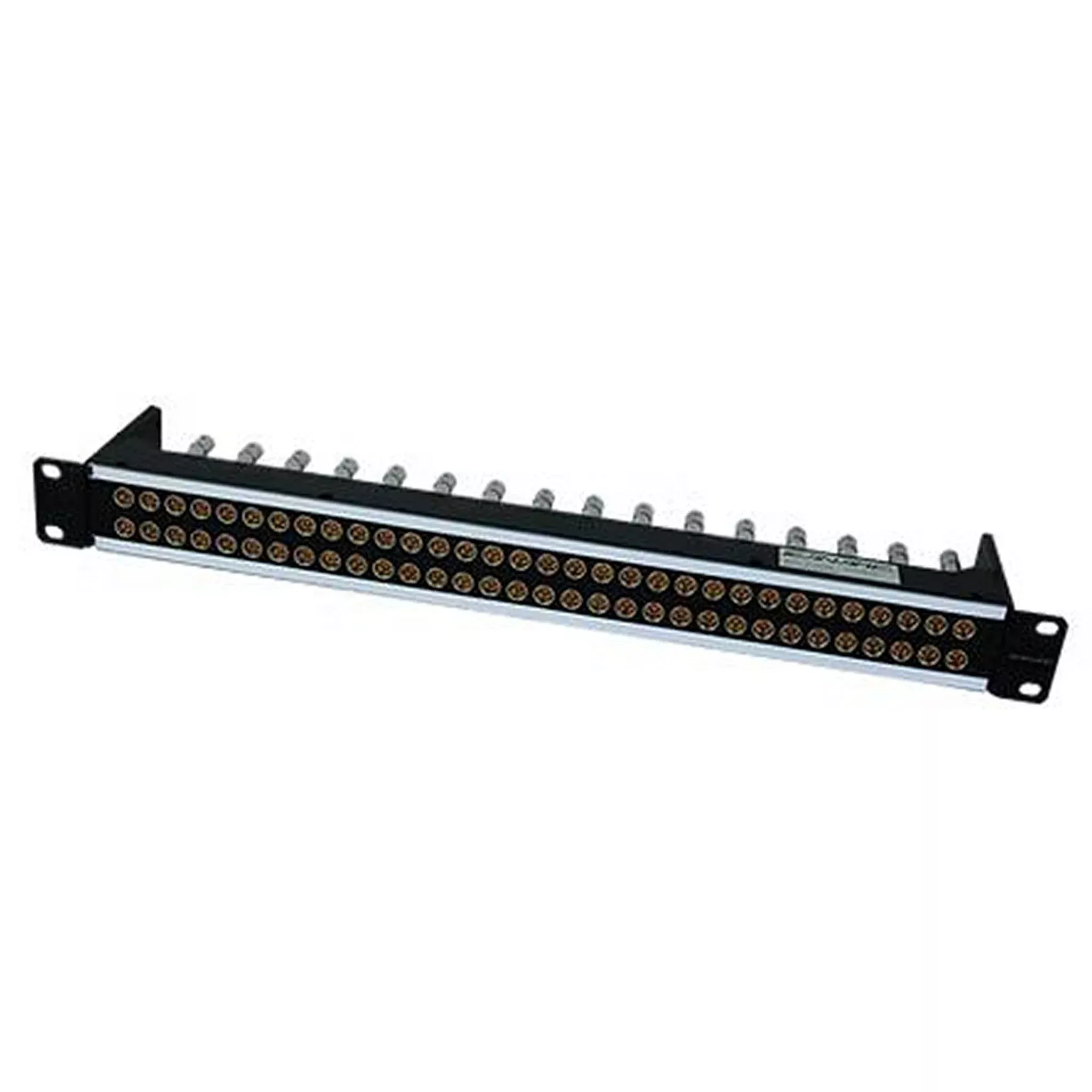

Canare 24DV 1RU 2 x 24 75 Ohm Digital Video Patch Bay, Normal Through
Canareoffers choices! Choose anywhere between a 2X20 thru to a 6X26 Canare 75 Ohmvideo rack patchbay all loaded with Canare’s DVJB-W 75 Ohm Dual Video JackModules (WECO Standard). DVJB-W is “normal through”, which provides anormalled route between top and bottom jacks and each DVJB-W module comescomplete with two 75 ohm BNC’s installed on the rear. Perfect choice for MasterControl, Headends, EdIt’suIt’s, small Production Studios, OB Vans or anywhererack space is at a premium.Each video jack is specifically designed for usewith high-frequency signals. It incorporates an independently-developed rotaryswitch, which provides superior signal isolation (35dB or greater @ 750MHz and20dB or greater @ 3.0GHz) and utilizes dual contact construction for improvedcontact stability.
Key Features
- SMPTE 424MCompliant
- HiDeffinition Serial Digital Interface (HD-SDI)
- SerialDigital Video
- DigitalAudio Patch (75 ohm)
- HDTVUpgrades
- NTSC Analog
- SatelliteHeadends
- OB Van
- BroadbandTelcom
- 75 OhmDigital Video Patchbay
- 1RU, 2RU,4RU Available
- DVJB-WLoaded
- DC to 3.0GHz& 20dB Return Loss
- CanareImproved Original “Rotary” Switch
- 1RU, 2RU or4RU Across Loading
- BerylliumCopper, Gold Plated Center Contacts
- Light WeightAlloy Body
- Easy FrontMount Assembly
