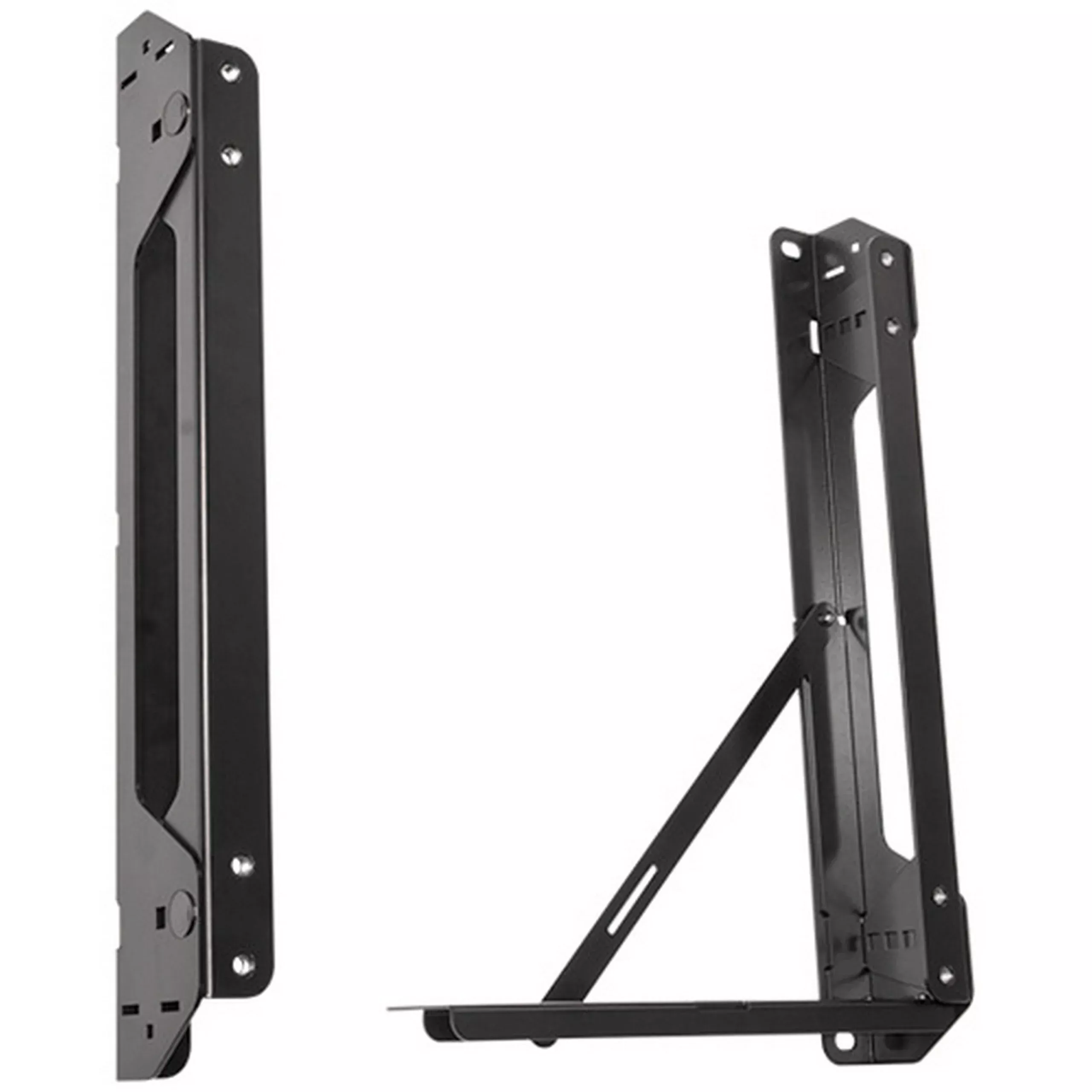

Chief FCA113 Fusion CPU Extender Accessory
For digitalsignage applications, many installers want to mount the content generating DMPor CPU near the display. Fusion mounts sit too close to the wall to leave roomfor larger CPUs. Installers want an option to extend the very popular Fusionmount further from the wall to give space to mount other devices.
Key Features
- Adds 3 to 5inches to the space behind the Fusion mount adjustable ininch increments.
- Matches theweight capacity of the Fusion mount it supports, up to 250 lbs.
- Holds a CPUor other components on the configurable shelf up to 30 lbs.
- Shelf can belocated between the Fusion upright brackets or on the outside of the uprights.
- Maintainsthe flexibility of independent Fusion upright mounting.
- Tool-lessCPU/shelf removal for maintenance.
- 42-inchdouble-sided hook & loop strap included to secure CPU.
- TAACompliant
TechnicalSpecifications
Certifications
TAACompliant
Color
Black
Equipment Depth Range
0 – 5″(0 – 127 mm)
Overall Dimensions (H x W x D)
18.5 x 18.0x 3.0″ (470 x 457 x 76 mm)
Shipping Weight
10.00 lbs
Weight Capacity
CPU shelf upto 30 lbs (13.6 kg); matches the wight capacity of the Fusion mount up to 250lbs (113.4 kg)
