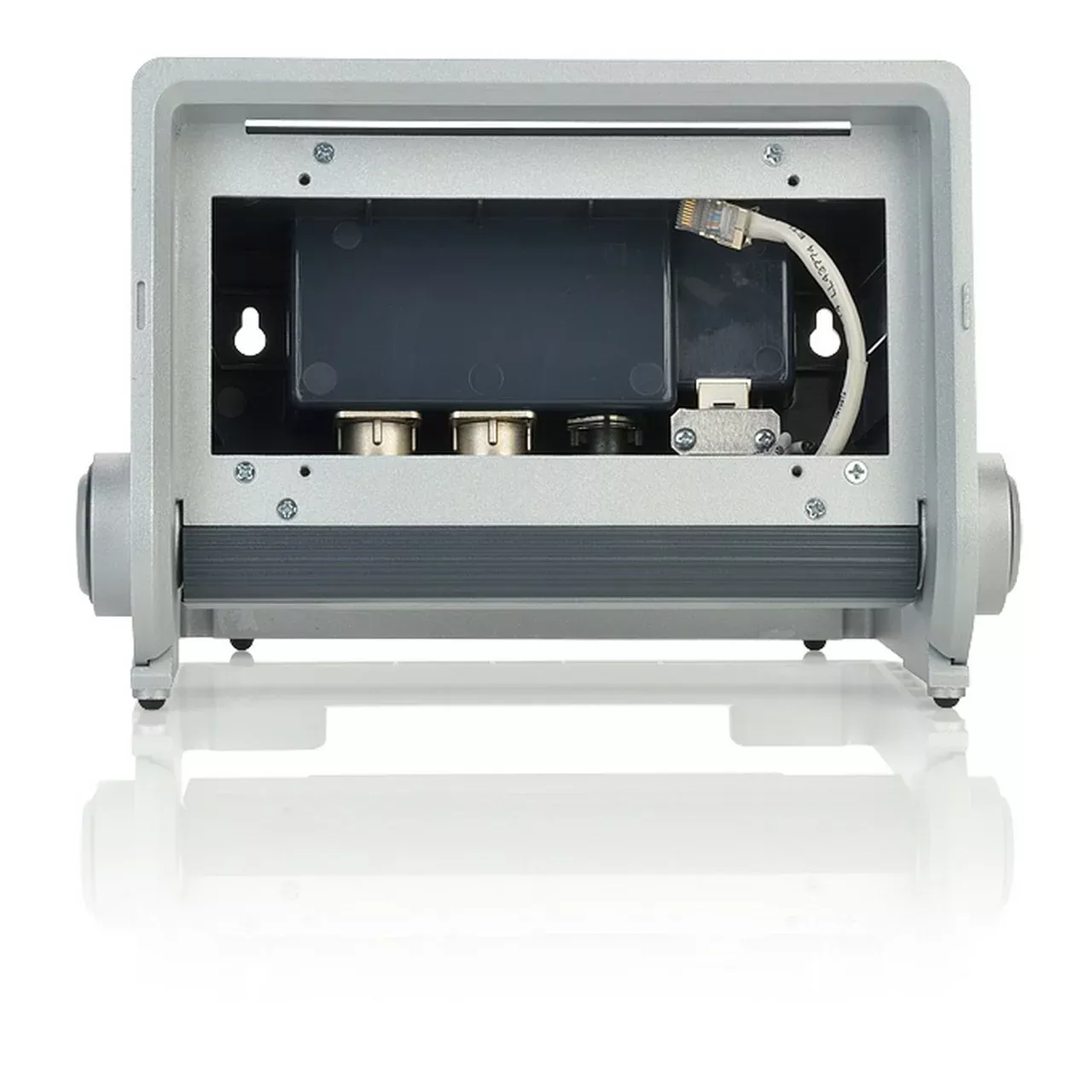

Clear-Com S-MOUNT HelixNet Wall/Desk Mount
The S-Mount is a desktop or surface mounting kit for the HKB-2X Speaker Station. It is easily adjustable to several angles for better viewing.
Key Features
- For use with HelixNet HKB-2X Speaker Stations
- Connects to HelixNet Main Stations over a single shielded twisted-pair cable
- Powered by Powerline, third party Power-over-Ethernet (PoE) or AC/DC universal power adapter
Technical Specifications
Connectors
Intercom Line: (1) 3-pin XLR-M, (1) 3-pin XLR-F
DC Power: 3-pin to AC adapter (provided)
DC Power: 3-pin to AC adapter (provided)
Ethernet/PoE: RJ-45
PSU: 3-pin
Main Power
Via AC Adapter:
AC Adapter Power
Connector: IEC60320-1-C14
Via Power over Ethernet (PoE):
Connector: RJ-45
Environmental
Max temperature is 40 deg C (104 deg F)
0 – 90% relative humidity
Dimensions
Minimum (Closed): 10.4″W x 3.9″H x 6.7″D
(265mm x 99mm x 170mm)
Maximum (Fully Open): 10.4″W x 6.9″H x 6.7″D
(265mm x 175mm x 170mm)
Weight
2.8lbs (1.2kg)
