Contemporary Research QIP-HDMI 2 IPTV Encoder

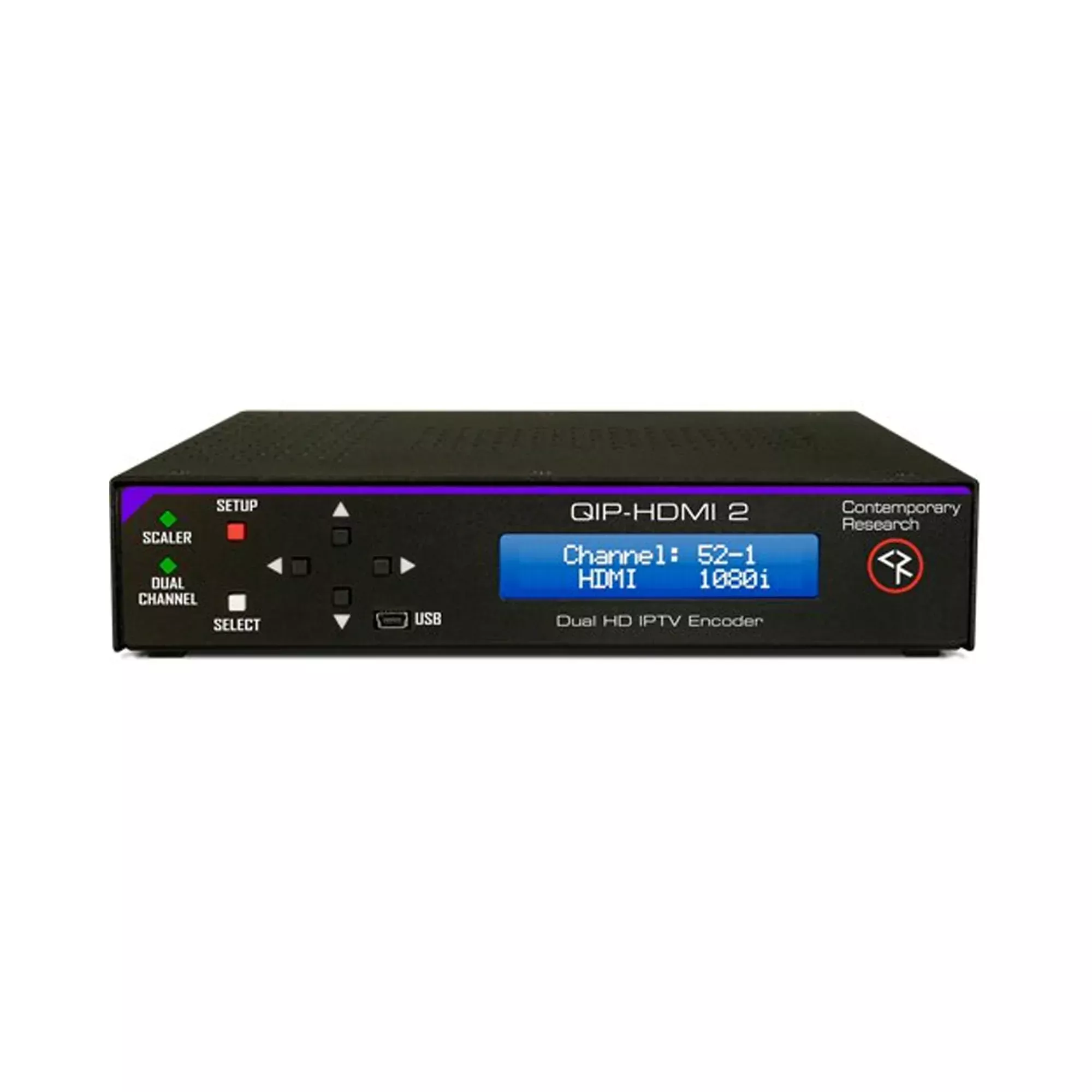

Thedual-program QIP-HDMI 2, with two HDMI inputs, sets a new standard for sports,motion and digital signage encoding. Dual hardware scalers accept content up to1080p, shapes digital signage for edge-to-edge presentation, and compensatesfor non-broadcast and PAL refresh rates. Encoding as MPEG2 or H.264, theQIP-HDMI 2 can output the content as two SPST Multicast or Unicast IPTVstreams. Options include dual-language SAP audio, easy front-panel setup andalternate audio and NTSC video inputs. Web setup, monitoring, and firmwareupdates are available via USB and Ethernet ports. Two-across mounting offers upto four programs per rack space, with the ability to mix models to handle HDMI,SDI, and NTSC video sources.
Key Features
- Sources
- Two HDMIinputs (non-HDCP), 480p to 1080p, embedded PCM audio, pass-through AC-3
- TwoComposite/CC video inputs for encoding, captioning, or EAS use
- Two analogStereo and two SPDIF coax audio inputs
- Encoding
- Creates upto two high-definition IPTV streams, encoded as H.264 or MPEG2
- Convertsstereo and PCM to AC3, AAC, or MP12, passes through AC-3
- Can createSAP dual-language audio for each program
- Accepts608/708 embedded captioning or Line 21 captioning from composite video inputs
- Dualhardware scalers accept up to1080p 3G video, including 60/30 Hz, and PALformats, and can deliver programs at a scaled or native resolution
- Dual-programoperation is standard
- Operation
- Sets up withfront-panel buttons and easy to use menus, including inputs, encoding, channel,and RF options.
- Onboard Webpage for setup and monitoring, also accessible from front-panel USB port – anEthernet connection is not required
- Updatesfirmware via USB and Ethernet
- Fan cooled,with adjustable speed
- Saves powerand rack space using efficient design
- Includescompact switching power supply
- Mounts inoptional 1RU single (RK1) or dual (RK2EZ) 19” rack kits
- Meets RoHSsafety and California energy standards
- Firmware Updates
- Firmware isupdated using CR Toolbox
- Click theDownloads tab to view the link to download CR Toolbox
- Updates tothe QMOD/QIP can be made through the rear panel Ethernet port or the frontpanel USB port
- Whenlaunched, CR Toolbox will check for newer firmware versions
TechnicalSpecifications
Physical
8.5” wide x 1.73” height (1RU) x 6.0” deep
1.5 lbs
+32 to 122F operating temperature
Rackmounting for one or two units side-by-side optional (RK1, RK2EZ)
For HRFHalf-Racks, use the RK2EZ kit to mount each tuner
Fan cooled,with variable speed
Scaling
Dualhardware scalers
Accepts1080p – 480i and common PC graphics resolutions, 29.97 – 60 Hz US and PALrefresh rates
Edge to edgepresentation with zoom, shrink and X/Y axis positioning
Auto-sync orscales to fixed output resolution
Encoding
H.264 orMPEG2 for HD, MP@ML for SD, 1080i, 720p, 576i, 480p, and 480i output resolution
MPEG 2 VideoEncoding bitrate 10-20 Mbps, HD, 4-8 Mps 480i, or variable bitrate
H.264 VideoEncoding bitrate 5-10 Mbps, HD, 2-4 Mps 480i, or variable bitrate
PCM oranalog audio outputs MPEG1 Layer2 or AAC
Pass-throughAC-3 audio
Front Panel
Select anddirectional buttons for menu setup
Menu LCD,Blue with 2 lines of 20 white characters each
Back Panel
Power: 2.1mmcoaxial jack (inside center conductor positive)
1.1Amaximum, 11.5 to 13.5 VDC, 12 VDC typical
EAS: 3 GPIPins for latching control, SW(NO) for closure, V+ 5-12 VDC, Ground
Ethernet:RJ-45 GigE Ethernet connector for IP control, updates, Unicast/Multicast IPTVand internal Web page
HDMI: Two(non-HDCP), up to 1080p, embedded PCM and AC-3 audio
CompositeVideo/CC Inputs: RCA female NTSC/PAL (480i/576i), 29.97 Hz, supplies line 21Captioning
AudioInputs: Two coax SPDIF digital audio inputs
Analog L andR: 2 stereo mini jacks
Inputsassignable to video inputs
Includes
PS12-2Switching power supply, 2A 12 VDC, standard AC cord for power strips
RKU,Universal Rack Mount Kit
Option toinclude PS12-8Y power supply with every3-4 modulators when ordered in lieu of PS12-2 Power Supply
Optional:
RK1 SingleRack Kit
RK2EZ DualRack Kit (Can be used for HRM half-rack mounting as well)
PS12-8-4Y 8A12V power supply with 4-way splitter to drive up to 4 QIP or QMOD encoders
