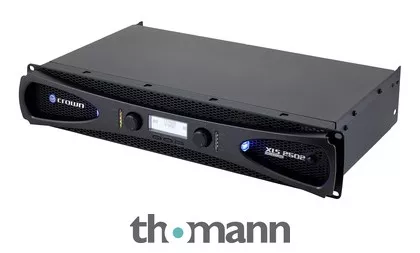

DriveCore Power amplifier
- With Class-D circuit
- Amplifier modes: 2-channel stereo, mono bridged or Y mode
- Power: 2x 1200 W / 2 Ohm, 2x 775 W / 4 Ohm, 2x 440 W / 8 Ohm, bridged 1x 2400 W / 4 Ohm, bridged 1x 1550 W / 8 Ohm
- 24 dB Linkwitz-Riley crossover
- Input sensitivity 1.4 or 0,775 V
- Large front display for easy operation
- Black-Out mode automatically switches off the display
- Lock-Out mode against incorrect operation
- Remote power for remotely turning on and off
- PeakX limiter per channel
- Quiet, temperature controlled fan
- Robust metal chassis
- 5 status LEDs per channel
- Connections: XLR, jack and RCA inputs, 2x Speaker Twist and screw outputs
- Body shape: 19″ / 2U
- Installation depth: 27.2 cm
- Weight: 4.9 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2015
- Item number372527
- Sales Unit1 piece(s)
- Power (4 Ohms) per Channel 775 W
- Channels 2
- Rack Units 2 U
- Amp Class Class D
- 2 Ohm stable Yes
- DSP/Crossover Yes
- Convection cooling No
- Width483 mm
- Depth in mm272 mm
- Height89 mm
- Weight4,9 kg
- Bridged ModeYes
- Input XLRYes
- RCA InputYes
- Jack Input 6,3 sym.Yes
- Parallel InputYes
- Link Out6,3 mm unsym.
- Output Speaker TwistYes
- Output Binding PostYes
