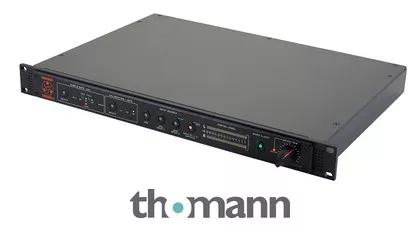

DA Converter
- Audiophile conversion
- Five digital input formats: USB, AES, SPDIF, ADAT, Optical SPDIF (Toslink)
- Sampling frequencies from 44.1 to 192 kHz with automatic detection
- High Definition Stereo Reference Monitoring
- Extremely low jitter clock
- USB input for direct DAW connection
- USB digital pass through: When switched to USB, the otherwise unused USB input is fed from the AES-2 input
- Compatible with ST/SR monitor for remote switching
- Precise level display (peak meter), as also used in the Dangerous Master
- Loop through the digital input for external level display
Specifications:
- A-weighted signal-to-noise ratio (20 – 20k Hz): <114 dB
- Unweighted signal-to-noise ratio (20 – 20k Hz): <113 dB
- Dynamic range A-weighted (20 – 20k Hz): <114 dB
- Dynamic range, unweighted (20 – 20k Hz): <113 dB
- Total harmonic distortion (1 kHz unweighted, 20 – 20k Hz, +4 dBu out): <94.5 dB (0.00188%)
- Total harmonic distortion (1 kHz unweighted, 20 – 20k Hz, +22 dBu out): <106.5 dB (0.00048%)
- Frequency response (96 kHz sample rate): DC to 20 kHz: +0 / -0.25 dB, DC to 30 kHz: +0 / -0.5 dB, DC to 40 kHz: +0 / -1.0 dB
- Jitter: 16ps (100 Hz to 40 kHz), 18ps (100 Hz to 1 MHz)
- Crosstalk attenuation (at 1 kHz):> 114 dBu
- Format: 19″ / 1 U
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJuly 2015
- Item number368417
- Sales Unit1 piece(s)
- Number Of Monitoring Outputs (Stereo) 2
- Headphone connection 0
- Talkback Function No
- Built-in AD / DA converter Yes
- Incl. Remote control No
- Level Meter Yes
- Number of 2 track inputs 0
- Summing Function No
- Design 19″ / 1U
- Amount Of Channels2
- DA ConversionYes
- Max. Resolution Rate in Bits24 bit
- Max. Sampling Rate in kHz192 kHz
- S/PDIF ConnecorYes
- AES/EBU ConnectorYes
- ADATYes
- Word clockYes
- Number of analog inputs0
- Number of Analog Outputs2
- Special FeaturesDigital Input Pass Thru
