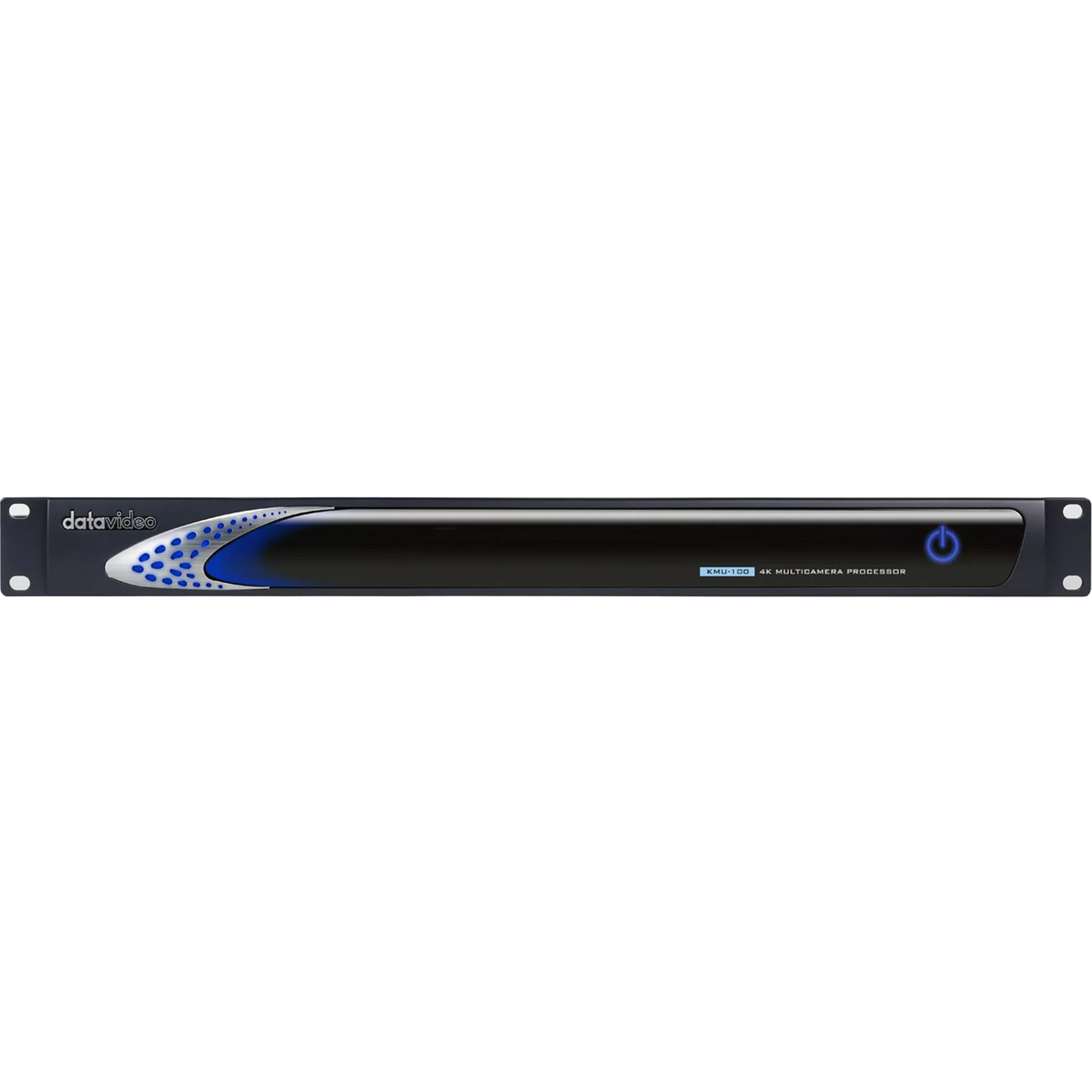

Datavideo KMU-100 4K Multi-Camera Processor
Supportsconversion from two 4K SDI or HDMI inputs to eight 3G-SDI video outputs, giving
users morelive video switching choices.
8 channel switcher to switch betweencutouts
Can view two4K video channels at the same time on the multiview monitor as well as othercropped 4K video images in smaller windows for easier video switching.
Create speed sensitive motion paths
Real-timelens movement can be simulated by the cutouts selected from the 4K camera, thusadding more varieties of motions to your video.
Control through RMC-185 hardware controller
Allows userto easily pan, tilt, and zoom to create the user-defined windows on the 4Ksignal.
TechnicalSpecifications
Video Input
2 sets ofSDI Input:
each set of4x SDI
1 x 3Gb/s or12Gb/s SD/HD/4K. Supports single link 4:2:2
3 x 3Gb/sSD/HD/4K. Supports single link, dual link, and quad link 4:2:2
2 x HDMI Input:
each of HDMIsupport for Ultra HD 4K 60p in 4:2:0/4:2:2
Supported Video Input Resolution
3840x2160p23.98/24/25/29.97/30/50/59.94/60
1080p23.98/24/25/29.97/30
1080i50/59.94/60
1080PsF23.98/24/25/29.97/30
720p50/59.94/60
Video Output
2 sets of SDIoutput:
each set of4x SDI
1 x 3Gb/s or12Gb/s SD/HD/4K. Supports single link 4:2:2
3 x 3Gb/sSD/HD/4K. Supports single link, dual link, and quad link 4:2:2
Support Video Output Resolution
1080p25/29.97/30/50/59.94/60
1080i50/59.94/60
720p50/59.94/60
625/50i PAL,525/59.94i NTSC
Multiview Out
HDMI 1.4 x2
Multiview Mode
Preview,Motion, Quad
Audio Input
SDI: 16 Chembedded in HD/4K. 8 Ch embedded in SD
HDMI: 8 Chembedde in SD, HD and Ultra HD 4K
Audio Output
SDI: 16 Chembedded in HD/4K. 8 Ch embedded in SD
HDMI: 8 Chembedded in SD, HD and Ultra HD 4K
Audio Sampling
Televisionstandard sample rate of 48 kHz at 24-bit
Reference Input
Blackburst,Tri-level
Control Interface
EthernetRJ45 for control, configuration and updates
RS-232 x 1input for controlling configuration
RS-422 x 1input with external keyboard support
GPIO x1
Controller
RMC-185/RMC-185+
Dimension (LxWxH)
484 x 192 x49 mm
Weight
3.2 kg
Power Supply
DC 12V, 5A
Operating Temp. Range
0~40 C
What’s in the box
1 x KMU-100Main Unit
1 x ADSwitch DC 12V with AC Cord
4 x Screw
1 x ThankYou Card
