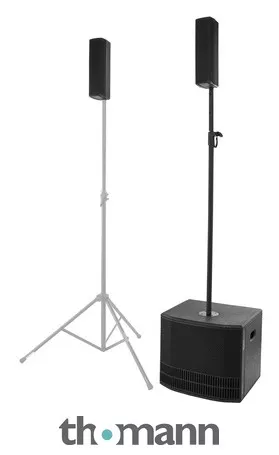

Compact Active Speaker System
- Flexibly applicable
- Integrated 3-channel digital amplifier with 1000 W power
- Used both as a traditional stereo system with a subwoofer and two satellites, as well as a powerful mono system by means of a mechanical connection of the two satellites
- With two coupled ES503 systems usable as powerful stereo sound system
- Suitable cover for the subwoofer: Article Nr 373941, suitable cover for the top: Article Nr 373942 (both not included)
ES503 Sub:
- Equipped with: 12″ Woofer with 2″ voice coil
- Extensive input section with high-resolution OLED display for easy operation
- Integrated 3-channel mixer and Bluetooth receiver for audio streaming
- Subwoofer Digipro G3 digital amp with 1000 W/PRG
- OLED Display plus rotary push button encoder
- 3x Mic line inputs with XLR / TRS combo jack
- Bluetooth stereo receiver for audio streaming
- Presets for stereo, mono and dual mono setup
- Digital 4 channel mixer section
- Mini-USB port for service and updates
- XLR Output for mix or AUX output
- 2x Speaker Twist connections for Mid-High tops
- Bass reflex design
- 15 mm Plywood housing
- Two handles
- M20 Thread
- Dimensions: 465 x 400 x 430 mm
- Weight: 16.4 kg
ES503 TOP A/B:
- Equipped with: 4×3″ Neodymium full range speaker
- Phase-Plugs and mechanical assembly optimizing acoustic properties
- Plastic housing incl. 25 mm support holder
- Electrical and mechanical connections for coupling two ES503-Tops
Including:
- 1x ES503 Top A
- 1x ES503 Top B
- 1x ES503 Sub
- 1x Divisible spacer bar 25 mm
- 1x Speaker Twist cable 2 m
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJuly 2015
- Item number367435
- Sales Unit1 piece(s)
- more than 150 people Yes
- more than 300 people No
- Incl. Mixer No
- Incl. Subwoofer Yes
- Active Speaker Yes
- Line Array / Column Yes
- Width465 mm
- Depth430 mm
- Satellite Speaker SystemYes
- Weight18,3 kg
- Sub Woofer1×12
- Speakers (Row)8×3
- Midrange Driver4x 3″
- Woofer size1x 12″
- Power (Manufacturer Info)1000 W
- Inputs simultaneously3
- Mic Preamp1
- Line OutXLR
- Bluetooth PlayYes
- ColourBlack
- Cover373941, 373942
