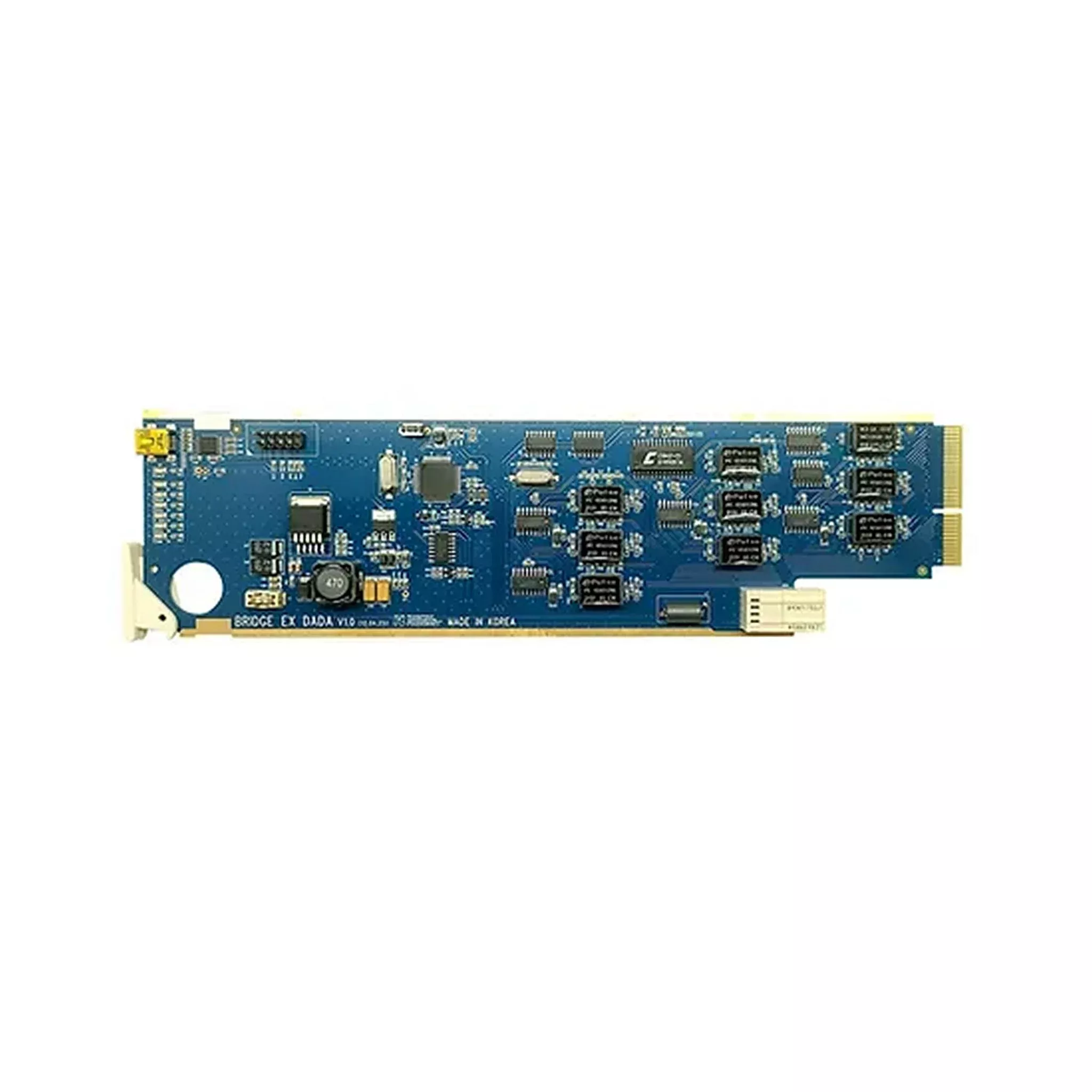

Digital Forecast Bridge EX DADA AES/EBU Digital Audio Distribution Amplifier
Satisfied the signal standard SMPTE276M, AES-3id of (1995), AES / EBU Digital Audio Distribution Amplifier is me amplified distributed to the AES / EBU signal of eight output receives the AES / EBU signal of 110 or 75. BRIDGE EX DADA has a built-in circuit Reclocking and Equalizing circuit, (selected according to the Rear B / D signal Impedence is) can be installed in the input distance 600m (75), 300m of (110) or less.
Key Features
- Supports SMPTE276M, AES3id (1995)
- Up to 8 Reclocked outputs
- 75 or 110 In/Output
- Input Present and sample rate auto detect
- Automatic equalization up to 600m (75), 300m (110)
- Aeecpts 32kHz, 44.1kHz, 48kHz sampling rate
- Supports Auto/Manual cable equalization
