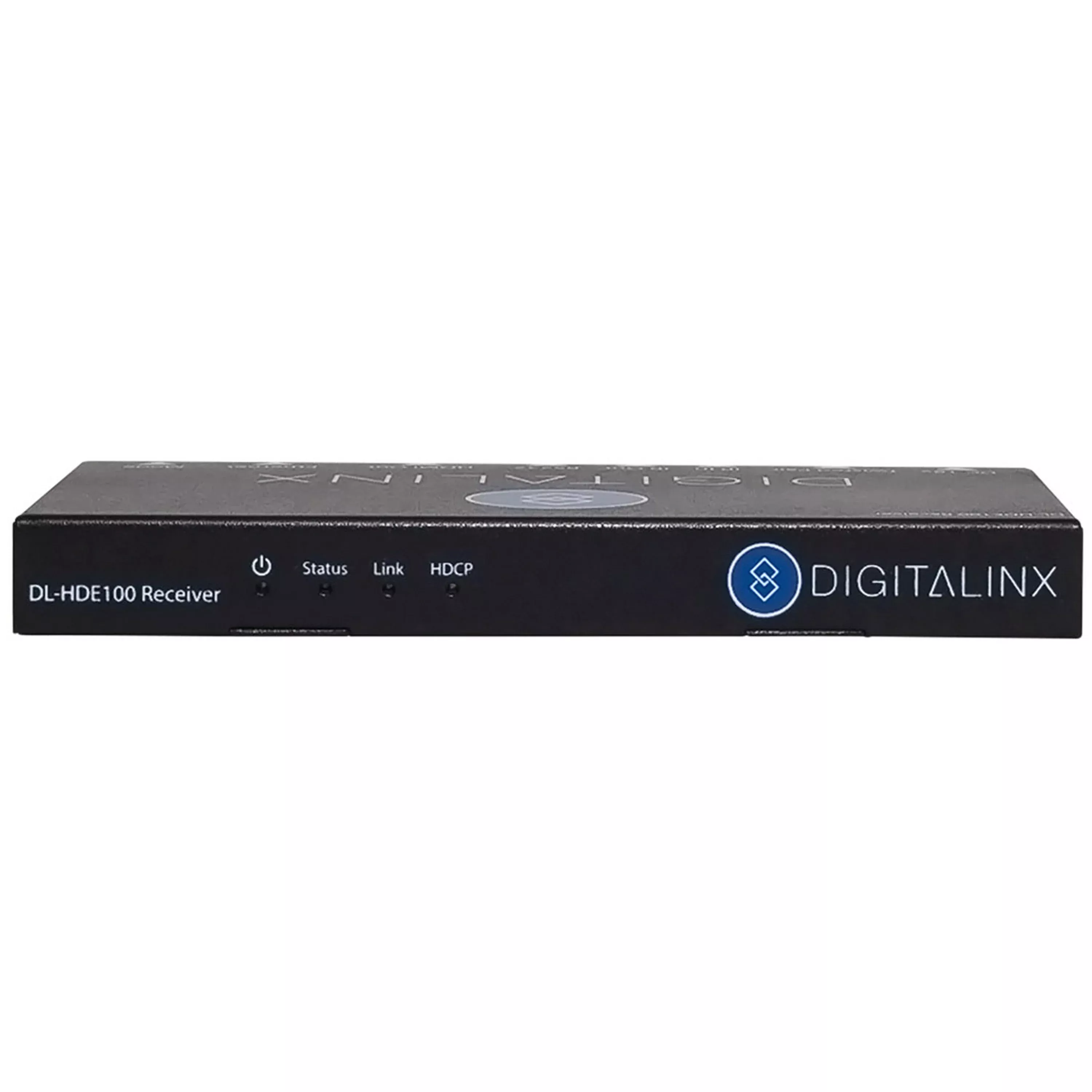

DigitaLinx DL-HDE100 HDMI Over Twisted Pair Set
DL-HDE100 is a Black HDMI over Twisted Pair Set with power, control and Ethernet.
Key Features
- HDMI transmission up to 330 feet (100m)
- 1080p, 4Kx2K (UHD) & 3D compatible
- CEC supported
- Built-in surge protection
- Diagnostic LEDs
- HDCP 2.2 compliant
- Bidirectional Wideband IR and RS232 pass-through
- 100-BaseT Ethernet pass-through
- Flexible power design (use power supply at TX or RX)
- Locking Power Connector
Technical Specifications
Maximum Distance: 100m
Bandwidth: 10.2 Gbps
Gain: 0 dB – 10 dB at 100 MHz
Enclosure: Painted Steel
Dimensions: 5.31 x 2.91 x 0.59 in
Shipping Weight: 1.8 lbs
