DigitaLinx DL-UHDILC In-Line HDMI Auto Sensing Room Controller

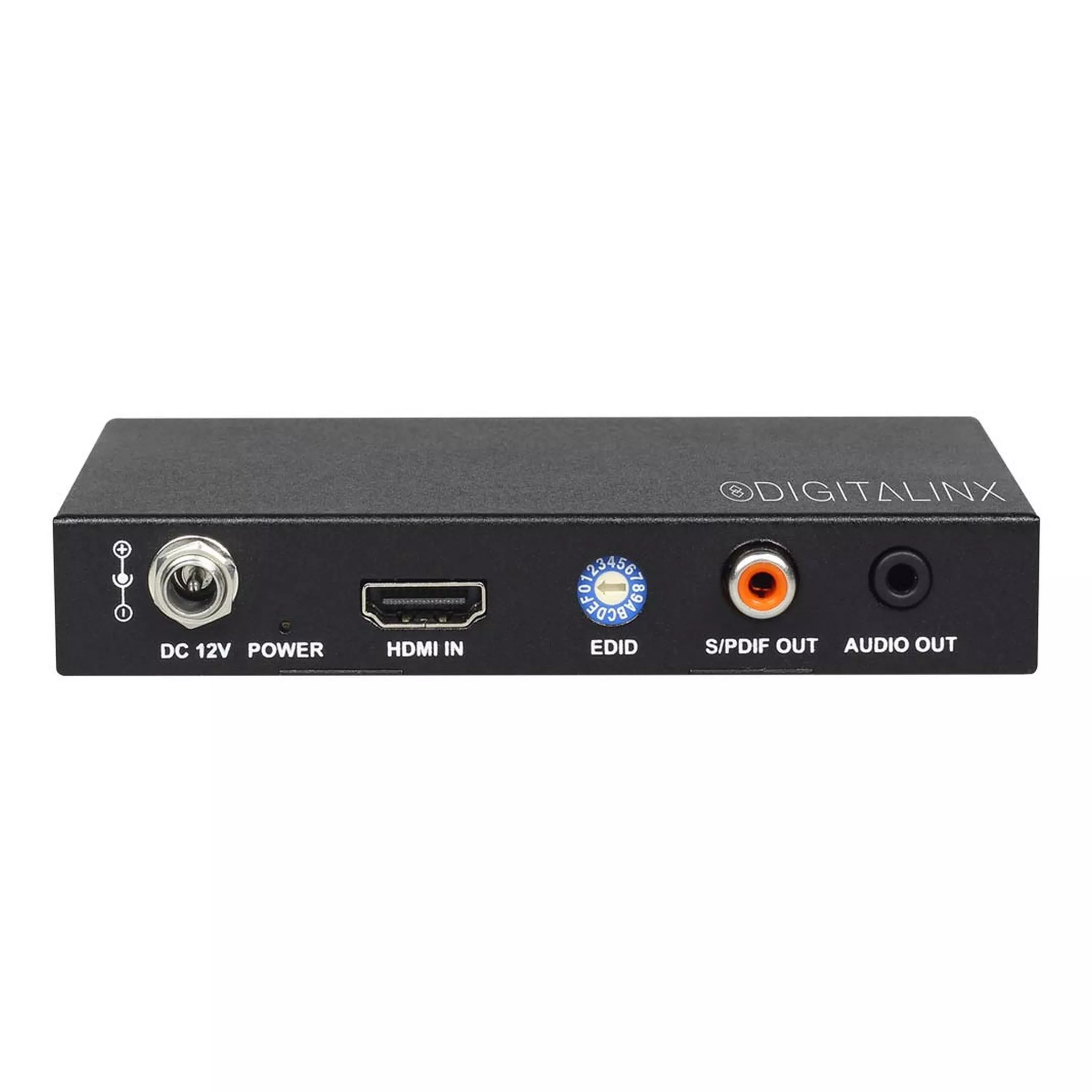

The DigitaLinx DL-UHDILC is an HDMI in-line controller that can automate room peripherals and sink devices when a video signal is introduced to the unit. The DL-UHDILC is 4K compatible, supports HDCP version 2.2, has an analog and digital de-embedded audio output and has 15 built in EDID presets that can be adjusted by the rotary dial on the front panel.
When the DL-UHDILC auto-detects an input video signal, the DL-UHDILC will automatically turn a display or projector on either by CEC or by pre-loaded RS232 serial commands. The DL-UHDILC will trigger the first relay port to switch a projector screen or window shade down. When a video signal is no longer present after a specified amount of time, the DL-UHDILC will turn off the display or projector by either CEC or pre-loaded RS232 commands and will trigger the second relay port to switch a projector screen or window shade up.
Key Features
- Stand alone unit
- Automates room peripherals when video signal is introduced to system
- Passes HDMI signals up to 18G 4K60 4:4:4
- Built in CEC controller from HDMI out.
- Built in RS232 controller to control display device
- Built in RELAY control for room peripherals such as projector screen or window shade
- De-embeds audio to coax S/PDIF or Stereo
- Switch for EDID Management with 15 EDID presets
Technical Specifications
VIDEO
Video Inputs: (1) HDMI
Video Input Connector: (1) HDMI type A
Video Output: (1) HDMI
Video Output Connector: (1) HDMI type A
Maximum Pixel Clock: 600Mhz
Output Resolution Support:
4096×2160; 3840×2160; 1920×1200; 1920×1080; 1680×1050; 1600×1200; 1600×900; 1440×900; 1400×1050; 1366×768; 1360×768; 1280×1024; 1280×960; 1280×800; 1280×768; 1024×768; 800×600
Standards: Compliant with HDMI 1.4 & HDCP2.2
AUDIO
Audio Output: (1) S/PDIF, (1) Analog
Audio Output Connector: (1) RCA, (1) Stereo 3.5mm
Frequency Response: 20Hz~20K Hz
CONTROL
Control Port: (2) RELAY, (1) RS232
Control Connector: (2) 3 pin phoenix connector (RELAY), (1) 3 pin phoenix connector (RS232)
