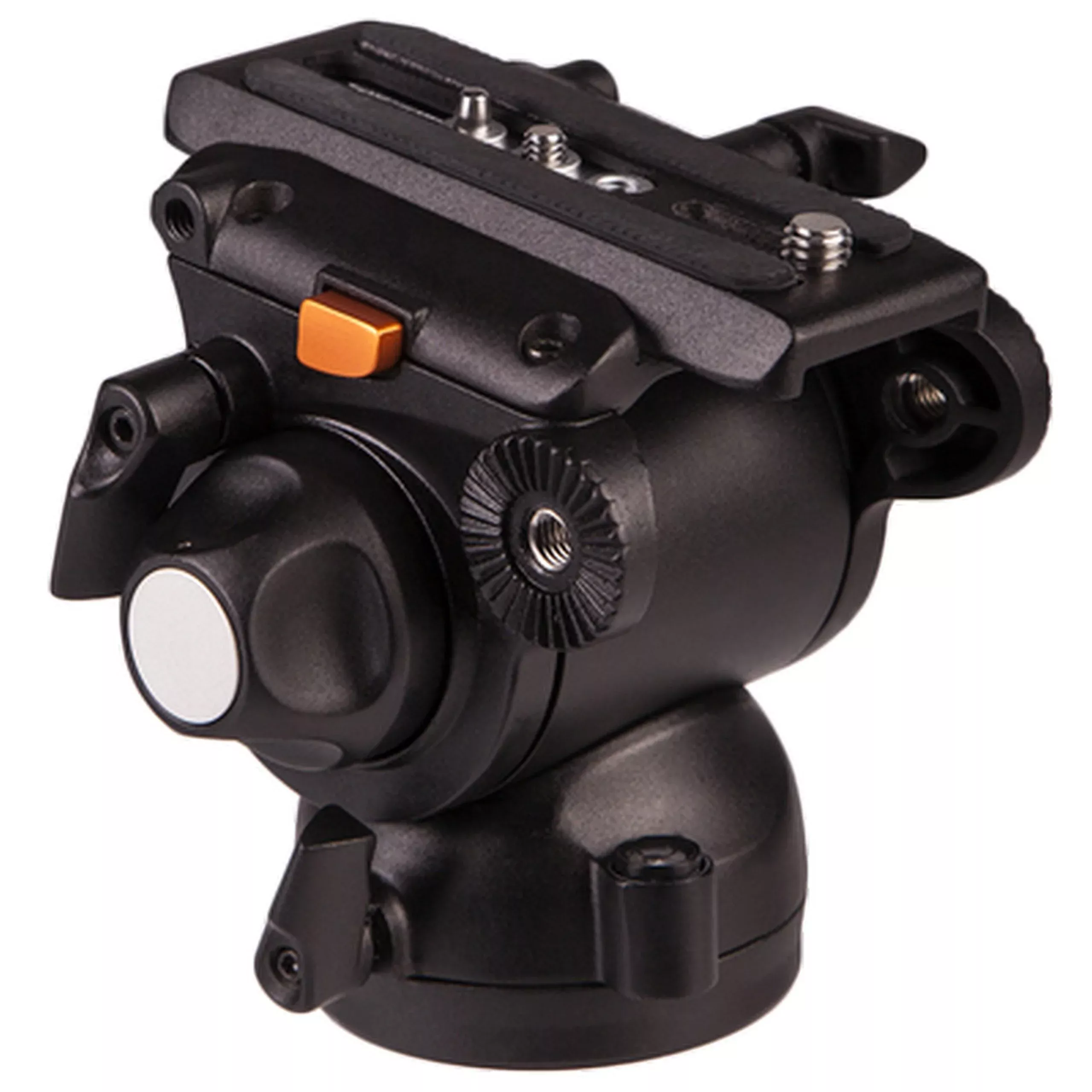

E-Image GH03F Flat Base Pro Fluid Video Head
The GH03F Flat Base Pro Fluid Video Head is an affordabletool for tripods sliders, jib arms or anywhere you need smooth cinematiccontrol for camcorders, micro 4/3 and DSLR cameras up to 11lbs. The sturdy all metal head employs adjustablefriction torque plates to increase drag to match your cameras weight and offerfluid pans and tilts. Unlike other quick release systems which require theplate to slide in from the rear of the head, the Easy-Lock Base Plate Systemallows you to attach the camera plate from the top . Machined on the left sideof the head a ”-20 socket allows you to mount monitors, drives, andaccessories off of the camera.
Key Features
- Payload Range 11 lbs
- Flat Base with 3/8” Thread
- Variable grades of drag
- Fixed Counter Balance
- 1/4” 20 Threaded Accessory Socket for Monitor Arm
- Separate Pan/ Tilt Locks
- Easy-Lock Camera Plate System
- Sliding Base Plate with Safety Lock and RetractableRegistration Pin
- Spirit Level
- Dual Sided Pan/Tilt arm Rosettes (one included)
- All Metal Construction
Technical Specifications
Base
Base Diameter: 72MM
Bowl Size
75mm Flat Head
Brand
E-Image
Bubble Level
Yes
Counterbalance System
Fixed Fluid
Head Payload Capacity
11lbs – 5kg
Pan Handle Style
Fixed length 355mm
Payload
11lbs – 5kg
Tilt Drag Settings
Variable Friction Tilt
Tilt Lock
Thumb Lock
Tilt Range
-60 degrees – 90 degrees
UPC Code
847983012091
What’s Included
GP1 Base Plate
GH03F Head
GB1 Pan Handle
