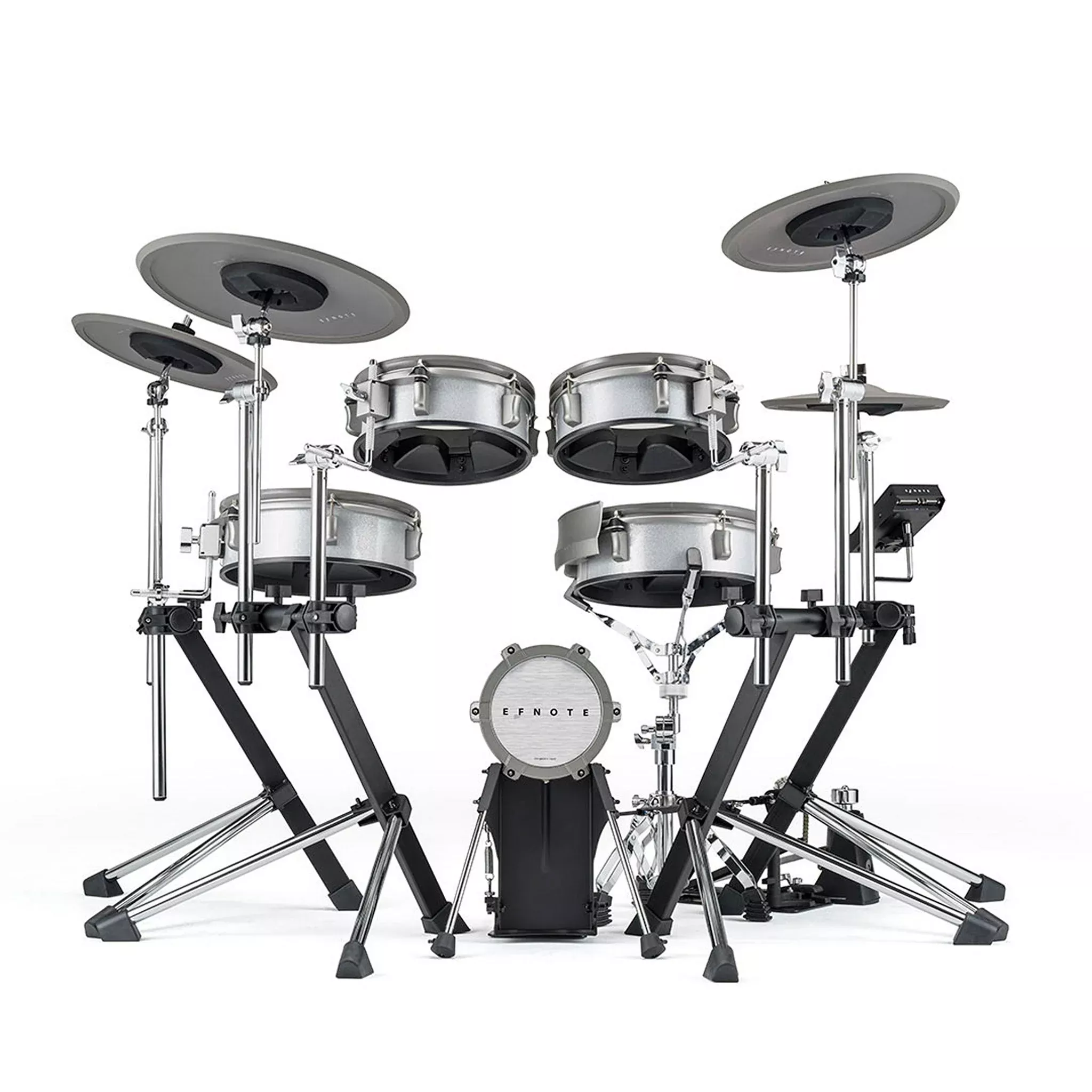

The EFNOTE 3 Acoustic DesignedElectronic Drum Set is an innovative electronic drum that deliverstop-of-the-line technology and sound quality. With eight separate channels ofUSB Audio and 16 CH USB MIDI, it’s designed to give drummers the best possibleexperience. It is the only kit in its price range that offers all of thesefeatures:
3-zone cymbals with 360°playing/choke zones
3-zone snare with dedicated siderim and 2-zone toms
Super smooth optical sensed hi-hat
Beyond Average Playability
What sets EFNOTE 3 apart is itsplayability, which is equivalent to the top series. With multi-sensor pads and360° cymbals, you can expect a high-resolution and hotspotless sound. Theinnovative Tru-Motion™ hi-hat pedal and independent stands make it easy tocustomize your setup. Plus, it has an aesthetic design that goes beyond thebasic model.
All-Around Capability
EFNOTE 3 is a versatile drum kitthat supports a wide range of music genres. It is EFNOTE certified for soundquality with full stereo drum/cymbal sounds. It also supports USB Audio/MIDI,Bluetooth, and Remote App. The touch screen interface makes it easy to use, andit has flexible pad expandability.
Monocoque Drum Shells
EFNOTE 3 features 10 x 3.5″and 12 x 4″, 6 lugs, 2ply mesh drum heads with Monocoque FRP shell forstiffness and durability. The multi-sensor ensures hotspotless andhigh-resolution sounding.
Independent Side-Rim
The independent side-rim is easy,intuitive, and reliable with no switch operation required. It has an elegantarc design.
Suspended Tom Mount
EFNOTE 3’s suspended tom mountdelivers a softer striking feel and less rebound. It also has anti-crosstalkvibration.
Comfy Strike-Feel Kick
EFNOTE 3’s kick has a low reboundfabric head and an angle-adjustable kick pedal attachment. It also has stablemulti-sensing for single/double beater(s) and rugged spars with rubber/spiketips.
3-Zone 360° Cymbals
EFNOTE 3’s 3-zone 360° cymbalsinclude 2x 14″ crash cymbal and 1x 16″ ride cymbal with amulti-sensored 360° play/choke area. It also has a 360° free-swinging designand a responsive thin edge. The elegant warm-gray surface with fine engravingsand clean silicone rubber surface resists drumstick marks.
Tru-Motion™ Hi-Hat Pedal
EFNOTE 3’s Tru-Motion™ hi-hatpedal features inertia weight simulation technology, precision optical sensing,open-close stroke gap adjustment, spring tension adjustment, and a dedicatednon-skid rubber grip.
λ (Lambda) Tripods
EFNOTE 3’s λ (Lambda) Tripodsprovide easy and flexible setup with an independent rack stand design. It alsohas stable metal tripod stands.
Ultra-Compact Sound Module
EFNOTE 3’s ultra-compact soundmodule has an ultra-small form factor with uncompromised features. It has ametal chassis and aluminum finish, high-quality DAC and audio circuit, highpower headphone amplifier, and a touch screen intuitive user interface.
ELISE™ Sensing Processor
EFNOTE 3’s ELISE™ SensingProcessor captures drummer’s intentions from each stroke with low latency, widedynamic-range, consistent and stable sensing. It is optimized for EFNOTEmulti-sensor drum/cymbal/hi-hat pads.
Full-Scale Acoustic Sound
EFNOTE 3’s full-scale acousticsound has full stereo acoustic drum/cymbal samples recorded by EFNOTE. Tru-Aco™sound technology provides real drum/cymbal sound behaviors. The raw soundwithout resynthesis is perfect for training.
For Training
EFNOTE 3’s multi-functionmetronome has a beat LED indicator and a built-in metronome speaker for dailytraining without headphones. It also has an on-board drum recording function(15 tracks), a stroke analyzer, and a rhythm box feature that provides over 90basic drum beats.
For Recording
EFNOTE 3 supports USB 8-chindividual audio outputs with Mac / Windows (ASIO), USB 2-ch audio inputs forplayback, analog 4-ch audio outputs, USB MIDI in/out with individual MIDIchannels, and MIDI output (5-pin DIN).
For Small Gigs
EFNOTE 3’s setlist feature enablesyou to configure kit order with tempo for each song. Kick and snare can beoutput individually with analog 4-ch outputs, and click and audio-in can beassigned only for headphones. It also has a high-power headphones output andMIDI output (5-pin DIN).
Stroke Analyzer
EFNOTE 3’s “StrokeScope” displays your strike points on a time-line and “AccuracyScore” estimates your strike accuracy.
Sound Edit
EFNOTE 3’s sound edit featureincludes tuning, muffling, and 2-band EQs for each pad. The pad layer functioncan overlay two sounds, and the user inst library enables you to store 128customized instruments. It also has an on-board reverb and a dedicated levelcontrol screen.
Flexible Audio Routing
EFNOTE 3’s flexible audio routinghas 10-ch output buses, flexible output routing for each pad, output assignableclick, output: 4-ch analog / 8-ch USB, and input: analog / Bluetooth / 2-chUSB.
Bluetooth®
EFNOTE 3’s Bluetooth audio-inprovides you to play along with Spotify™ / YouTube™ with your smartphone. Italso has Bluetooth MIDI and EFNOTE Tools App for control remotely.
Technical Specifications
Drum / Cymbal Pads
Kick: EFD-K08P
Size: 8 x 3″
Finish: White sparkle
Zone: Head
Sensor: Multi
Head: Comfy strike-feel fabric
Connector: Head (TRS Phones)
Features: Angle-adjustable kickpedal attachment
Snare: EFD-S12P
Size: 12 x 4″
Finish: White sparkle
Zone: Head / Rim / Side-Rim
Sensor: Multi
Head: Double-layered mesh
Connector: Head/Rim, Side-Rim (2xTRS Phones)
Features: Monocoque drum shell,Colored hoop rubber, Side-Rim
Tom 1 / 2: EFD-T10P
Size: 10 x 3.5″
Finish: White sparkle
Zone: Head / Rim
Sensor: Multi
Head: Double-layered mesh
Connector: Head/Rim (TRS Phones)
Features: Monocoque drum shell,Colored hoop rubber, Suspended tom mount
Tom 3: EFD-T12P
Size: 12 x 4″
Finish: White sparkle
Zone: Head / Rim
Sensor: Multi
Head: Double-layered mesh
Connector: Head/Rim (TRS Phones)
Features: Monocoque drum shell,Colored hoop rubber, Suspended tom mount
Hi-Hat: EFD-C12
Size: 12″ (Single cymbal)
Color: Warm gray
Zone: Bow / Edge / Cup
Sensor: Multi (360° flat sensing +choke)
Connector: Bow/Edge, Cup (2x TRSPhones)
Features: Weight simulation, Fineengraved surface
EFNOTE 3 sound module does notsupport hi-hat cup zone.
Hi-Hat Pedal: EFD-HC3
Sensor: Optical
Adjustment: Spring tension,Open-Close stroke gap
Connector: 6-pin
Features: Inertia weightsimulation, Tru-motion™ hi-hat
Crash 1 / 2: EFD-C14
Size: 14″
Color: Warm gray
Zone: Bow / Edge / Cup
Sensor: Multi (360° flat sensing +choke)
Connector: Bow/Edge, Cup (2x TRSPhones)
Features: Weight simulation, Fineengraved surface
Ride: EFD-C16
Size: 16″
Color: Warm gray
Zone: Bow / Edge / Cup
Sensor: Multi (360° flat sensing +choke)
Connector: Bow/Edge, Cup (2x TRSPhones)
Features: Weight simulation, Fineengraved surface
Sound Module: EFD-3
Trigger Interface
3-Zone: Snare, Crash 1/2*, Ride
2-Zone: Tom 1/2/3/4, HH, Crash 3
1-Zone: Kick
Crash 1/2 support 3-zone withusing Tom 4/Crash 3 cables.
Audio / MIDI Interface
Line (1/2) Output: 2x TS Phone(+4dBu, Unbalanced)
Phones (3/4) Output: StereoMini-Phone (320 mW + 320 mW @32Ω)
Audio Input: Stereo Mini-Phone(+2dBu Max)
USB: Micro-B Type USB 2.0 Hi-Speed
Audio: 8-ch Out (48kHz/24bit) /2-ch In (48kHz/16bit), Mac/Windows ASIO
MIDI: In/Out
Bluetooth Audio Input
Bluetooth MIDI In/Out
MIDI Out: 5-pin DIN
Drum Kits / Instruments
Preset Drum Kits: 16 (Editable)
User Drum Kits: 34
Instruments: AcousticDrums/Cymbals (Stereo), Percussion (Stereo), eKick/eSnare, Attack Elements
User Inst Library: 50 (Can bestored customized instruments)
Edit Parameters
Level, Pan, Tuning, Muffling (foreach pad)
2-Band EQ (for each pad)
Ambience Effect (8 types)
Pad Layer
Dimensions
106 (W) x 172 (D) x 47 (H) mm
700g
Excluding protrusions
Power
DC 12V, 500mA (Nominal) / 800mA(Max)
Tripods / Stands
Tripods
4x Lambda Tripod
Snare Drum Stand
For 12″ to 14″ diametersnare drums
Geared basket tilter
Double braced legs
Tube diameter: 19.1 mm (3/4″)
Height adjustment range: 500 –650 mm
Tom Holder
3x Tom Holder Arm
Geared L-rod tilter
Knurled carbon steel rod
L-rod diameter: 11.5 mm (7/16″)
Tube diameter: 22.2 mm (7/8″)
Height adjustment range: 550 –900 mm
Hi-Hat Cymbal Arm
1x Boom Hi-Hat Cymbal Arm
Cable holder
Tube diameter: 22.2 mm (7/8″)
Boom length: 250 mm
Height adjustment range: 550 –1000 mm
Cymbal Arm
3x Boom Cymbal Arm
Gearless tilter
Cable holder
Tube diameter: 22.2 mm (7/8″)
Boom length: 300 mm
Height adjustment range: 650 –1250 mm
Sound Module Arm
1x Sound Module Arm
1x Smartphone Tray
Drum Kit Placement
Placement Size
Approx. 160 (W) x 90 (D) cm
Approx. 5.3 (W) x 3.0 (D) feet
Without drum throne
Included
Sound Module 1x
8” Kick Pad 1x
12” Snare Pad with Side-Rim 1x
10” Tom Pad 2x
12” Tom Pad 1x
12” Standard Cymbal for Hi-Hat1x
14” Standard Cymbal for Crash 2x
16” Standard Cymbal for Ride 1x
Hi-Hat Control Pedal 1x
Smartphone Tray 1x
Tripod Set 4x
Snare Stand 1x
Module Mount 1x
Multi-A3 Cable 1x
Multi-B Cable 1x
Trigger Cable 4x
AC Adapter 1x
Beater Patch 1x
Tuning Key 1x
Cable Tie 10x
Quickstart Guide 1x
