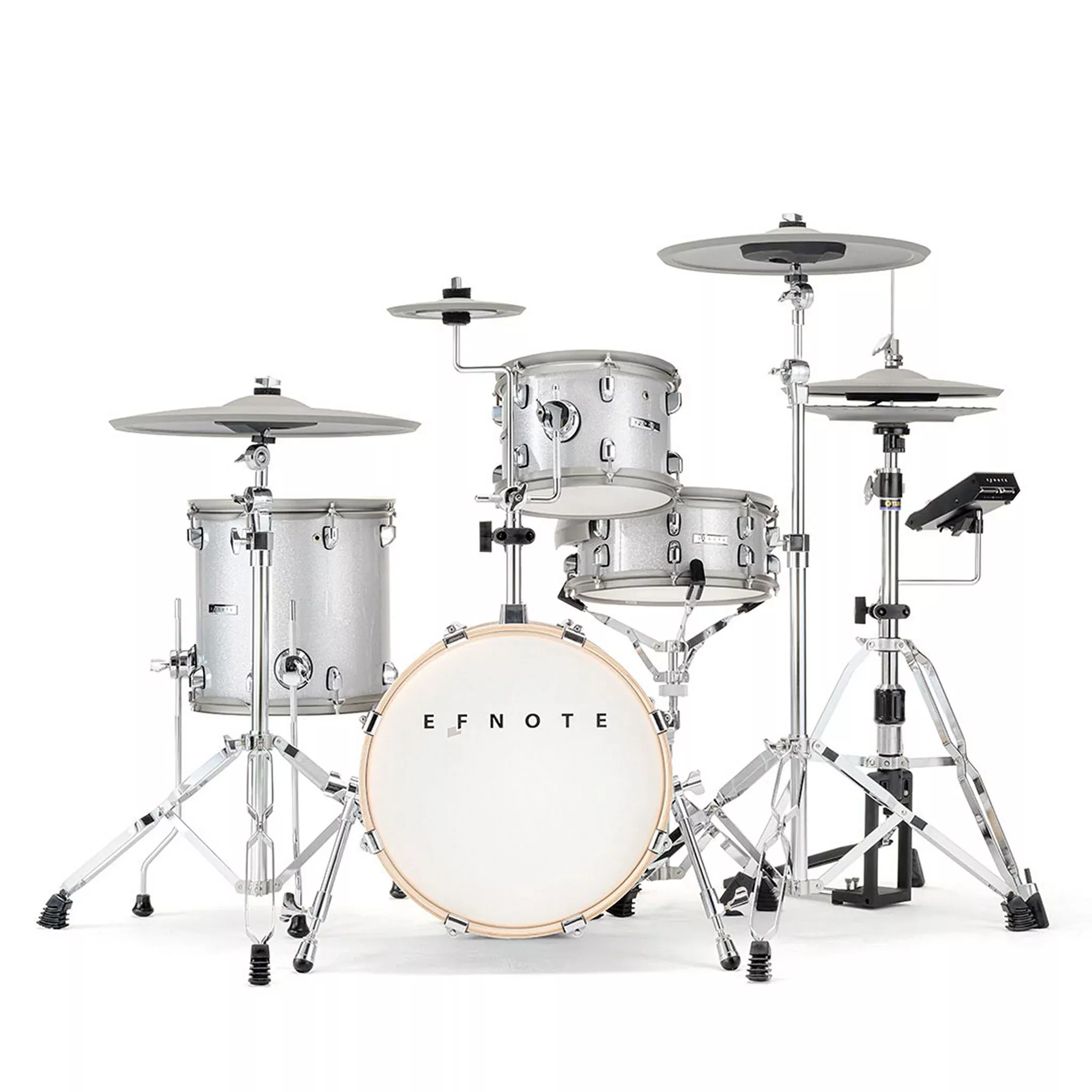

The EFNOTE 5 Acoustic DesignedElectronic Drum Set is a stunning piece of musical equipment that hasbecome an industry standard in the drum market, thanks to its versatility andreliability as a gigging kit. Its compact size makes it ideal for tight stagesand small studios, where you can easily plug in and play. The classic cymbalstands and standard configuration make it easy to set up, tear down, andtransport, saving you time and effort. Furthermore, with our flagship hats, 18”Ride, 16” crash, and 8” splash, this kit is the epitome of cool, perfect forany musical genre or style.
Beauty and Quality
Matches in interior designperfectly
Authentic shell proportion
Clean pure white sparkle finish
Elegant warm-gray colored cymbals
Player centric design
The Small Giant
Maximum expressiveness withminimum setup
360° flat sensing withmulti-sensor technology
Expandable to 5-piece shell and5-piece cymbal set
Specializes in Acoustic
Beautiful acoustic drum sounds
99% capacity is used for acousticdrum sound
Includes rich ambient thatreinforces the drum sound
7-Sensor Snare Drum
12 x 5″, 8 lugs, birch woodshell, 2ply mesh drum head
Multi-sensor for hotspotless andhigh-resolution sounding
High head tension tuning available
Independent Side-Rim
Easy, intuitive and reliable
No switch operation required
Elegant arc design
16″ Kick, More Than theSize
16 x 12″, 8 lugs, birch woodshell, 2ply mesh drum head
Comfortable feeling and stabilityover its size
Stable multi-sensing forsingle/double beater(s)
Multi-Sensored Toms
10 x 7″, 6 lugs / 12 x12″, 8 lugs
Birch wood shells, 2ply mesh drumheads
Multi-sensor for hotspotless andhigh-resolution sounding
Low head tension tuning available
Finest Hi-Hat Cymbals
14″ top/bottom cymbals
World’s first multi-opticalsensing to capture the motions in 3D
Tru-Motion™ technology forexpressiveness leap
360° free-swinging top/bottomcymbal design
18″ Full Ride Cymbal
18″ ride cymbal, 3-zone(Bow/Edge/Cup)
Multi-sensored 360° play/chokearea
360° free-swinging design
Responsive thin edge
3-Zone Crash Cymbal
16″ crash cymbal, 3-zone(Bow/Edge/Cup)
Multi-sensored 360° play/chokearea
360° free-swinging design
Responsive thin edge
Splash!
8″, 2-zone (Bow/Edge)
Ultra thin and light weight design
360° free-swinging design
Responsive thin edge
360° free-swinging responsive thinedge
Beautiful Cymbal Surface
Elegant warm-gray surface withfine engravings
Clean silicone rubber surface thatis resistant to drumstick marks
Ultra-Compact Sound Module
Ultra-small form factor withuncompromised features
Metal chassis and aluminum finish
High quality DAC and audio circuit
High power headphone amplifier
Touch screen intuitive userinterface
ELISE™ Sensing Processor
Capturing drummer’s intentionsfrom each stroke
Low latency, wide dynamic-range,consistent and stable sensing
Optimized for EFNOTE multi-sensordrum/cymbal/hi-hat pads
Full-Scale Acoustic Sound
Full stereo acoustic drum/cymbalsamples recorded by EFNOTE
Tru-Aco™ sound technology providesreal drum/cymbal sound behaviors
Raw sound without resynthesis
For Training
Multi-function metronome with beatLED indicator
Built-in metronome speaker fordaily training without headphones
On-board drum recording function(15 tracks)
Stroke Analyzer
Rhythm Box feature provides over90 basic drum beats
For Recording
USB 8-ch individual audio outputswith Mac / Windows (ASIO)
USB 2-ch audio inputs for playback
Analog 4-ch audio outputs
USB MIDI in/out with individualMIDI channels
MIDI output (5-pin DIN)
For Small Gigs
Setlist feature enables you toconfigure kit order with tempo for each song
Kick and Snare can be outputindividually with analog 4-ch outputs
Click and Audio-In can be assignedonly for headphones
High-power headphones output
MIDI output (5-pin DIN)
Stroke Analyzer
“Stroke Scope” displaysyour strike points on time-line
“Accuracy Score”estimates your strike accuracy
Sound Edit
Tuning, Muffling, 2-band EQs foreach pad
Pad layer function can overlay twosounds
User Inst Library enables you tostore 128 customized instruments
On-board reverb
Dedicated level control screen
Flexible Audio Routing
10-ch output buses
Flexible output routing for eachpad
Output assignable click
Output: 4-ch analog / 8-ch USB
Input: Analog / Bluetooth / 2-chUSB
Bluetooth®
Bluetooth audio-in provides you toplay along with Spotify™ / YouTube™ with your smartphone
Bluetooth MIDI
EFNOTE Tools App for controlremotely
Technical Specifications
Drum / Cymbal Pads
Kick: EFD-K1612
Size: 16 x 12″
Finish: White sparkle
Zone: Head
Sensor: Multi
Head: Double-layered mesh withbeater patch
Connector: Head (TRS Phones)
Features:Bass drum riser, Woodhoop
Snare: EFD-S1250
Size: 12 x 5″
Finish: White sparkle
Zone: Head / Rim / Side-Rim
Sensor: Multi
Head: Double-layered mesh
Connector: Head/Rim, Side-Rim (2xTRS Phones)
Features: Birch shell, Coloredhoop rubber, Side-Rim
Tom: EFD-T1070
Size: 10 x 7″
Finish: White sparkle
Zone: Head / Rim
Sensor: Multi
Head: Double-layered mesh
Connector: Head/Rim (TRS Phones)
Features: Birch shell, Coloredhoop rubber
Floor Tom: EFD-T1212
Size: 12 x 12″
Finish: White sparkle
Zone: Head / Rim
Sensor: Multi
Head: Double-layered mesh
Connector: Head/Rim (TRS Phones)
Features: Birch shell, Coloredhoop rubber
Hi-Hat: EFD-H14
Size: 14″ (Top/Bottom)
Color: Warm gray
Zone: Bow / Edge / Cup
Sensor: Multi (360° flat sensing +choke) / Optical
Connector: 6-pin
Features: Multi-optical sensor,Tru-motion™ hi-hat, Weight simulation, Fine engraved surface
General hi-hat stands compatiblewith 12.7 mm (1/2″) hole cymbal can be used.
EFNOTE 5 sound module does notsupport hi-hat cup zone.
Crash: EFD-C16
Size: 16″
Color: Warm gray
Zone: Bow / Edge / Cup
Sensor: Multi (360° flat sensing +choke)
Connector: Bow/Edge, Cup (2x TRSPhones)
Features: Weight simulation, Fineengraved surface
Ride: EFD-C18
Size: 18″
Color: Warm gray
Zone: Bow / Edge / Cup
Sensor: Multi (360° flat sensing +choke)
Connector: Bow/Edge, Cup (2x TRSPhones)
Features: Weight simulation, Fineengraved surface
Splash: EFD-C08
Size: 8″
Color: Warm gray
Zone: Bow / Edge
Sensor: Multi (360° flat sensing +choke)
Connector: Bow/Edge (TRS Phones)
Features: Weight simulation, Fineengraved surface
Sound Module: EFD-5
Trigger Interface
3-Zone: Snare, Crash 1/2*, Ride
2-Zone: Tom 1/2/3/4, HH, Crash 3
1-Zone: Kick
Crash 1/2 support 3-zone withusing Tom 4/Crash 3 cables.
EFNOTE 5 uses the Crash 3 cablefor the splash cymbal.
Audio / MIDI Interface
Line (1/2) Output: 2x TS Phone(+4dBu, Unbalanced)
Phones (3/4) Output: StereoMini-Phone (320 mW + 320 mW @32Ω)
Audio Input: Stereo Mini-Phone(+2dBu Max)
USB: Micro-B Type USB 2.0 Hi-Speed
Audio: 8-ch Out (48kHz/24bit) /2-ch In (48kHz/16bit), Mac/Windows ASIO
MIDI: In/Out
Bluetooth Audio Input
Bluetooth MIDI In/Out
MIDI Out: 5-pin DIN
Drum Kits / Instruments
Preset Drum Kits: 17 (Editable)
User Drum Kits: 83
Instruments: AcousticDrums/Cymbals (Stereo), Percussion (Stereo), Attack Elements
User Inst Library: 128 (Can bestored customized instruments)
Edit Parameters
Level, Pan, Tuning, Muffling (foreach pad)
2-Band EQ (for each pad)
Ambience Effect (8 types)
Pad Layer
Dimensions
106 (W) x 172 (D) x 47 (H) mm
700 g
Excluding protrusions
Power
DC 12 V, 500 mA (Nominal) / 800 mA(Max)
Hardware
Tom Holder
1x Tom holder arm
Geared L-rod tilter
Knurled carbon steel rod
L-rod diameter: 11.5 mm(7/16″)
Tube diameter: 22.2 mm (7/8″)
Height adjustment range: 700 –900 mm
Splash Cymbal Arm
1x Z-rod short
1x Z-rod long
Sound Module Arm
1x Sound module arm
1x Smartphone tray
Snare Drum Stand (Optional):EFD-SS5
For 12″ to 14″ diametersnare drums
Geared basket tilter
Double braced legs
Tube diameter: 19.1 mm (3/4″)
Height adjustment range: 500 –650 mm
Cymbal Stand (Optional):EFD-CS5
Boom cymbal arm
Geared tilter
Cable holder
Middle tube diameter: 19.1 mm(3/4″)
Boom length: 400 mm
Height adjustment range: 800 –1,500 mm
Drum Kit Placement
Placement Size
Approx. 140 (W) x 90 (D) cm
Approx. 4.6 (W) x 3.0 (D) feet
Without drum throne
Included
Sound Module 1x
16” Kick 1x
12” Snare with Side-Rim 1x
10” Tom 1x
12” Floor Tom 1x
14” Hi-Hat Cymbals 1x
16” Standard Cymbal 1x
18” Standard Cymbal 1x
8” Splash Cymbal 1x
Smartphone Tray 1x
Floor Tom Leg 3x
Splash Mount Set 1x
Tom Mount Set 1x
Module Mount Set 1x
Multi-A5 Cable 1x
Multi-B Cable 1x
Trigger Cable 5x
AC Adapter 1x
Beater Patch 1x
Splash Cymbal Rod Long(Alternative) 1x
Tuning Key 1x
Cable Tie 10x
Quickstart Guide 1x
