ESE ES 461U SMPTE/EBU Time Code Generator/Jam Sync-1, 3/4 Inch Rack Mount

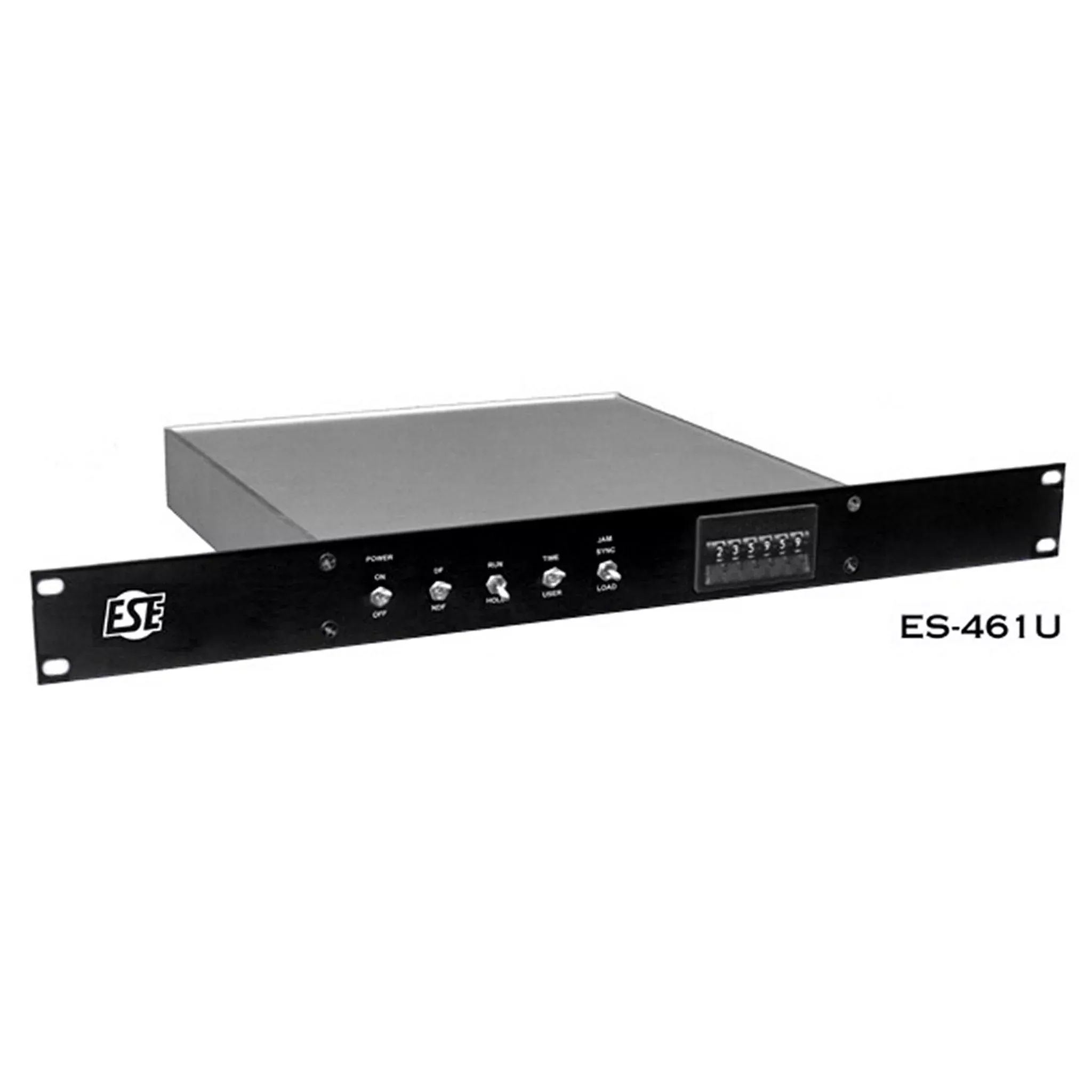

The ES-461Uis a SMPTE/EBU Time Code Generators. Front panel thumbwheel switches allow theuser to preset the unIt’s Hours, Minutes and Seconds (Hours & Minutes onlyon the ES-263) or User Bits. Each unit accepts composite video or compositesync and operates in drop frame or non-drop frame mode. Features include avideo sync input, a color frame pulse input and a clock “Hold”function. The ES-461U is a microprocessor-based, presettable SMPTE Time CodeGenerator. SMPTE Time or User Bits can be preset via the unIt’s front panelthumbwheel switches. Or, the unit can be Jam-Synched to an external source ofSMPTE via the rear mounted female XLR connector. The SMPTE output is accessiblevia the rear mounted male XLR connector. Two BNC connectors provide a loop-thruVideo Sync Input that accepts either composite video or sync. A Color FrameInput is also provided via a BNC connector.
Key Features
- GeneratesTime and User Bits
- Jam SyncTime Code input
- Manual Timepreset via thumbwheel switch
- Balanced orUnbalanced Time Code output
- Drop-Frame/NonDrop-frame modes
- Video/Black-Burstand Color Frame inputs
TechnicalSpecifications
Time Code Output
0 dB into600, balanced
Time Code Input
100 mVpp -10 Vpp, unbalanced
Video In/Out
1 – 2 Vpp,unterminated
Color Frame Input
TTL or CMOSField 1 negative pulse
Drift
2Seconds/Day
Mechanical
1.75″ x19″ x 10″ Deep, rack mount
Electrical
117 VAC,50/60 Hz, 5 W
Options
EBU, J, UL
