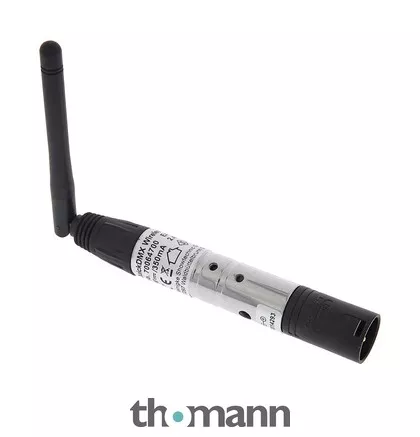

Compact QuickDMX Wireless Transmitter, 2.4 GHz
- DMX wireless transmitter in miniature format for the wireless transmission of up to 512 DMX channels
- User friendly 3-pin XLR (male) connector with swivel antenna
- Wireless DMX eliminates the need for complex cabling between DMX controllers and DMX-controlled devices in lighting setups
- Due to GFSK modulation with 78 channels, interference-free operation is also possible alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. WLAN and Bluetooth)
- Operating range of up to 400 m
- From one up to 512 QuickDMX receivers can be operated per transmitter
- A maximum of 6 transmitters can be operated simultaneously, giving a total of 3072 DMX channels that can be controlled
- Plug & Play: Quick and easy setup with one operating button for connecting / disconnecting QuickDMX receivers
- LED function display
- Powered via included power supply
Technical specifications:
- 2.4 GHz ISM Band – No license is required and no charges are incurred when used anywhere in the world
- Power supply: 100 – 240 V AC, 50 / 60 Hz via included power supply
- Wireless transmission in the 2.4 GHz band (ISM)
- 78 Channels
- Modulation: GFSK
- Operating range: 400 m (with line-of-sight)
- DMX connector: 3-Pin XLR
- DMX channels: 1 Universe (512 channels)
- Dimensions with antenna (L x W x H): 212 x 18 x 18 mm
- Weight: 80 g
