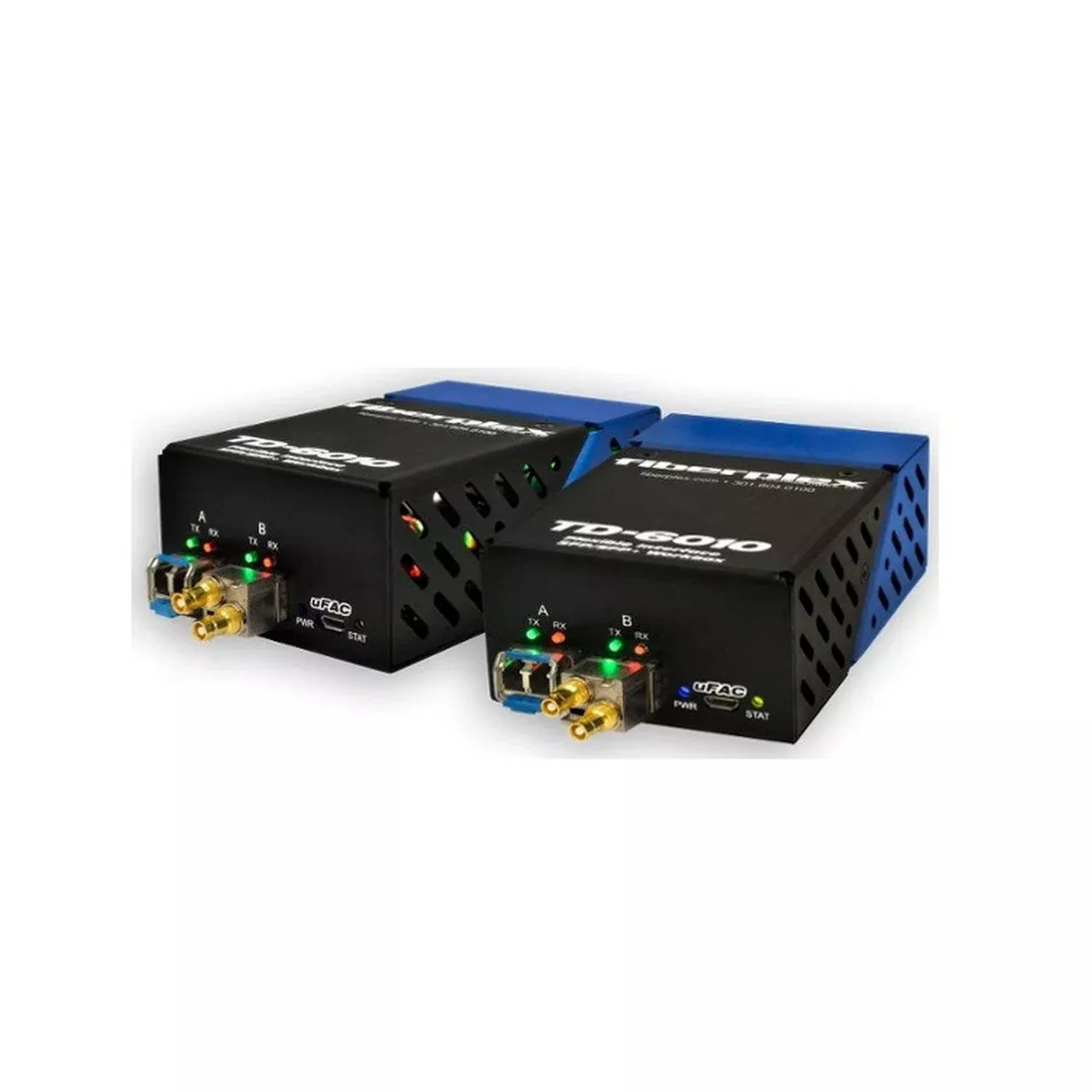

Fiberplex TKIT-3GXC-M 3GSDI Video to Multimode Optical Conversion Transceiver Pair
TheFiberPlex Technologies `TKIT’ bundles takes the incredible flexibility of theTD-6010 12.5 Gbps workbox and bundles it with a set of application specific SFPmodules to create a simple, easy to order solution for your specific application.Includes AC Power Adapters.
Key Features
- SMPTE 424M,SMPTE 344M, SMPTE 292M and SMPTE 259M compliant
- IntegratedReclocker and Cable Driver
- SupportsDVB-ASI at 270Mb/s
- SupportsAudio in SDI stream
- Supportsvideo pathological patterns for SD-SDI, HD-SDI and 3G-SDI
- Control viaserial interface including: Input signal detection, Reclocker Rate & Lock,Voltage & Temperature Monitoring, Bypass Reclocker stage, ModuleInformation
TechnicalSpecifications
Storage Temperature (C)
-40 – 85C
OperatingTemperature (C)
0 – 50C
Interface
Full speedUSB 2.0 compliant MicroB Device
Optical Modules
2 SFP+ MSA(SFF-8431, SFF-8432, SFF-8433) compliant slots, data rate 0 – 12.5 gigabits
