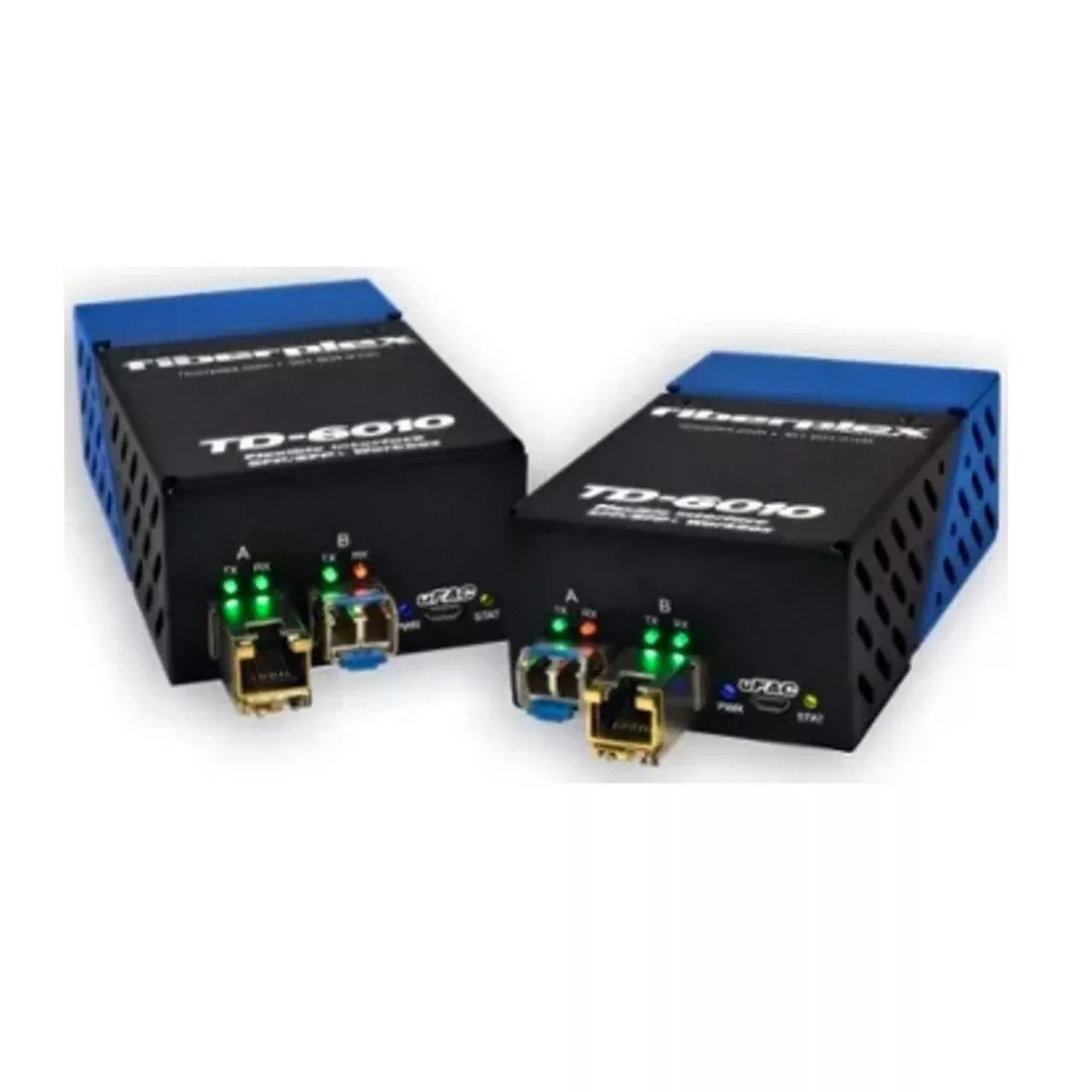

Fiberplex TKIT-ETH-S Preconfigured 10/100/1000 Base-T Ethernet to Singlemode Optical Conversion Pair

Fiberplex TKIT-ETH-S Preconfigured 10/100/1000 Base-T Ethernet to Singlemode Optical Conversion Pair

TheFiberPlex Technologies `TKIT’ bundles takes the incredible flexibility of theTD-6010 12.5 Gbps workbox and bundles it with a set of application specific SFPmodules to create a simple, easy to order solution for your specificapplication. Includes AC Power Adapters.All TKIT boxes come equipped with a USB2.0 Micro-B Connection for monitor control. It is a USB port intended tomonitor and control the installed SFP. It is for future functionality only,Fiberplex currently does not have software available for this.

Key Features

• Up to 1.25Gb/sbi-directional data links
• Hot-pluggableSFP footprint
• CompactRJ-45 connector assembly
• 1000 BASE-Toperation in host systems with SERDES interface
• 10/100/1000Mbpscompliant in host systems with SGMII interface

TechnicalSpecifications

Storage Temperature (C)
-40 – 85 C
OperatingTemperature (C)
0 – 50 C
Interface
Full speedUSB 2.0 compliant MicroB Device
Optical Modules
2 SFP+ MSA(SFF-8431, SFF-8432, SFF-8433) compliant slots, data rate 0 – 12.5 gigabits
