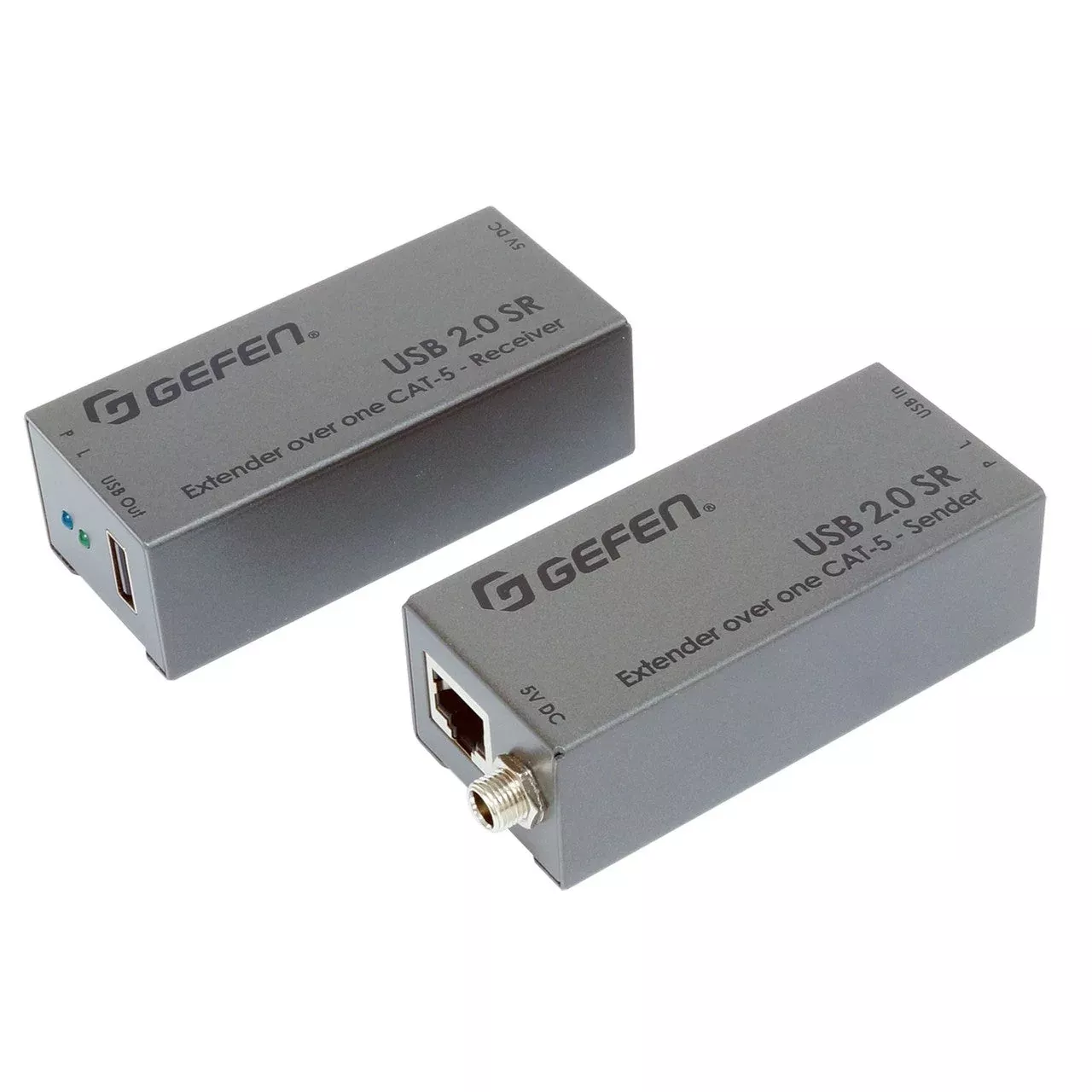

Gefen EXT-USB2.0-SR USB 2.0 Extender Over One Cat-5 Cable
Extend USB2.0 up to 50 meters/165 feet, over a single CAT-5, Gefen’s EXT-USB2.0-SRextends high-speed USB devices over a single CAT-5e cable, up to 50 meters/165feet. It works with all major operating systems — Windows, macOS and Linux. Nosoftware drivers are required. The Sender and Receiver units install in minuteswithout any configuration, and support USB versions 2.0 and 1.1 – essential forhigh-performanceapplications such as digital imaging and interactive gaming.
Key Features
- Extends USB2.0 peripherals up to 165ft (50m) away from a computer
- Supports USB1.1 and 2.0
- Usesindustry-standard CAT-5e or better cable
- Supports allmajor operating systems — Windows, macOS and Linux
- Trueplug-and-play, 100% hardware solution with no drivers required
- Can supportthe full 480 Mbps speed of USB 2.0
- Receiversupports a powered USB connection up to 2A at 5V
- Sturdy metalconstruction of the enclosures help provide immunity against Electro-MagneticInterference (EMI) and radiated noise (RFI)
- Compactenclosures are easy to install and can be hidden away
TechnicalSpecifications
USB 2.0 Speed
Up to 480Mbps
Link Connectors (Sender/Receiver)
RJ-45,Shielded
USB Connector (Sender)
(1) USB typeB
USB Connector (Receiver)
(1) USB typeA
USB Port Current Capability (Receiver)
2A at 5V DC
Link Indicator (Sender/Receiver)
(1) LED,green
Power Indicator (Sender/Receiver)
(1) LED,blue
Power Supply Connectors (Sender/Receiver)
Locking-type,5.5mm barrel/2.5mm pin
Power Supply Voltage (Sender/Receiver)
5V DC
Power Consumption (Sender/Receiver)
0.65W/0.8W(maximum)
Operating Temperature
+32F to+122F (0C to +50C)
Storage Temperature
-4F to158F (-20C to 70C)
Operating Humidity
5% to 90%relative humidity, non-condensing
Storage Humidity
0% to 95%relative humidity, non-condensing
MTBF
50000 hours
Dimensions (W x H x D) (Sender/Receiver)
3.4″ x1.1″ x 1.5″ (85mm x 28mm x 38mm)
Net Weight (Sender/Receiver)
0.3 lbs.(0.13 kg)
Shipping Weight
2.2 lbs. (1kg)
Length
1.5 (Inches)
Width
3.4 (Inches)
Height
1.1 (Inches)
Weight
2.2 (Lbs)
Unit of Measure
Set
UPC
888814999969
