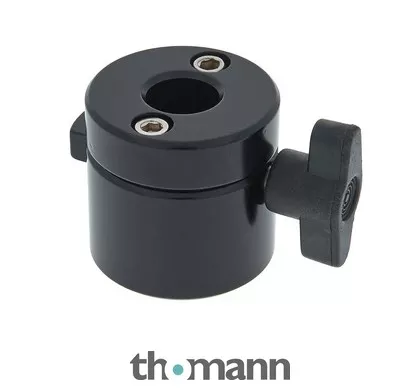

Global Truss Quick Snap Mini 16 mm black

Quick Snap/Quick ReleaseThis Quick Snap is an adapter plug to mount an object to a hook or clamp in a fast and easy way. The mounting can be done with only one hand and in only a few seconds! No more the need for awkwardly having to position with one hand and locking with the other.

The locking happens mechanically through the insertion of the spigot into the receiver socket which secures the spigot in place. The rotation of the spigot can be further secured by tightening of a wing screw. The form-fitting lock prevents the wing screw from directly pressing onto the spigot.

• For Mini TV spigots Ø 16 mm
• Max. Load according to BGV C1: 50 kg
• M10 Screw
• Colour: Black

3030-Day Money-Back Guarantee

• Available sinceMay 2017
• Item number399417
• Sales Unit1 piece(s)
• Type Mini-TV Spigot
• Diameter of bolt/flange socket bigger side 16 mm flange socket
• Diameter of bolt/flange socket smaller side not existing
• Thread bigger side M10 female
• Thread smaller side not existing
