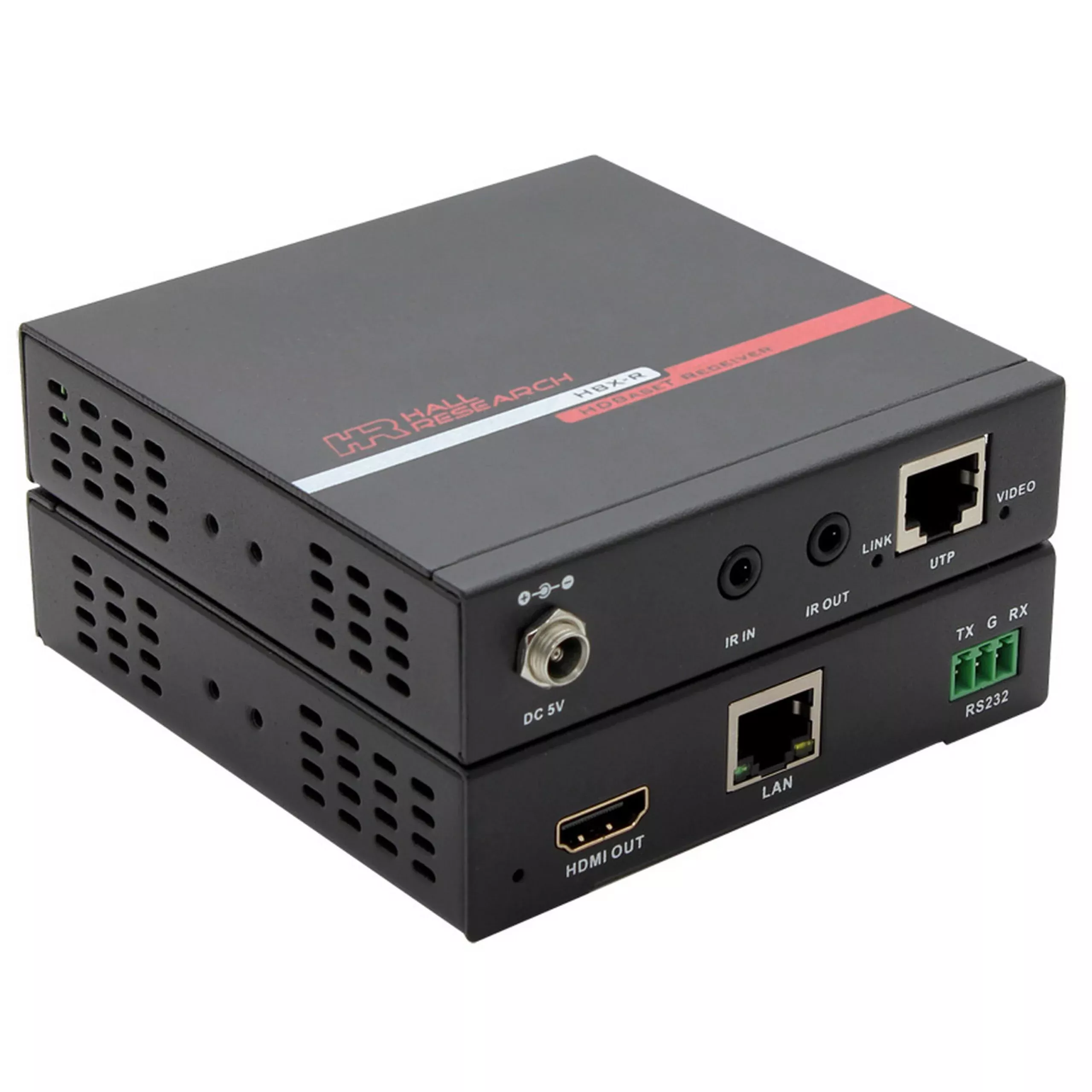

Hall Technologies HBX-R HDMI Video Extender Receiver
This productis a Class A HDBaseT compliant Receiver that supports 100meter Cat6 range andis used to extend HDMI, RS-232, IR, and Ethernet (100BaseT) up to 100 meters(328 feet) using a single Cat6 cable.
Since theproduct uses the HDBaseT standard, video is extended pixel-by-pixel with nocompression or latency. The extender supports all PC and HDTV Resolutionsincluding 4K @ 30 Hz 4:4:4 or 4K @ 60 Hz 4:2:0. The IR extension preserves themodulation (carrier) frequency thereby providing compatibility to moststandards.
Receiverincludes a universal 5v power supply. IR emitter and IR detector cables areincluded.
Key Features
- FullyCompliant with HDBaseT standard
- Supportsvirtually all HDMI and DVI resolutions including 4K UHD
- Extends,Video, Audio, RS-232, IR, and Ethernet
- Supportsextension to 100 m (330 ft)
- Fullyisolates grounds between TX and RX sides
- Compact,Rugged, Reliable, and Economical
- Plug andplay, no configuration needed
- Receiver canbe powered via PoC from senders that provide PoC such as HSM-44-BX MatrixSwitch with HDBaseT outputs
TechnicalSpecifications
Video Standards
DVI (singlelink) and HDMI (compliant with HDMI 1.4 video specifications including
12 bit colordepth, 3D video and 4K support)
Signal Type
TMDS
Resolutions
DVI signal -VGA (640×480) thru WUXGA (1920×1200)
HDTV signal- 480i through 1080p
DigitalCinema – 4K30 4:4:4 or 4K60 4:2:0 (4096×2160) up to 60 m
Audio Formats
All HDMIEmbedded Audio including: LPCM 7.1CH, Dolby TrueHD and DTS-HD
Master Audio(32-192 kHz sample rate)
DDC
Pass-ThruDDC for reading EDID directly from remotely connected LCD and HDCP
handshake
CEC
Pass-ThruCEC for Consumer Electronics Control compatible devices
RS232
Bidirectional(full-duplex) any baud rate up to 115,200
Ethernet
100BaseTEthernet LAN
IR
Extended inboth directions. Carrier modulation range from 30 kHz to 60 kHz
Power Supply
100 VAC to240 VAC, 50-60 Hz, external; 5 VDC, 2 A, regulated
Power
Sender &Receiver: 10 watts maximum
Temp/humidity
Storage: -40to +158 F (-40 to +70 C) / 10% to 90%, non-condensing
Operating:+32 to +122 F (0 to +50 C) / 10% to 90%, non-condensing
Cooling
Convection
Mounting
End plateswith hole for surface mounting
Enclosure type
Metal(Aluminum ends, Aluminum Extrusion)
Dimensions
1.0″ Hx 3.9″ W x 3.9″ D (25mm H x 100mm W x 100mm D)
Depthexcludes connectors
Product weight
Sender 9.3oz (0.58 lb or 264 g)
Receiver 10oz (0.63 lb or 284 g)
Kit(shipping) 37 oz (2.3 lb or 1050 g) includes: sender, receiver, universal powersupply, manual, and packaging
Safety
CE
EMI/EMC
CE, FCCClass A
MTBF
90,000 hours(Calculated Estimate)
Warranty
3 yearsparts and labor
