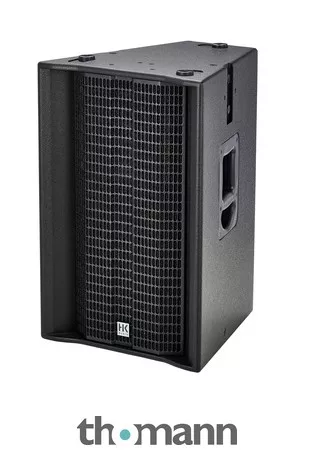

Passive Full Range Speaker
- Equiped with: 3 x 8″ midrange / tweeter, 1 x 1″ tweeter
- power rating: 600 W (RMS), 1200 W (program), 2400 W (peak)
- Frequency response: 100 Hz – 20 kHz
- Maximum level: 133 dB
- Impedance: 8 Ohm
- Horn characteristics 60° x 5° / – 25° MCT Horn
- Connectors: 2 x Speaker Twist NL4
- 7 x M8 rigging points
- Tripod flange mount: MonoTilt 0°
- Dimensions (W x H x D): 44 x 68 x 46.1 cm
- Weight: 26.9 kg
Matching accessories – not included:
- HK Audio Cover L5 LTS A: Art.381681
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJune 2016
- Item number393344
- Sales Unit1 piece(s)
- Manufacturers Information Power Handling 2400 W
- Impedance 8 Ohms
- Number of Woofers 3
- Woofers in Inch 8″
- Colour Black
- Width 440 mm
- Depth in mm 460 mm
- Height 680 mm
- Weight in kg 26,4 kg
- Monitor Angle No
- IP Class None
- RMS Power600 W
- FlyableFlying Frame
- Maximal SPL138 dB
- Number of Mid-Tone Speakers0
- Mid-Tone Speakers in Inchnone
- Number of HT-Speakers1
- HT-Speakers in Inch1″
- Stand Flange36 mm
- Number of Ways2-Way
- Housing MaterialWood
- ConstructionStandard Cabinet
- Frequency Range (-3dB) from108 Hz
- Frequency Range (-3dB) to14000 Hz
- InputSpeaker-Twist
- Frequency Range (-10dB) from100 Hz
- OutputSpeaker-Twist
- Horizontal Beam Angle60 °
- Frequency Range (-10dB) to20000 Hz
- Vertical Beam Angle25 °
