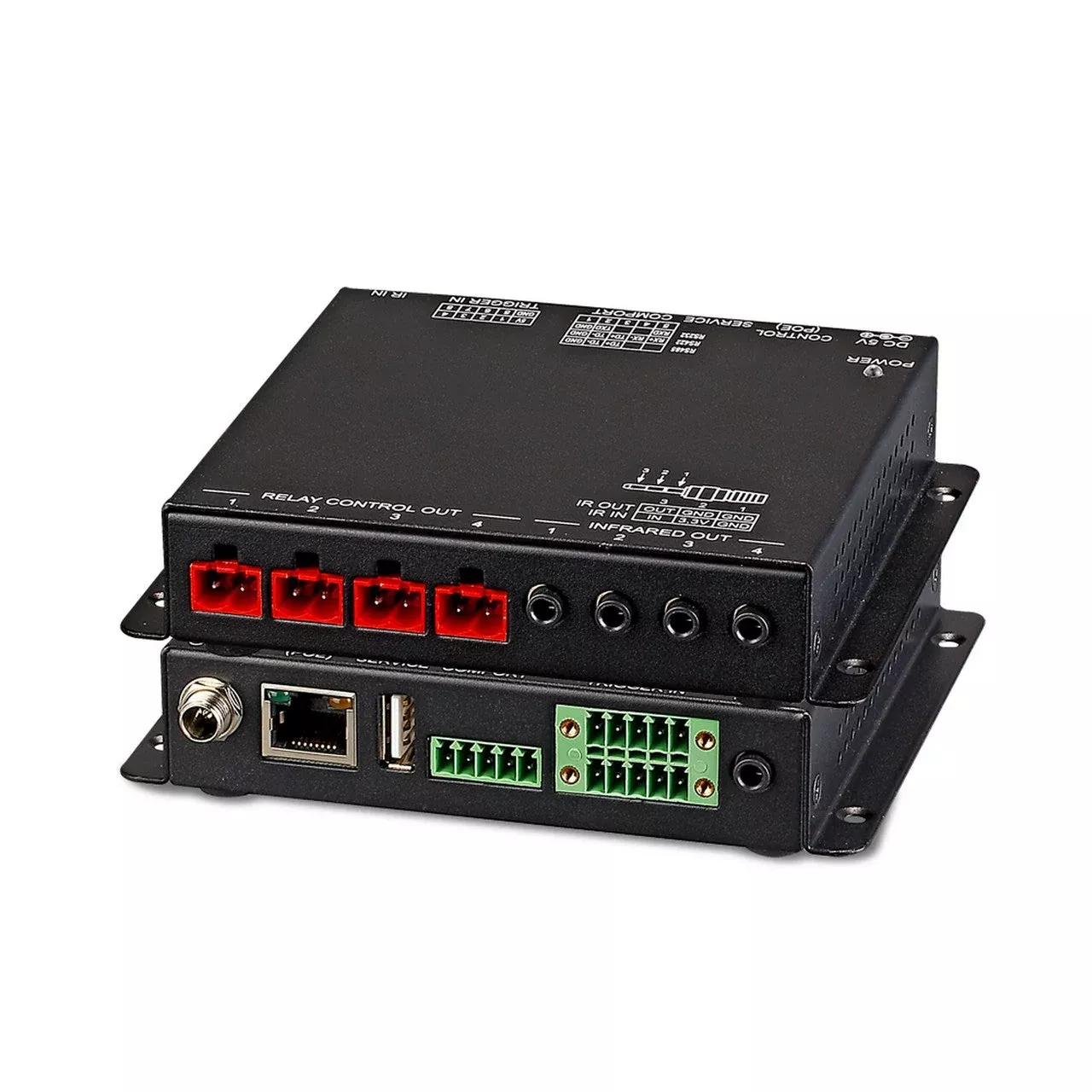

KanexPro CR-3XCONTROL Integrated IR/RS-232 and Relay Controller

KanexPro CR-3XCONTROL Integrated IR/RS-232 and Relay Controller

The KanexProCR-3XCONTROL is a central control system designed to control wide variety ofdevices such as projectors, dvd players and other audio-video IR, RS-232 andrelay based sources. It comes with eight external trigger connections whichdirectly activates 8 (of 16 total) user defined macro events stored within theunit. All 16 macros are accessible can be activated via the WebGUI, or byTelnet. Those user defined macros can send commands to remote devices viaEthernet, IR (-4), relay trigger (-4), or RS-232/422/485 (-1) allowing for thecontrol of a large array of devices by the push of button.

Key Features

• IntegratedIR/RS-232 and Relay Controller
• 8 triggerinputs linked directly to 8 user macros allowing instant control
• 4 relaytrigger outputs to control devices such as projector screens, lighting, etc.
• 4 IR outputsto control devices such as TVs, blu-ray players, media players, etc.
• IntegratedIR code learning functionality
• Multipleuser control interfaces including WebGUI, Telnet and RS-232
• Simpleconfiguration of macros, triggers and relay settings via the WebGUI
• PoE (Powerover Ethernet) support
• Firmware caneasily be updated in the field via USB

TechnicalSpecifications

Dimensions
5.0″ x0.98″x 4.25″ WHD
(128mm25mm – 108mm)
CaseOnly
5.0″x0.98″x 4.64″ 128mm – 25mm – 118mm(WHD)
Weight
0.88 lbs.(400g)
