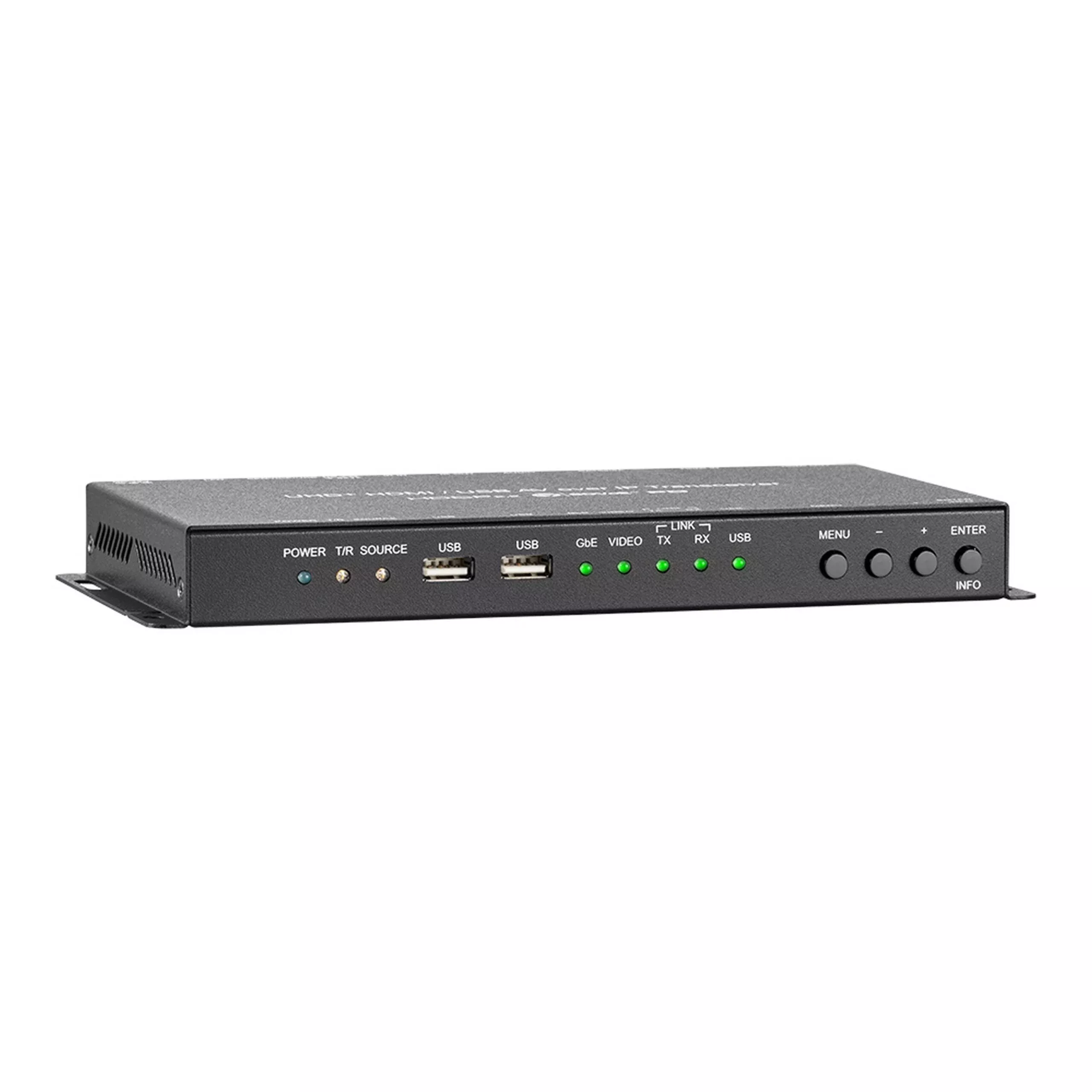

KanexPro EXT-PROMATRIXUSB Flexible Matrix System Transceiver Powered by SDVoE
The KanexProSDVoE powered Modular Matrix system is the most versatile flexible video distributionsolution. The system is composed of transceiver devices that can be configuredas either video transmitters or receivers with a simple click of a mouse. Thewhole system is controlled and configured by a single control module whichmakes setup a snap.
Transmitters and Receivers in One Device
The KanexProFlexible matrix transceiver (EXT-PROMATRIXUSB) is an SDVoE IP poweredencoder/decoder solution. Each transceiver features with one HDMI input andoutput, three USB 2.0, phoenix connectors for audio in and out and a LAN(Ethernet) port with RS-232 control port. The encoders use the advanced SDVoEtechnology to transmit full UHD 4K/60 video from HDMI based devices withlossless video and audio with absolutely zero latency. It supports POE (powerover Ethernet) when connected with a POE network switch with distances over asingle CAT6a up to 330 ft. (100m) delivering one to one, one to many and manyto many over the 10G Ethernet switch.
Additionally,this unit supports matrix, video wall, picture in picture (PiP) and multiviewermodes when controller (EXT-PROCTRL) is connected to the network. The controllerconfigures settings of all connected Transmitter/Receiver units, including IPaddress, netmask and extender status are clearly displayed within the WebGUI.The WebGUI is easily accessed via a web browser over a normal networkconnection or by directly connecting an HDMI display and USB keyboard &mouse to the control unit. A trigger input interface is also provided to allowthe easy addition of a remote-control keypad, or other trigger-supportingdevices, which can be installed within a podium or within a table in aconference room or classroom. This interface manages stored presets with thesimple press of a button. Standard control is available via WebGUI (remote orlocal), RS-232, Telnet, IR Remote and triggers.
Video Wall function & Multi-View
Create a NxNvideo wall or multi-view by adding multiple tranceivers to your application.They instantly display and have lossless video for critical video applications.They are all controlled by the central controller module and the web based GUI.
A Central Control System for all yourSwitching & Controlling Needs (Sold Seperately)
The KanexProModular Matrix Controller (EXT-PROCTRL) is a powerful and flexible tool forcontrolling multiple transceivers within same network. Install this unit ontothe same local network as the extenders to easily define and configure channelrouting selections using the WebGUI. It is also possible to define and switch routesusing customized groups or presets allowing for easy control over multiplevideo zones. Without the use of this controller, each individual Transmitterand Receiver pair could only be configured in a basic point-to-pointoperational mode. Compliant with HDCP, this controller should be combined witheither of our tranceivers – EXT-PROMATRIX, EXT-PROMATRIXUSB offering a completeconfigurable ultra high quality video supporting resolutions up to 4K@60fpswith Zero Latency. It’s a great solution for those looking to upgrade thetraditional DVI/HDMI flexible matrix switchers.
Applications
Ideally usedfor digital signage in bars, restaurants, house of worship centers, largeuniversity campuses and in corporate AV signage, even high risk medicalenvironments where sending high resolution, zero latency video and audio iscritical.
Video,Audio, LAN, IR and RS-232 over Ethernet extension
Hotel orconvention center displays
Multi-monitorbroadcasts
Distributedvideo matrix system
Distributedvideo wall system
Key Features
- HDMI 2.0 andDVI 1.0 compatible
- HDCP 2.2 andHDCP 1.x compliant
- Can beconfigured to function as either a Transmitter or a Receiver
- 1 HDMI input
- 1 HDMIoutput (Functions as local monitor output in Transmitter Mode)
- 1 analogstereo jack (Functions as an input in Transmitter Mode and an output inReceiver Mode)
- 2 USB 2.0(TypeA) ports and 1 USB 2.0 (MiniB) port
- IPswitchable with minimum latency (Requires EXT-PROCTRL)
- Ultra-lightcompression, lossless for most content
- Extension upto 100m in point-to-point mode (w/ Cat.6A cable)
- Independentbreakaway A/V matrix switching (Requires EXT-PROCTRL)
- Video wallgeneration (Requires EXT-PROCTRL)
- Multi-viewcompositing (Requires EXT-PROCTRL)
- Supportspass-through of 10/12-bit HDR sources (Point-to-Point and Genlock mode only)
- Supportspass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HDBitstream from HDMI sources
- Analogstereo audio extension, insertion and extraction (Requires EXT-PROCTRL)
- BidirectionalLAN, IR & RS-232 extension
- Unit can bepowered directly by PoE when connected to a 10 Gigabit Ethernet (10GbE) switchthat provides PoE (802.3af)
- Signaltransmission interfaces with 10-Gigabit Ethernet switches via a single Cat.6Acable
- Basicconfiguration via front panel buttons with an On-Screen Display (OSD)
- Supports theuse of an external control center or control software to provide expandedfunctionality (Contact your authorized dealer for more information)
Technical Specifications
HDMI Compliance
HDMI 2.0,1.4b
HDCP Compliance
HDCP 2.0,1.4
Video Bandwidth
18 Gbps
Ethernet Bandwidth
10 Gbps
Video Resolutions
720×400@70/85~ 4096x2160p@50/60Hz
Output Video Type
HDMI
IR Frequency
38kHz
Baud Rate
57600(Default), up to 115200bps
Color Space
RGB, YCbCr4:4:4, YCbCr 4:2:2
Color Depth
8-bit
HDMI Audio Formats
LPCM 8CH,32, 44.1, 48KHz
L/R Audio Formats
AnalogStereo 2CH
ESD Protection
Human bodymodel +- 8kV (air-gap discharge) & +- 4kV (contact discharge)
Transceiver
Inputs:
1x HDMI TypeA (19-pin female)
1x L/R AudioIn (3.81mm Phoenix connector)
1x RS-232(3.81mm Phoenix connector)
Bi-directional:
1x 10GbE LAN(RJ45 connector)
Outputs:
1x HDMI TypeA (19-pin female)
1x L/R AudioOut [3.81mm Phoenix connector)
1x Debug(3.81mm Phoenix connector)
Pass-through
1x StereoAudio
1x RS-232 (3-pinTerminal Block)
1x IRExtender
1x IRBlaster
2x USB 2.0(Type A)
1x USB 2.0(Mini B)
1x LAN(RJ45)
Housing
MetalEnclosure, Steel
Color
Black
Dimensions
215mm x116mm x 25mm
Weight
968g
Power Supply
12V/3A DC(Locking)
Maximum Power Consumption
24.5 watts
Operation Temperature
32 – 104F /0 – 40C
Storage temperature
-4 – 140F /-20 – 60C
Relative Humidity
20 – 90% RH(no condensation)
