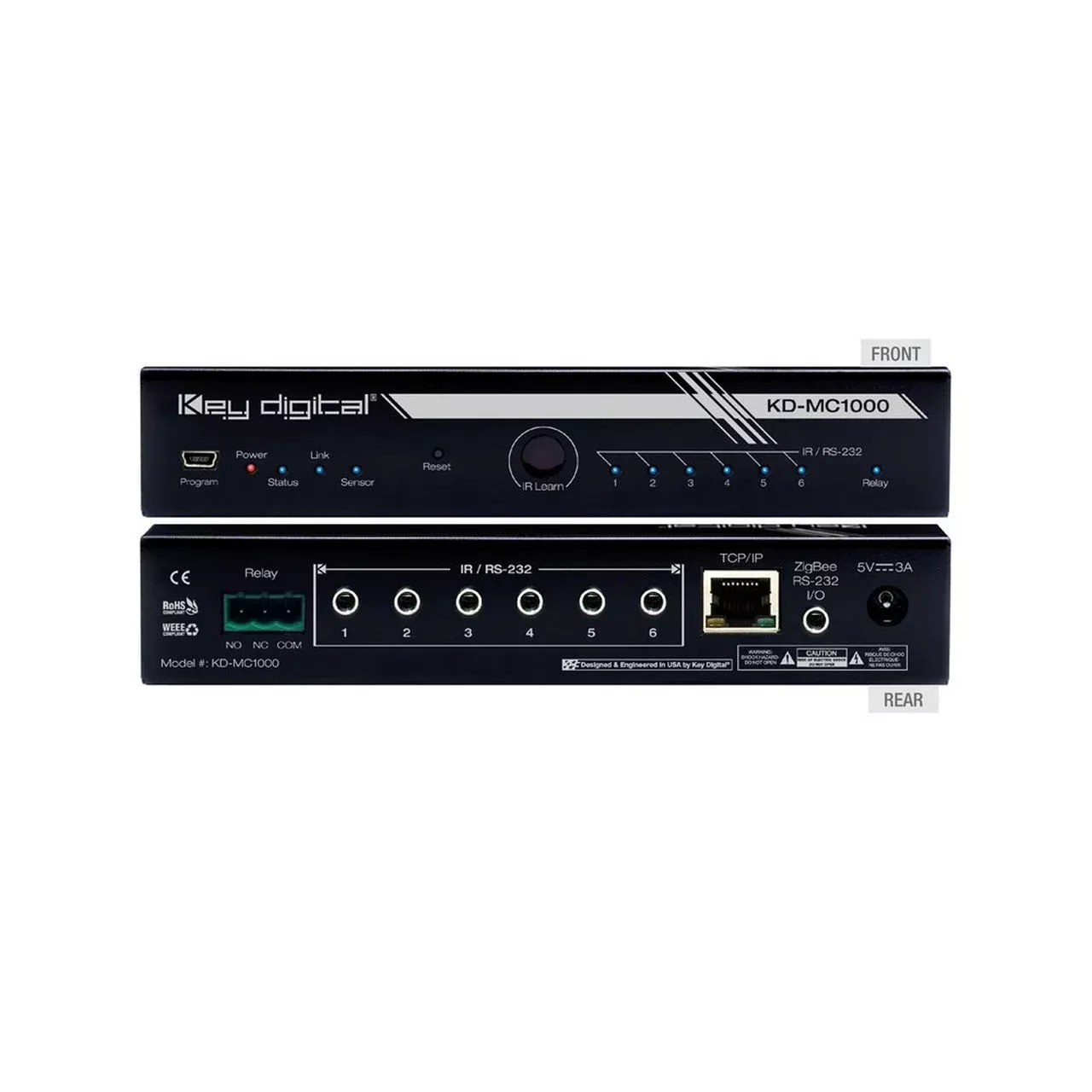

Key Digital KD-MC1000 8 Port LAN Master Controller
MasterController, (Wired/LAN, up to 8 Ports)
Key Features
- iOSBackbone: First major control system built from the ground up using Apple’s iOSdevicesiPad, iPad mini, iPhone, and iPod touch
- Total 8Ports: 6 MCP35 Multi-Function I/O Ports , 1 Relay/Contact Closure Port, 1ZigBee Wireless Port
- USB Support:USB port for firmware upgrades and initial setup
- Built-in IRLearning: Front-facing IR window enables learning of IR codes from external IRremotes
- RelayControl: Control external equipment with one set of switchable contacts. Anymulti-function 3.5mm port can be converted to Contact Closure using externalKey Digital KD-CCXR200 Converter
TechnicalSpecifications
Regulation
CE, RoHS,WEEE
Enclosure
Black Metal1/2U
Accessories
External 5V3APower Supply, USB Cable, (1) 3-Pin Terminal Block for
Relay, (6)3.5mm to IR Emitter, (3) 3.5mm to RS-232 Data Cable, Rack Mount Ears
Product Dimensions
6.5” x 4” x1.13”
Shipping Dimensions
8.8” x 6.2”x 3.9”
Product Weight
1.5 lbs.
Shipping Weight
3 lbs.
