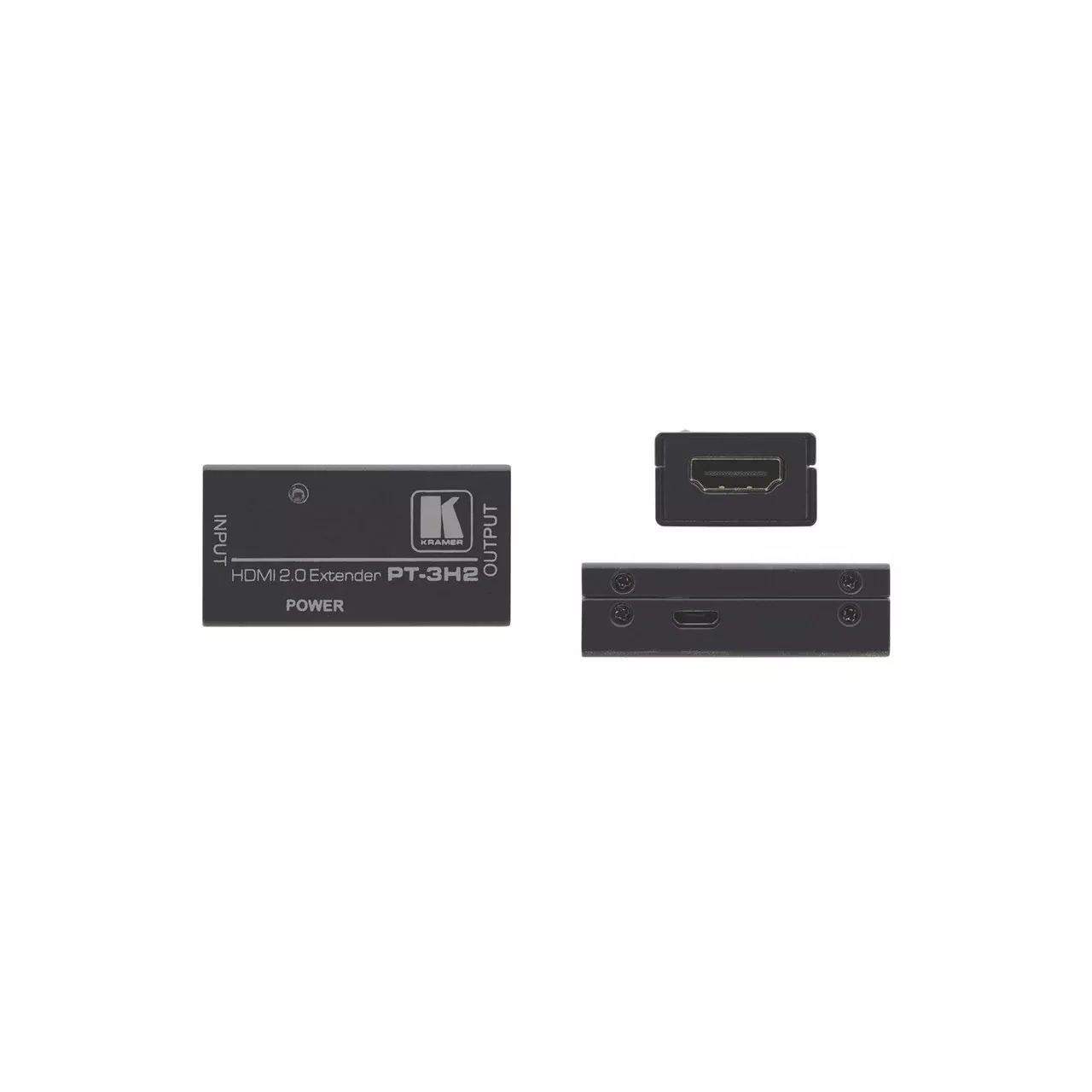

Kramer PT-3H2 4K HDMI HDCP 2.2 Extender
The PT?3H2 is a 4K@60Hz (4:4:4) equalizer and line driver for HDMI 2.0 and HDCP 2.2 signals. The unit extends the range when using long HDMI cables.
Key Features
- Max. ResolutionUp to 4K@60Hz (4:4:4).
- HDTV Compatible.
- HDCP 2.2 & HDMI 2.0 Compliant.
- HDMI SupportARC, CEC.
- Range – 10m to input, 10m from output, total 20m (65ft) at 4K60 (4:4:4); 25m to input, 15m from output, total 40m (130ft) at 4K60 (4:2:0); 30m to input, 15m from output, total 45m (150ft) at 1080p60.
- External Power Supply Option.
Technical Specifications
INPUT/OUTPUT
HDMI connectors
MAX. DATA RATE
18Gbps (6Gbps per graphic channel)
MAX. RESOLUTION
Up to 4K@60Hz (4:4:4)
MAX. RANGE
4K@60 4:4:4 – 20m (115ft); 10m to PT-3H2, 10m to display
4K@60 4:2:0 / 4K@30 – 40m (130ft); 25m to PT-3H2, 15m to display
1080p@60 – 45m (150ft): 30m to PT-3H2, 15m to display
STANDARDS COMPLIANCE
HDMI2.0, HDCP2.2
HDMI SUPPORT
ARC, CEC
POWER CONSUMPTION
5V DC, 150mA
OPERATING TEMPERATURE
0°C to +70°C (32°F to 158°F)
OPERATING HUMIDITY
10% to 85% RH (no condensation)
STORAGE TEMPERATURE
-10°C to +80°C (14°F to 176°F)
STORAGE HUMIDITY
5% to 90% RH (no condensation)
EXTERNAL POWER SOURCE (OPTIONAL)
5V, 150mA on microUSB connector
PRODUCT DIMENSION
14.60cm x 2.00cm x 9.50cm (5.75″ x 0.79″ x 3.74″ ) W, D, H
PRODUCT WEIGHT
0.5kg (1.1lbs) approx
SHIPPING DIMENSION
24.60cm x 8.60cm x 20.10cm (9.69″ x 3.39″ x 7.91″ ) W, D, H
SHIPPING WEIGHT
1.1kg (2.4lbs) approx
