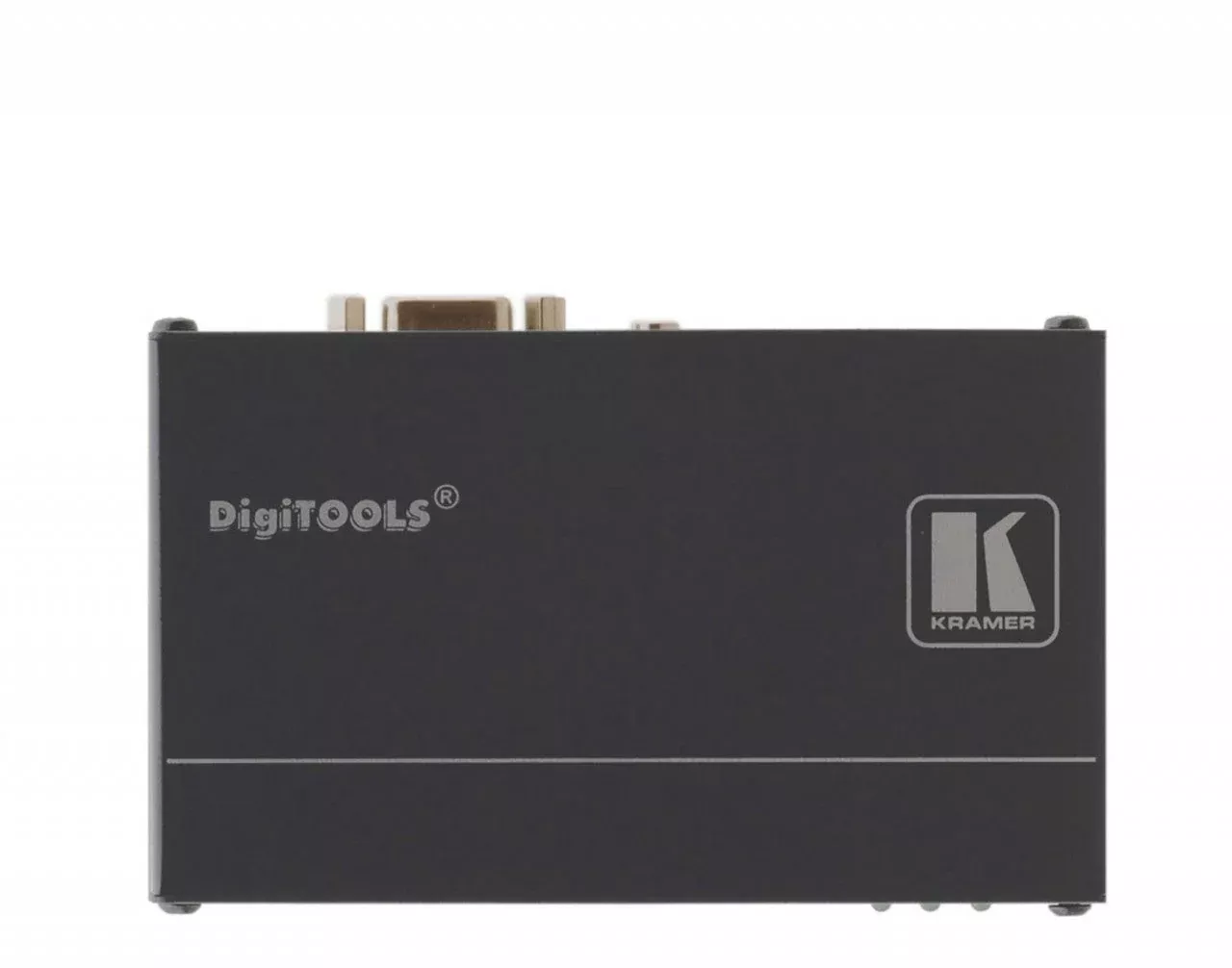

Kramer TP-574 HDMI, Bidirectional RS-232 & IR over Twisted Pair Receiver
The Kramer TP574 HDMI, Bidirectional RS-232 & IR over Twisted Pair Receiver is a DGKat twisted pair receiver for HDMI, bidirectional RS-232 and infrared signals. The TP-573 converts the input signals to a twisted pair signal and the TP-574 converts it back to HDMI, RS-232 and infrared signals
Key Features
- Max. Data Rate – 4.95Gbps
- HDTV Compatible
- HDCP Compliant
- HDMI Support
- 3D Pass-Through
- EDID PassThru
- Bidirectional RS-232 & IR Interface
- DGKat Signal Integration
- Power Connect System
- Compact DigiTOOLS
Technical Specs
Inputs
1 x CAT 5 In on an RJ-45 connector
Outputs
1 x HDMI connector
1 x Bidirectional IR port on a 3.5mm mini jack
1 x Bidirectional RS-232 port on a 9-pin D-sub connector
Bandwidth
4.95Gbps (1.65Gbps per graphic channel)
Compliance with HDMI Standard
Supports HDMI and HDCP
Power Consumption
12V DC from TP-573
Dimensions (W x D x H)
12.1cm x 7.18cm x 2.42cm (4.76” x 2.83” x 0.95”)
Weight
0.3kg (0.67lbs.) approx.
Accessories
12V DC power supply
Options
RK-3T 19” rack mount, Kramer remote external
