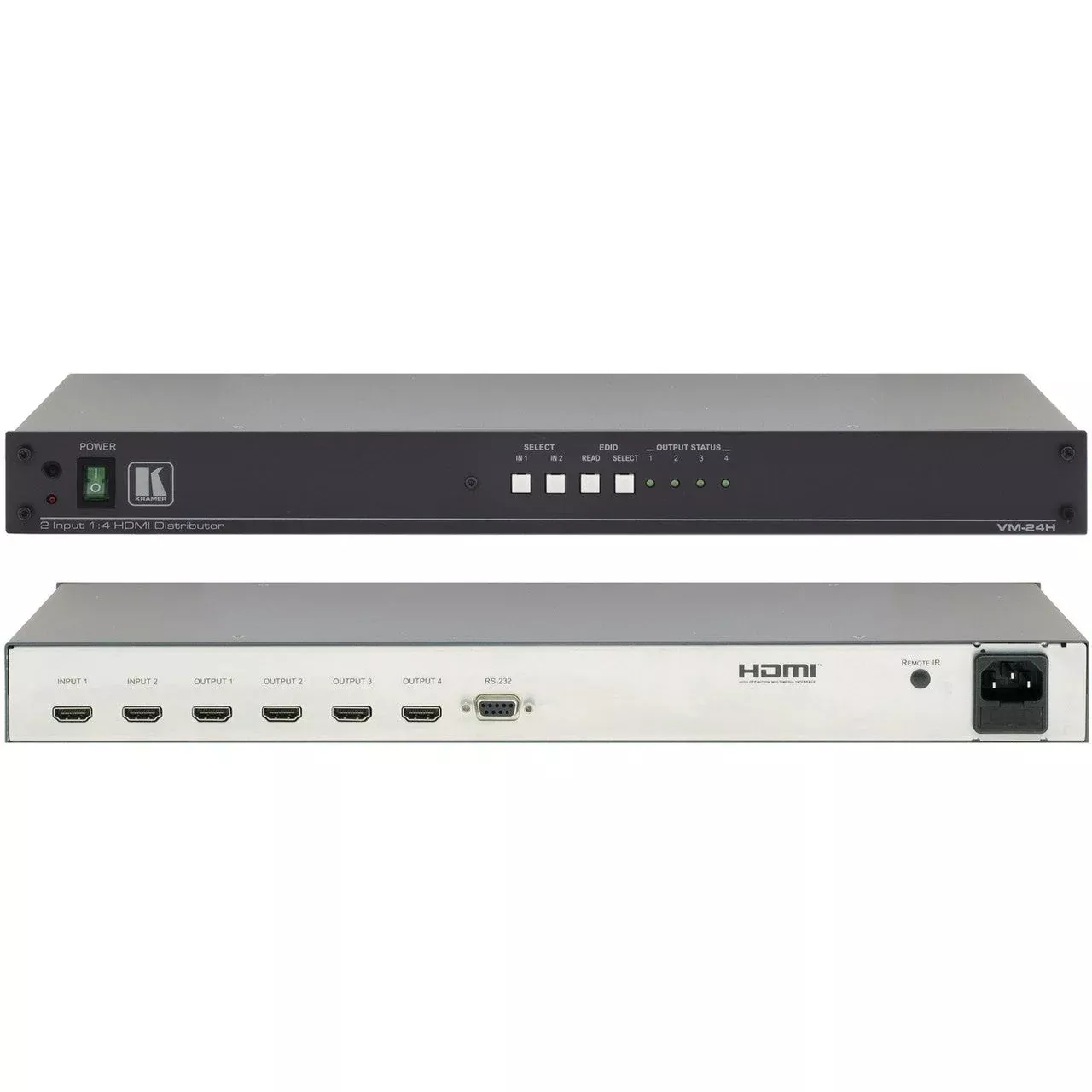

Kramer VM-24H 2×1:4 HDMI Distribution Amplifier
The VM-24H is a distribution amplifier for HDMI signals. The unit reclocks and equalizes one of two selectable input signals and distributes it to four identical outputs.
Key Features
- Max. Data Rate – 6.75Gbps (2.25Gbps per graphic channel)
- HDTV Compatible
- HDCP Compliant
- HDMI Support – Deep Color, x.v.Color, Lip Sync, CEC
- 3D Pass-Through
- I-EDIDPro Kramer Intelligent EDID Processing – Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems
- Active Output LED Indicators
- Control – Front panel, RS-232, IR switching
- Worldwide Power Supply – 100-240V AC
- Standard 19 inch Rack Mount Size – 1U. Rack ears included
Technical Specifications
Inputs
2 HDMI connectors
Outputs
4 HDMI connectors
Bandwidth
6.75Gbps (2.25Gbps per graphic channel)
Compliance with HDMI Standard
Supports HDMI and HDCP
Controls
EDID SELECT, EDID READ, IN 1, IN 2 buttons, RS-232, IR
Indicator LEDS
Output status LEDs
Power Consumption
100-240V AC, 50/60Hz, 16VA
Shipping Dimensions
55.00cm x 27.60cm x 10.70cm (21.65 x 10.87 x 4.21 inches) W, D, H
Shipping Weight
2.5kg (5.5lbs) approx
Included Accessories
Power cord, null-modem adapter, Windows-based control software, IR remote control
Options
External remote IR receiver cable
