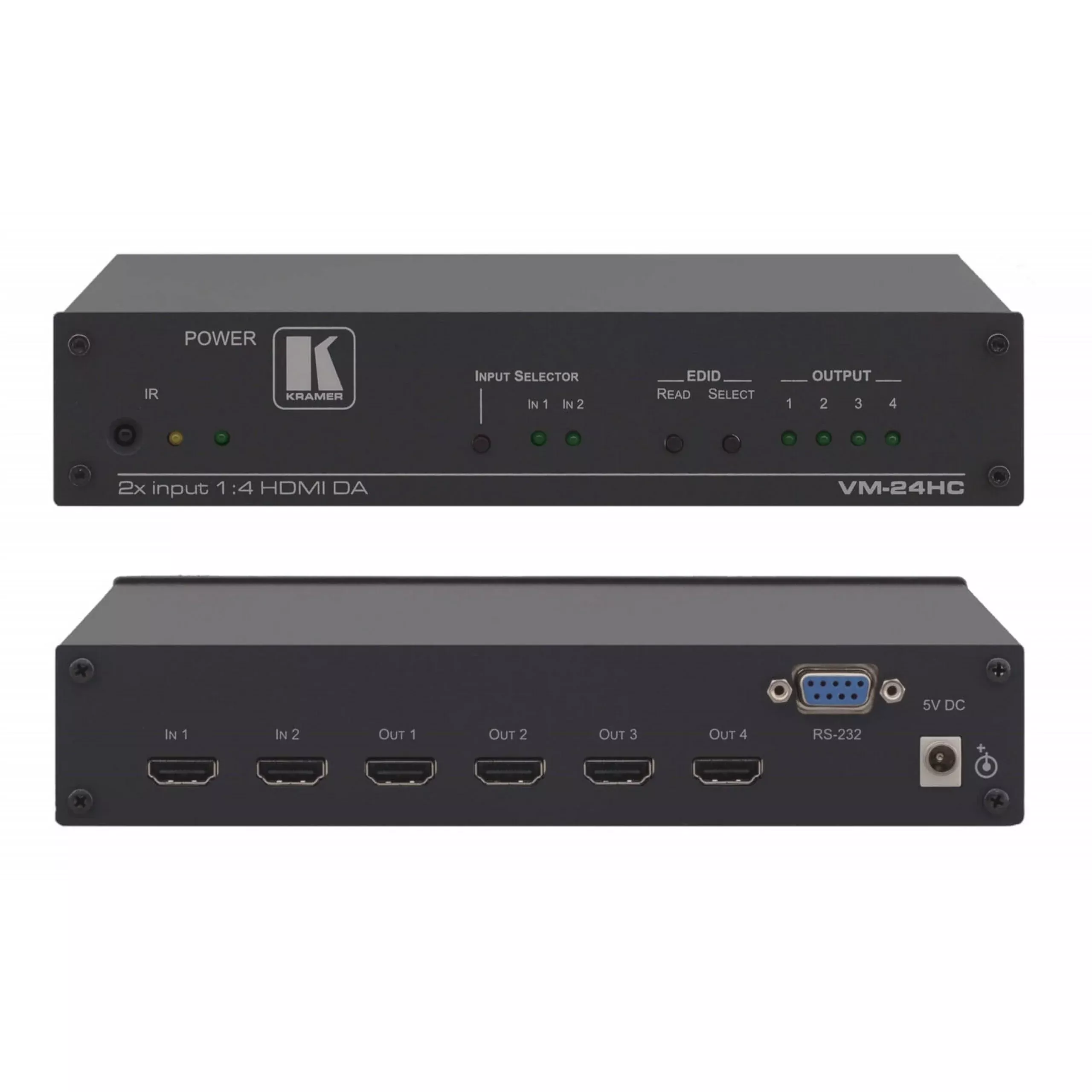

Kramer VM-24HC 2×1:4 Compact HDMI Switchable DA
The VM-24HCis a high-performanceswitcher and distribution amplifier for HDMI signals. Theunit accepts one of two HDMI inputs and distributes the selected signal to fourHDMI outputs.
Key Features
- Max. DataRate – 6.75Gbps (2.25Gbps per graphics channel).
- HDTVCompatible.
- HDCPCompliant.
- EDID Pass-through- Pass-through algorithm ensures Plug and Play operation for HDMI source anddisplay systems.
- EDIDHandling – Acquires the EDID from one output, from all connected outputs (auto-mix)or uses a default EDID.
- Kramer Equalization& re-Klocking Technology – Rebuilds the digital signal to travel longerdistances.
- HDMI Support- With Deep Color, x.v.Color, up to 7.1 Uncompressed Audio Channels.
- 3D Pass-Through.
- FlexibleControl Options – Front panel, IR remote & RS-232.
- Desktop Size- Compact size. 2 units can be rack mounted side-by-side in a 1U rack spacewith the recommended rack adapter.
Technical Specifications
INPUTS
2 HDMIconnectors
OUTPUTS
4 HDMIconnectors
MAX. DATA RATE
6.75Gbps(2.25Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD
SupportsHDMI and HDCP
CONTROLS
EDID SELECT,EDID READ, IN 1, IN 2 buttons, RS-232, IR
INDICATORS
POWER, IR,OUTPUT LEDs
POWER CONSUMPTION
5V DC, 1.1A
OPERATING TEMPERATURE
0 to +40C(32 to 104F)
STORAGE TEMPERATURE
-40 to+70C (-40 to 158F)
HUMIDITY
10% to 90%,RHL non-condensing
ACCESSORIES
Included:Power supply
PRODUCT DIMENSION
21.46cm x16.30cm x 4.36cm (8.45″ x 6.42″ x 1.72″ ) W, D, H
PRODUCT WEIGHT
0.9kg(1.9lbs) approx.
