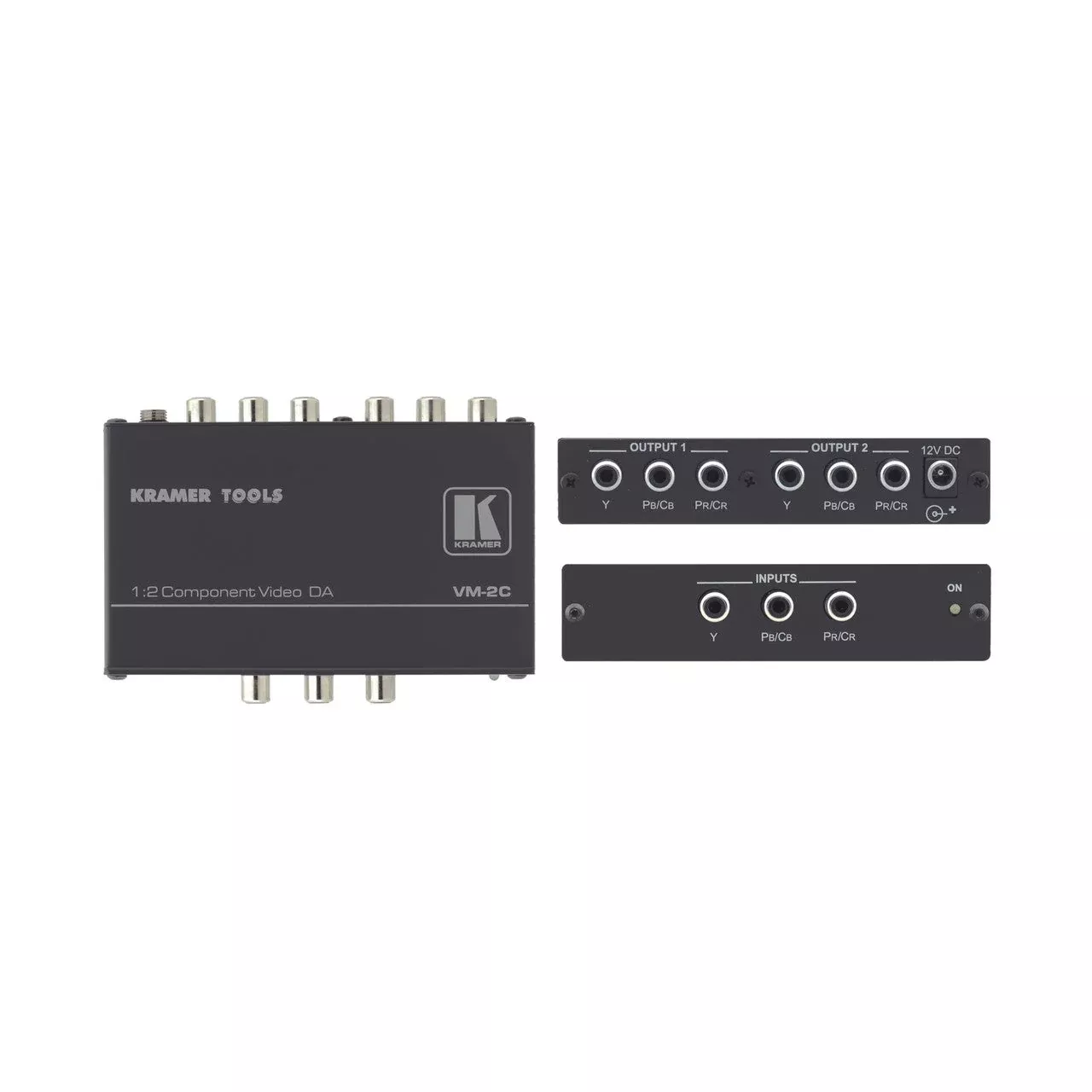

Kramer VM-2C 1:2 Component Video Distribution Amplifier
The VM-2C is a high-performance distribution amplifier for component video (RGB/YUV) signals. It takes one input, provides correct buffering and isolation and distributes the signal to two identical outputs.
Key Features
- High Bandwidth – 510MHz (-3dB)
- HDTV Compatible
Technical Specifications
INPUT
1 component video (Y, Pb/Cb, Pr/Cr, or Y, U, V), 1Vpp/75 OHMS on RCA connectors
OUTPUTS
2 component video (Y, Pb/Cb, Pr/Cr, or Y, U, V), 1Vpp/75 OHMS on RCA connectors
MAX. OUTPUT LEVEL
2.4Vpp
BANDWIDTH (-3DB)
510MHz
DIFF. GAIN
0.03%
DIFF. PHASE
0.03Deg
K-FACTOR
<0.05%
S/N RATIO
73dB weighted
CROSSTALK (ALL HOSTILE)
58dB @5MHz
COUPLING
DC
POWER CONSUMPTION
12V DC, 71mA
INCLUDED ACCESSORIES
Power supply, mounting bracket
PRODUCT DIMENSION
12.00cm x 7.15cm x 2.44cm (4.72″ x 2.81″ x 0.96″ ) W, D, H
SHIPPING DIMENSION
23.20cm x 12.00cm x 8.90cm (9.13″ x 4.72″ x 3.50″ ) W, D, H
SHIPPING WEIGHT
0.3kg (0.7lbs) approx.
PRODUCT WEIGHT
0.1kg (0.3lbs) approx.
