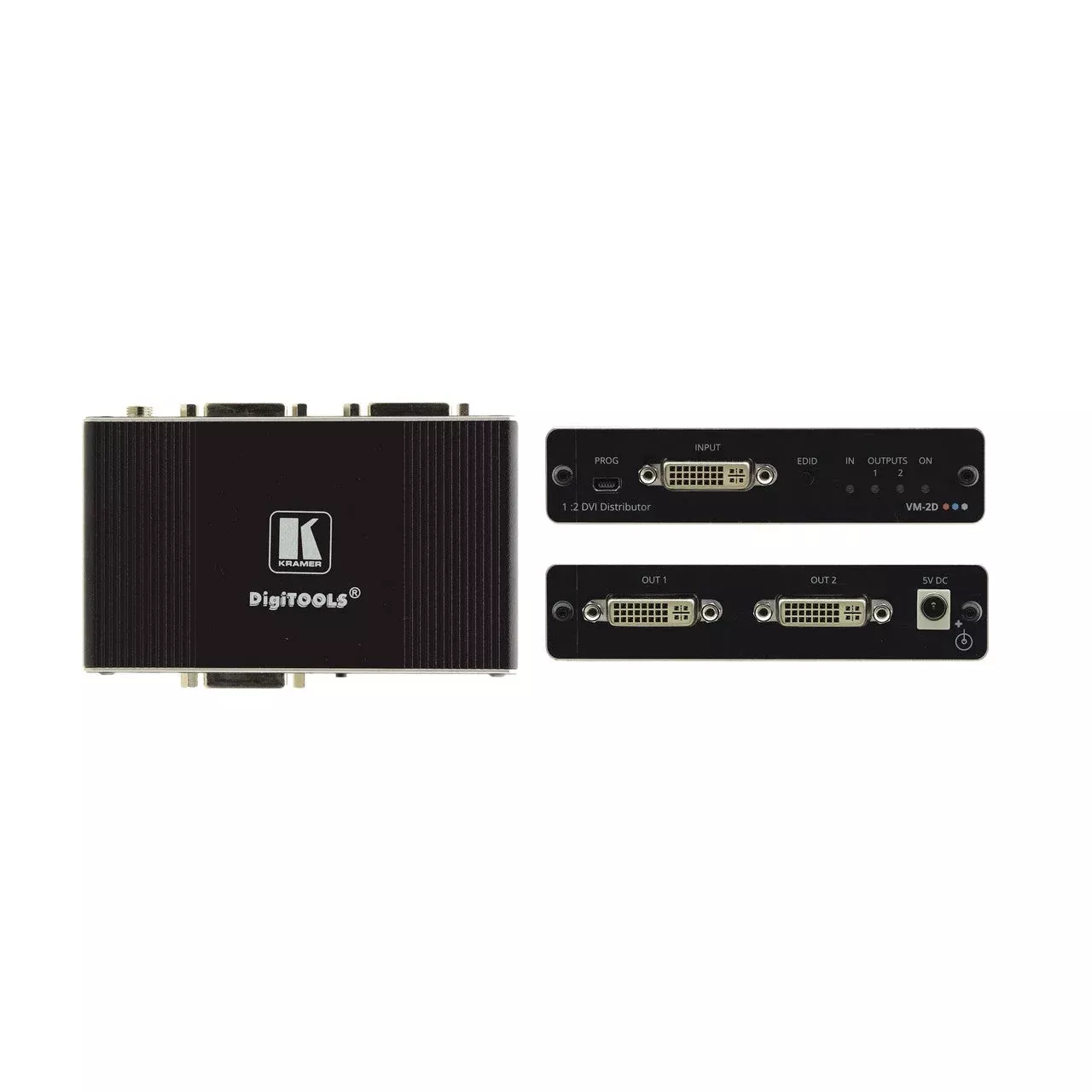

Kramer VM-2D 1:2 4K60 4:2:0 DVI DA
VM-2D is a1:2 distribution amplifier for up to 4K@60Hz (4:2:0) HDMI 2.0 signals,complying with HDCP 1.4 content protection standard, via single-link DVI-Iconnections. The unit takes one DVI input, equalizes and reclocks the signal,and distributes it to two identical outputs.
Key Features
- HighPerformance Distributor – Professional 1:2 DVI distributor for up to 4K@60Hz(4:2:0) video resolution signals. Via singlelink DVII connections, one HDMI2.0, HDCP 1.4 input signal is amplified and distributed to two identical outputsignals, with signals rebuilt using Kramer Equalization & reKlockingTechnology to gain longer distances.
- SecuredOperation – Highlysecured operation is ensured by lockable wiring connectivitywith protection against unintentional cables connection.
HDMI SignalTransmission – HDMI 2.0 and HDCP 1.4 compliant signal, supporting Deep Color,x.v.Color, Lip Sync, 7.1 PCM, Dolby TrueHD, DTSHD, 2K, 4K, and 3D. EDIDsignals are passed through from the source to the displays. - IEDIDProKramer Intelligent EDID Processing – Intelligent EDID handling, processing andpassthrough algorithm that ensures Plug and Play operation for DVI source anddisplay systems.
- UserFriendlyOperation – Comprehensive signal distribution features and signal modeforcingoptions such as RGB forcing, with convenient EDID selection front panel button.
- CostEffectiveField Maintenance – MiniUSB connection for simple field firmware upgrade usingthe Kramer KUpload tool. Status indicators for fast and effectivetroubleshooting.
- EasyInstallation – Compact TOOLS fanless enclosure for overceiling mounting, orsidebyside rack mounting.
TechnicalSpecifications
INPUTS
1 DVI: On aDVII female connector
OUTPUTS
2 DVI: OnDVII female connectors
VIDEO
Max. DataRate: 10.2Gbps (3.4Gbps per graphic channel)
Max.Resolution: 4K@60Hz (4:2:0) 24bpp
StandardsCompliance: DVI 1.0, HDMI 2.0 and HDCP 1.4
USER INTERFACE
Controls: EDIDsetup button, RS-232 port on miniUSB female connector for firmware upgrade
IndicationLEDS: OUTPUTS 1 to 2, ACTIVE input and power ON LEDs
POWER
Source: 5VDC, 4A
Consumption:5V DC, 800mA
ENCLOSURE
Size: Tools
Type:Aluminium
Cooling:Convection ventilation
ENVIRONMENTAL CONDITIONS
OperatingTemperature: 0 to +40C (32 to 104F)
StorageTemperature: -40 to +70C (-40 to 158F)
Humidity:10% to 90%, RHL noncondensing
ACCESSORIES
Included:Power supply, bracket set
Optional:RK-3T 19″ rack adapter
PRODUCT DIMENSION
12.00cm x7.15cm x 2.44cm (4.72″ x 2.81″ x 0.96″ ) W, D, H
PRODUCT WEIGHT
0.3kg(0.6lbs) approx
