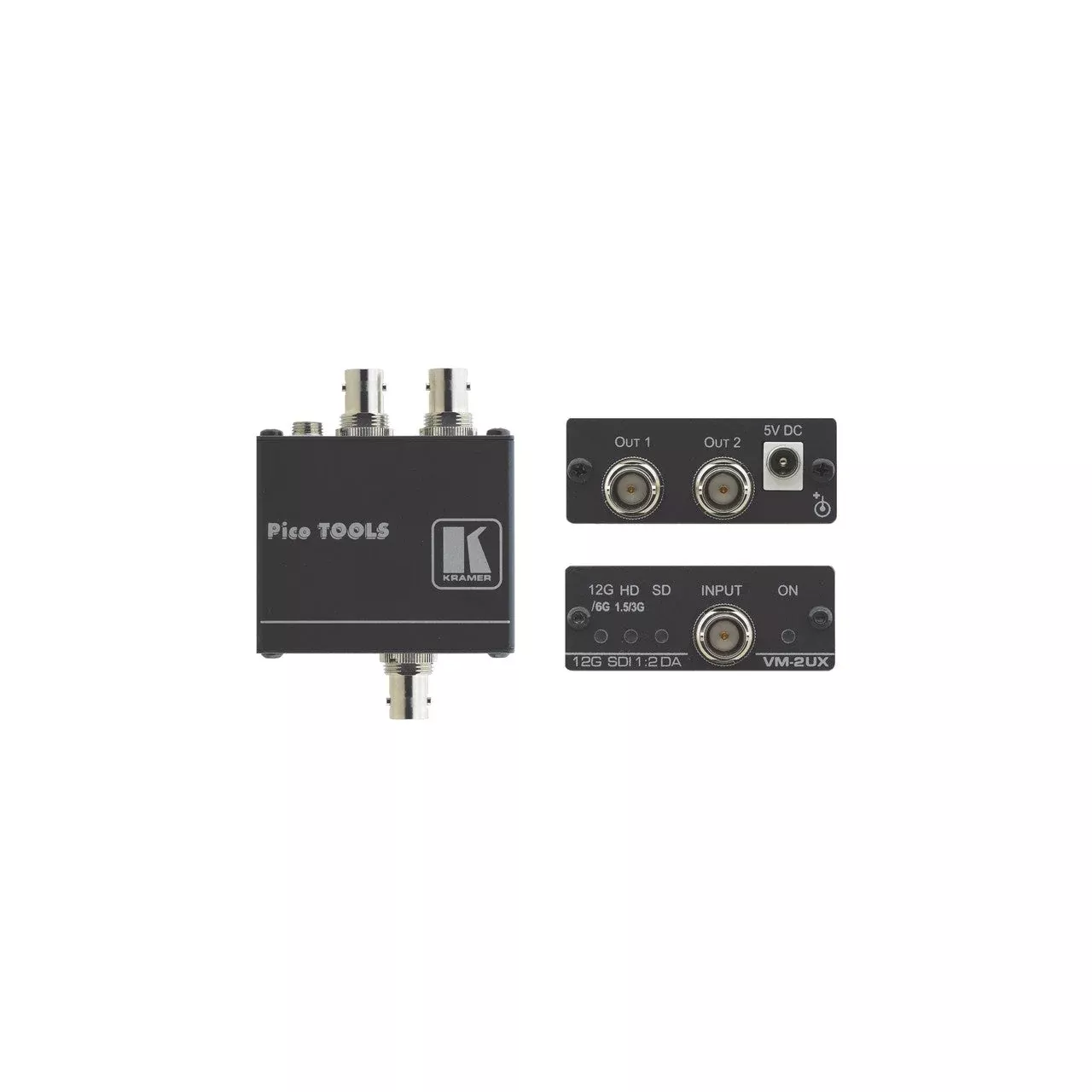

Kramer VM-2UX 1:2 4K 12G SDI Distribution Amplifier
The VM-2UXis a compact and high-performance1:2 4K distributor for standard broadcast-gradeSDI signals of up to 12G transmitted data rate. It auto-adapts to data rate ofone SDI input signal, equalizes and re-clocks the signal to improve transmittedsignal reach, and distributes the signal to two identical SDI outputs.
Key Features
- 1:2 SDIdistributor
- Resolution -Up to 4K (4:2:2) 30bpp
- Data rate -Auto-adapting, up to 12Gbps
- Input Reach -Up to 80m (260ft) at 12Gbps
- Compliance -SMPTE standards
- Lockableconnections
TechnicalSpecifications
INPUT
1 SMPTE 259M(SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) andST-2082 (12G-SDI) compliant serial video input on a 75OHMS BNC connector
OUTPUTS
2 equalizedand reclocked SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI),ST-2081 (6G-SDI) and ST-2082 (12G-SDI) outputs on 75OHMS BNC connectors
CABLE EQUALIZATION REACH
12Gbps: Upto 80m (260ft) using Kramer cables, 3Gbps and 6Gbps: Up to 100m (330ft)
1.5Gbps: Upto 200m (660ft), SD: Up to 300m (980ft)
VIDEO
Up to4K@60Hz (4:2:2) 30bpp resolution, 270Mbps up to12Gbps data rate
MAXIMUM OUTPUT LEVEL
800mVpp/75OHMS
COUPLING
AC
STANDARDS COMPLIANCE
SMPTE 259M(SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI), ST-2082(12G-SDI)
POWER CONSUMPTION
5V DC, 250mA
POWER SOURCE
5.2V/4A
OPERATING TEMPERATURE
0 to +40C(32 to 104F)
STORAGE TEMPERATURE
-40 to +70C(-40 to 158F)
HUMIDITY
10% to 90%,RHL non-condensing
DIMENSIONS
6.2cm x5.2cm x 2.4cm (2.4″ x 2.05″ x 0.9″) W, D, H
WEIGHT
0.093kg(0.205lbs) approx
SHIPPING DIMENSIONS
15.7cm x12cm x 8.7cm (6.18” x 4.7” x 3.42”) W, D, H
SHIPPING WEIGHT
0.52kg (1.15lbs)approx
INCLUDED ACCESSORIES
Powersupply, mounting bracket
PRODUCT DIMENSION
6.22cm x5.18cm x 2.44cm (2.45″ x 2.04″ x 0.96″ ) W, D, H
PRODUCT WEIGHT
0.5kg(1.1lbs) approx.
SHIPPING DIMENSION
15.70cm x12.00cm x 8.70cm (6.18″ x 4.72″ x 3.43″ ) W, D, H
SHIPPING WEIGHT
0.9kg(2.1lbs) approx.
