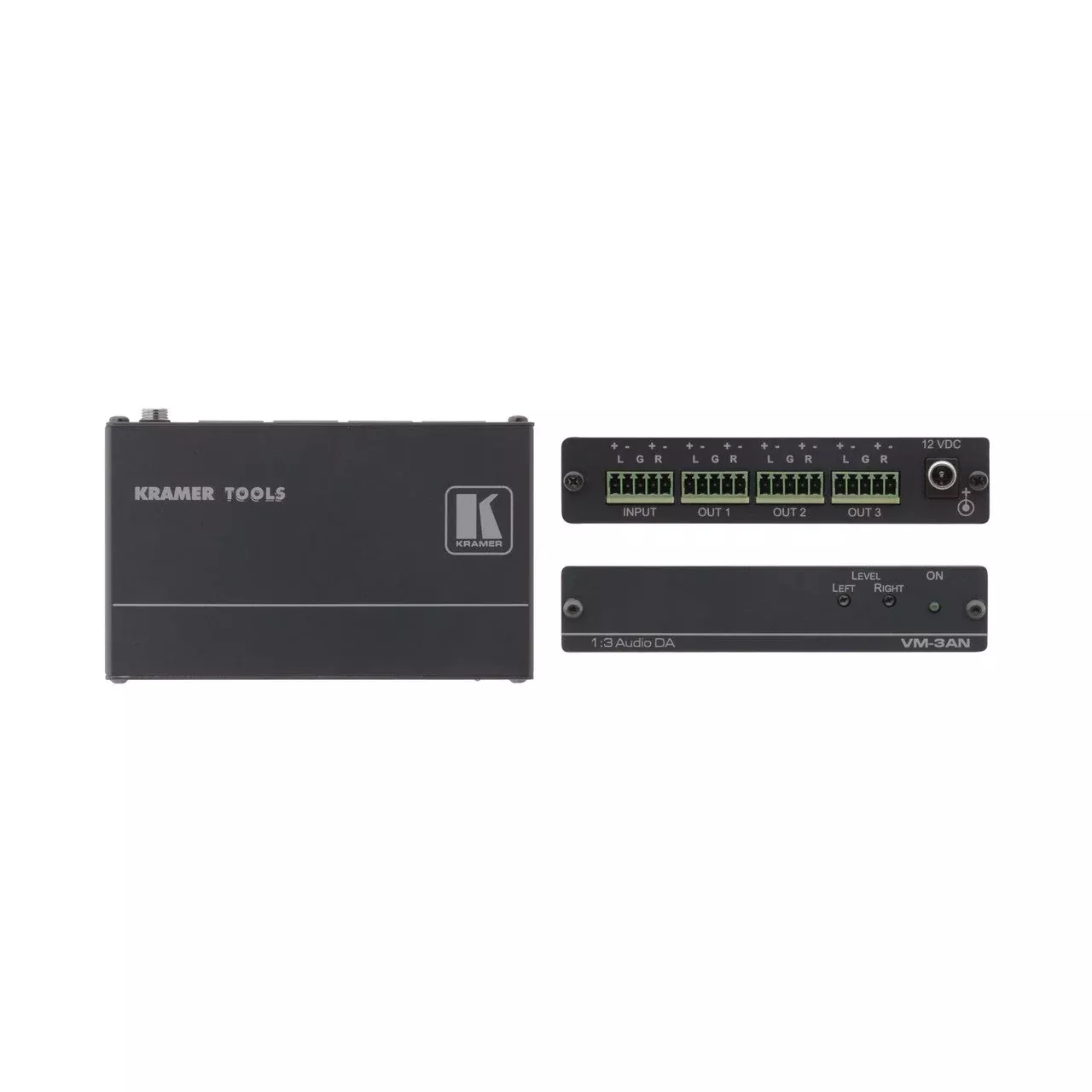

Kramer VM-3AN 1:3 Balanced Stereo Audio Distribution Amplifier
The VM-3ANis a high-performance distribution amplifier for balanced stereo audio signals.The unit takes one stereo input and distributes the signal to three identicaloutputs.
Key Features
- S/N Ratio -90dB
- L & RLevel (Gain) Controls
Technical Specifications
INPUT
1 balancedstereo audio on a 5-pin terminal block
OUTPUTS
3 balancedstereo audio on 5-pin terminal blocks
MAX. OUTPUT LEVEL
Audio:18.5Vpp
BANDWIDTH (-3DB)
>100 kHz
S/N RATIO
90dB @1kHz
CONTROL
Output levelcontrol:-77 to +6dB, R+/-, L+/ – channels
AUDIO THD + NOISE
0.008%
AUDIO 2D HARMONIC
0.001%
POWER CONSUMPTION
12V DC, 89mA
INCLUDED ACCESSORIES
Power supply
PRODUCT DIMENSION
12.00cm x7.15cm x 2.44cm (4.72″ x 2.81″ x 0.96″ ) W, D, H
PRODUCT WEIGHT
0.2kg(0.4lbs) approx.
SHIPPING DIMENSION
15.70cm x12.00cm x 8.70cm (6.18″ x 4.72″ x 3.43″ ) W, D, H
SHIPPING WEIGHT
0.5kg(1.1lbs) approx.
