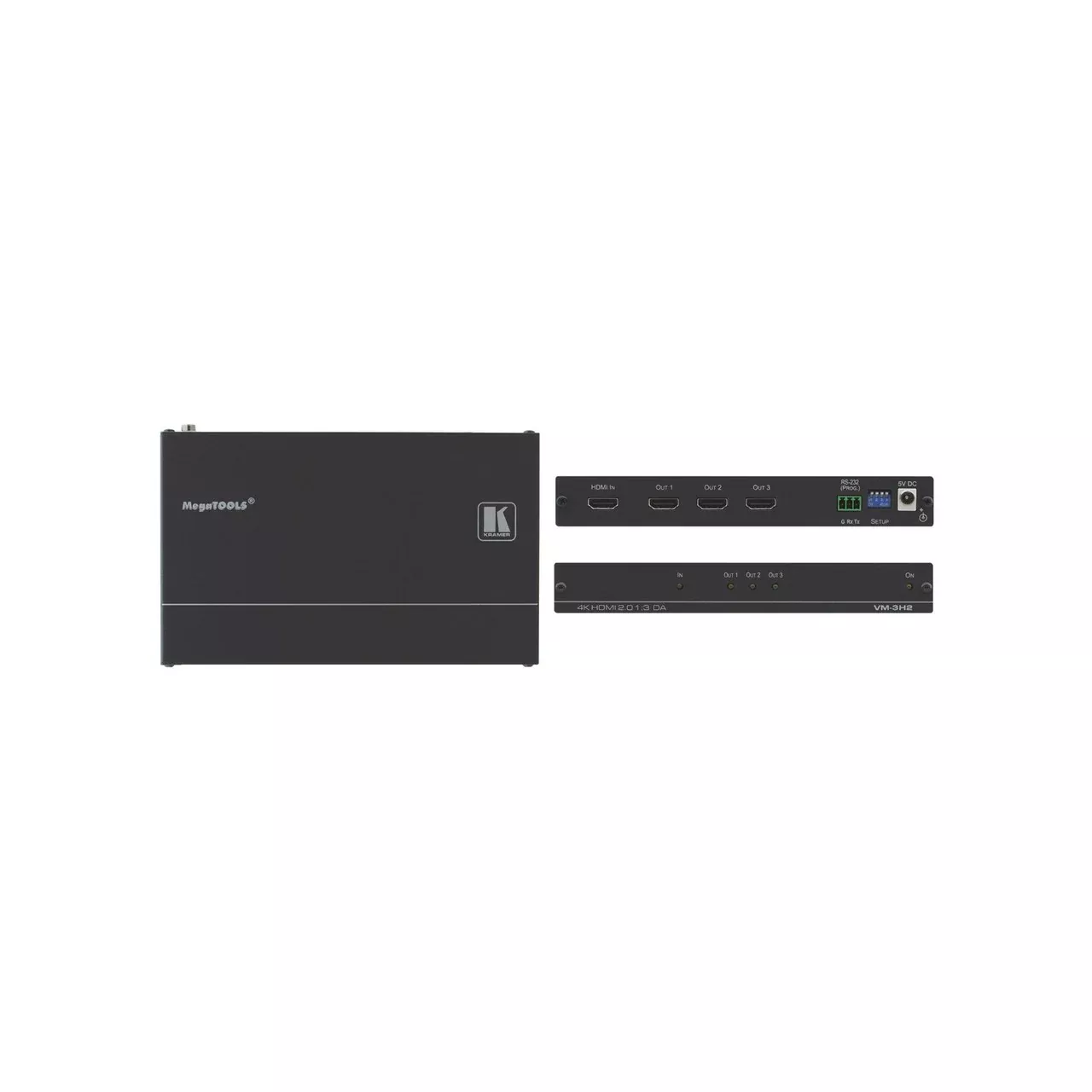

Kramer VM-3H2 1:3 4K HDMI HDCP 2.0 Distributor
The VM-3H2 is a 1:3 distribution amplifier for up to 4K@60Hz (4:4:4) HDMI 2.0 signals, complying with HDCP 2.2 content protection standard. The unit takes one HDMI input, equalizes and reclocks the signal and distributes it to three identical outputs.
Key Features
- 1:3 HDMI distributor
- Resolution – Up to 4K@60Hz (4:4:4)
- Bandwidth – Up to 17.82Gbps
- Compliance – HDMI 2.0, HDCP 2.2
- Simple, intelligent EDID operation
- Force RGB
- HDCP authorization control
- Size – MegaTOOLS – Mount 2 units side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
- Audio – E
Technical Specifications
INPUT
1 HDMI connector
OUTPUTS
3 HDMI connectors
PORT
1 RS-232 for firmware upgrade
MAX. DATA RATE
17.82Gbps (5.94Gbps per graphic channel) supporting resolutions up to 4K @60Hz (4.4.4)
COMPLIANCE WITH HDMI STANDARD
Supports HDMI 2.0 and HDCP 2.2
INDICATOR LEDS
ON, IN, OUT 1 to 3
OPERATING TEMPERATURE
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-40° to +70°C (-40° to 158°F)
HUMIDITY
10% to 90%, RHL noncondensing
POWER CONSUMPTION
5V DC, 730mA
INCLUDED ACCESSORIES
Power supply
OPTIONS
RK-T2B 19” rack adapter
PRODUCT DIMENSION
18.75cm x 11.50cm x 2.54cm (7.38″ x 4.53″ x 1.00″ ) W, D, H
PRODUCT WEIGHT
0.4kg (0.9lbs) approx
SHIPPING DIMENSION
34.50cm x 16.50cm x 5.20cm (13.58″ x 6.50″ x 2.05″ ) W, D, H
SHIPPING WEIGHT
1.0kg (2.1lbs) approx
