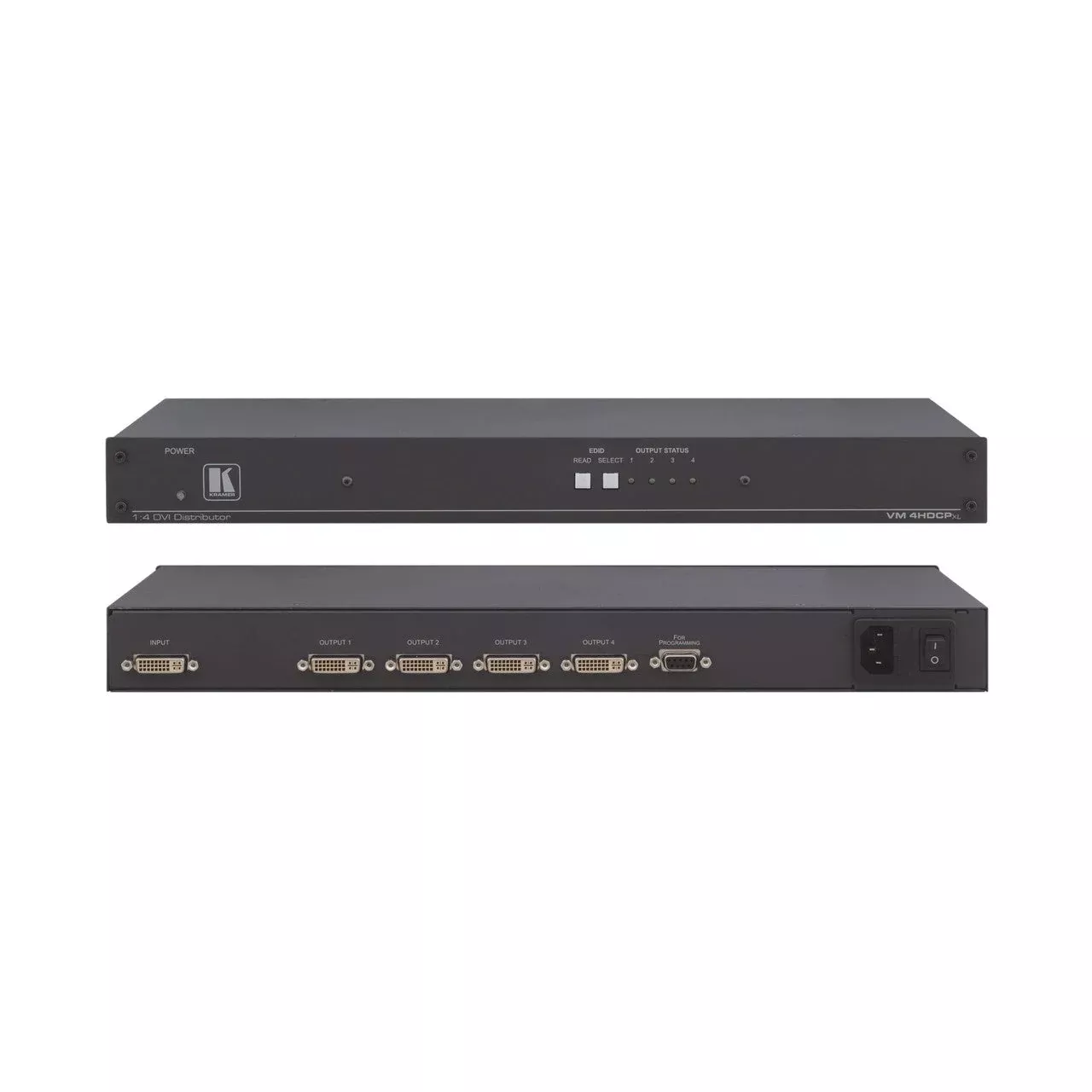

Kramer VM-4HDCPXL 1:4 DVI HDCP Distribution Amplifier
TheVM-4HDCPxl is a high-performance distribution amplifier for DVI signals. Theunit reclocks and equalizes one input signal and distributes it to fouridentical outputs.
Key Features
- Max. DataRate – 6.75Gbps (2.25Gbps per graphic channel)
- Max.Resolution – Up to UXGA & 1080p
- HDTVCompatible
- HDCPCompliant
- EDID Pass-through- Pass-through algorithm ensures Plug and Play operation for DVI source anddisplay systems
- Worldwide PowerSupply – 100-240V AC
- Standard 19”Rack Mount Size – 1U. Rack “ears” included
TechnicalSpecifications
INPUT
1 DVI,1.2Vpp on a DVI Molex 24-pin (F) connector
DDC signal5Vpp (TTL)
OUTPUTS
4 DVI,1.2Vpp on DVI Molex 24-pin (F) connectors
DDC signal5Vpp (TTL)
MAX. DATA RATE
6.75Gbps(2.25Gbps per graphic channel)
CONTROLS
EDID SELECT,EDID READ
INDICATOR LEDS
OUTPUTSTATUS LEDs
POWER CONSUMPTION
100-240V AC,50/60Hz 17VA
INCLUDED ACCESSORIES
Power cord,rack “ears”
PRODUCT DIMENSION
19″ x7.20 x 1U (43.6cm x 18.30cm 4.36cm) W, D, H
PRODUCT WEIGHT
1.5kg(3.2lbs) approx.
SHIPPING DIMENSION
55.00cm x27.60cm x 10.70cm (21.65″ x 10.87″ x 4.21″ ) W, D, H
SHIPPING WEIGHT
2.2kg(4.9lbs) approx.
