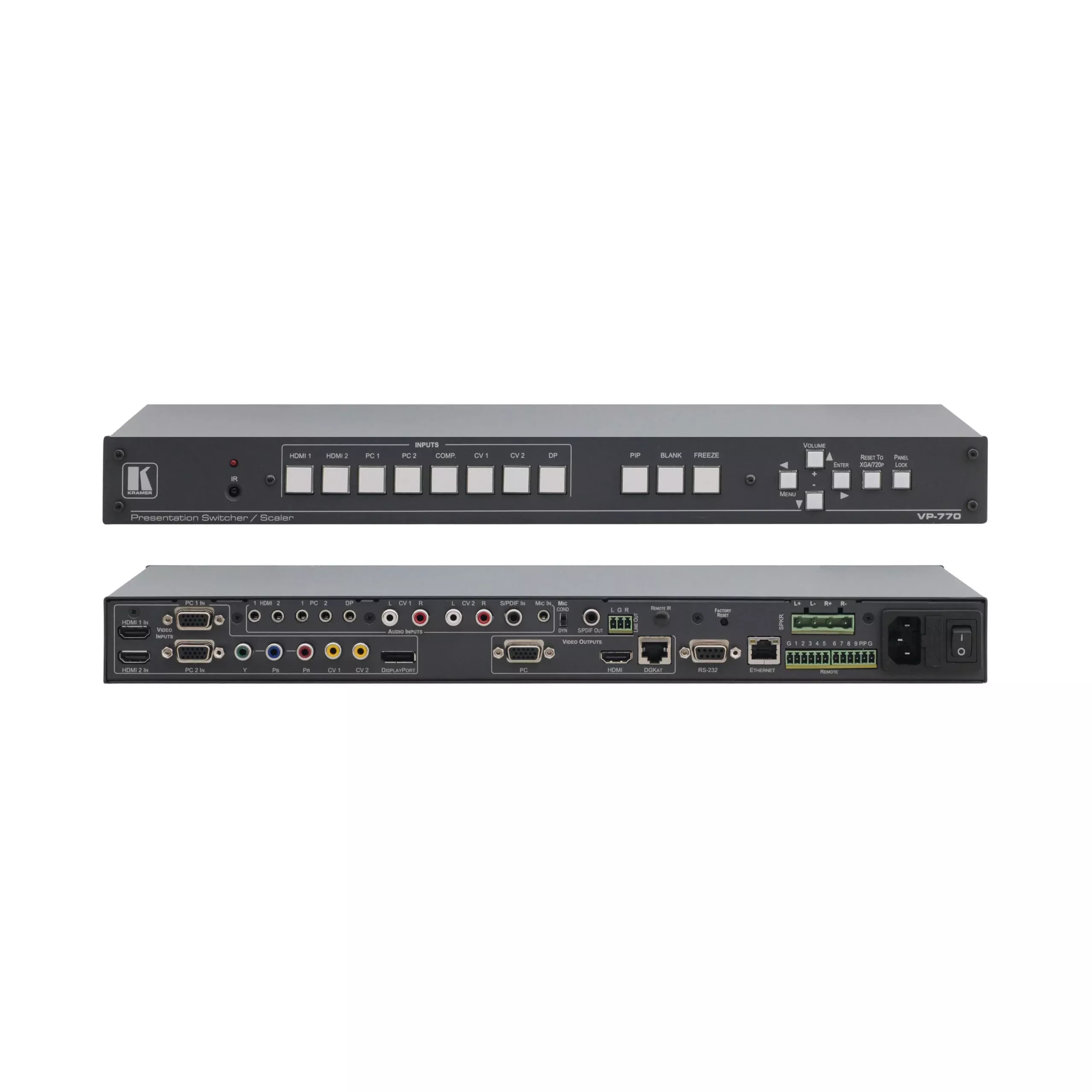

Kramer VP-770 8-Input ProScale Presentation Switcher/Scaler
The VP-770is a high-performancepresentation switcher and scaler for composite video,component video, DisplayPort, computer graphics video, and HDMI signals. Itscales the video, embeds the audio and outputs the signal to HDMI, computergraphics and DGKat twisted pair, together with digital audio, unbalanced stereoand a 10-watt amplified balanced stereo speaker output.
Key Features
- PixPerfectScaling Technology
- Fade-Thru-BlackClean Ultra Fast Switching
- K-IIT XLPicture-in-Picture
- Luma Keyingvia PiP Window
- Eight VideoInputs, Three Video Outputs
- MultipleOutput Resolutions – Up to 2K and 1080p
- 3D CombFiltering & Powerful Noise Reduction Filters
- HDMI, HDCP& Deep Color Support
- AdvancedEDID Management
- SelectablePower Save Modes
- Embeds/de-embedsHDMI Audio with Audio Delay
- Control – RS-232,IR & Ethernet
Technical Specifications
INPUTS
2 HDMI (deepcolor) connectors,
2 VGA on 15-pinHD connectors,
1 componentvideo on 3 RCA connectors,
2 compositevideo on RCA connectors,
1DisplayPort connector,
2 HDMI, 2VGA, 1 DP, 2 CV unbalanced stereo audio on 3.5mm mini jack connectors,
1 S/PDIF(for component video input) digital audio on an RCA connector,
1 mic on a3.5mm mini jack connector
OUTPUTS
1 VGA on a15-pin HD connector,
1 HDMI (deepcolor)connector,
1 DGKat onan RJ-45 connector,
1 S/PDIFdigital audio on an RCA connector,
1 unbalancedstereo audio on a 3-pin terminal block connector,
12x10Wspeaker amplifier balanced stereo audio on terminal block connectors
COMPLIANCE WITH HDMI STANDARD
SupportsHDMI (deep color) and HDCP, Supports: DisplayPort 1.1a
OUTPUTRESOLUTIONS:640×480@60, 640×480@75, 800×600@50, 800×600@60, 800×600@75,1024×768@50, 1024×768@60, 1024×768@75, 1280×768@50, 1280×768@60, 1280×800@60,1280×1024@50, 1280×1024@60, 1280×1024@75, 1360x768p60, 1366×768@50,1366×768@60, 1400×1050@50, 1400×1050@60, 1600×900@60, 1600×1200@50,1600×1200@60, 1680×1050@60, 1920×1200@60, 480i60, 480p60, 576i50, 576p50,720p50, 720p59.94, 720p60, 1080p23.976, 1080p24, 1080p25, 1080p29.97, 1080p30,1080p50, 1080p59.94, 1080p60, 2048×1080@60Hz, 2048×1080@50Hz
CONTROLS
Front panelbuttons, OSD, IR remote control, RS-232 on a 9-pin D-sub connector, Ethernet,contact closure
OPERATING TEMPERATURE
0 to +40C(32 to 104F)
STORAGE TEMPERATURE
-40 to+70C (-49 to 158F)
HUMIDITY
10% to 90%,RHL non-condensing
POWER SOURCE
100-240V AC,56VA max
INCLUDED ACCESSORIES
Power cord,rack “ears”, IR remote control
PRODUCT DIMENSIONS
19″ x9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H
PRODUCT WEIGHT
2.5kg(5.5lbs) approx.
SHIPPING DIMENSIONS
52.50cm x33.00cm x 10.70cm (20.67″ x 12.99″ x 4.21″ ) W, D, H
SHIPPING WEIGHT
3.6kg(7.9lbs) approx.
