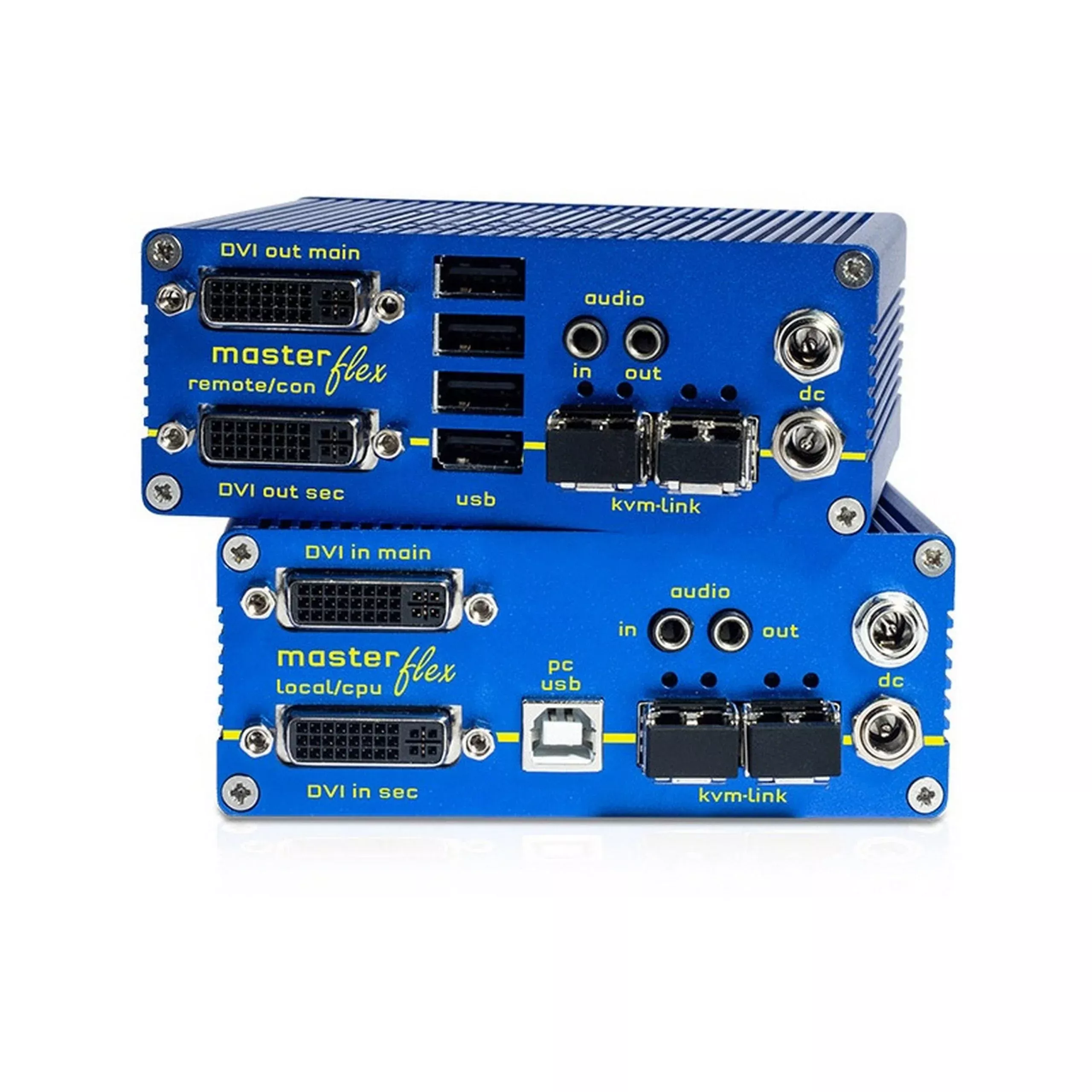

kvm-tec 6023 Masterflex DVI USB Over Dual Fiber Extender Set, LC Duplex Multimode Fiber
The kvm-tec6023 MASTERflex dual is a highly optimized KVM Extender over IP and covers arange of 160km/99mi at a resolution of 1920×1200@60Hz and is available in fiberas dual version. For point to point connection or in Matrix Switching Systemsup to 100 endpoints. Included kvm-tec Switching Manager Software – switchup@work- for intuitiv management in the Switching System.
Key Features
- AutomaticPlug & Play installation
- USBtransmission rate max 480Mbit/s
- Firmwareflash upgrade without cable
- VGA in – DVIout
- DVIextension without loss of quality
- 4 dualextender in 1RU
TechnicalSpecifications
Interfaces
2 x DVI in(no HCDP)
1 x USB-B toPC
1 x 3.5mmjack (Line In)
1 x 3.5mmjack (Line out)
Video
DVI-D max.1920×1200 @ 60Hz
DVI-I max.1920×1200 @ 60Hz
Audio
Analogue -16 Bit – 44kHz – 2 CH
USB
USB 2.0Transparent Max. 480 Mbit/s Mass Storage Devices & Camera Optional
Casing
4.29 x 1.69x 4.23 Inch
Weight
0.65 Lbs
Power Supply
wall power supplyunit 12 VDC 1A max 35V
Power Input
12W
Operation Environment
32 to 113F
Storage Environmnet
-13 to 176F
Cooling
Free airconvection
MTBF
82.820Calculated Hours
Conformity
CE, FCC
Warranty
2 Years
Interface
2x DVI-D out
4 x USB-A(devices)
1 x 3.5mmjack (Line In) 1Vpp
1 x 3.5mmlack (headphone)
2 x 10mW@320Ohm
Video
DVI-D max.1920×1200 @ 60Hz
DVI-I max.1920×1200 @ 60Hz
Audio
Analogue -16 Bit – 44 kHz – 2 CH
USB
USB 2.0transparent max. 480 Mbit/s mass storage devices & camera optional
Casing
4.29 x 1.69x 4.23 Inch
Weight
0.65 Lbs
Power Supply
wall powersupply unit 12 VDC 1A max 35V
Power Input
12W
Operation Environment
32 to 113F
Storage Environmnet
-13 to 176F
Cooling
Free airconvection
MTBF
82.820Calculated Hours
Conformity
CE, FCC
Warranty
2 Years
