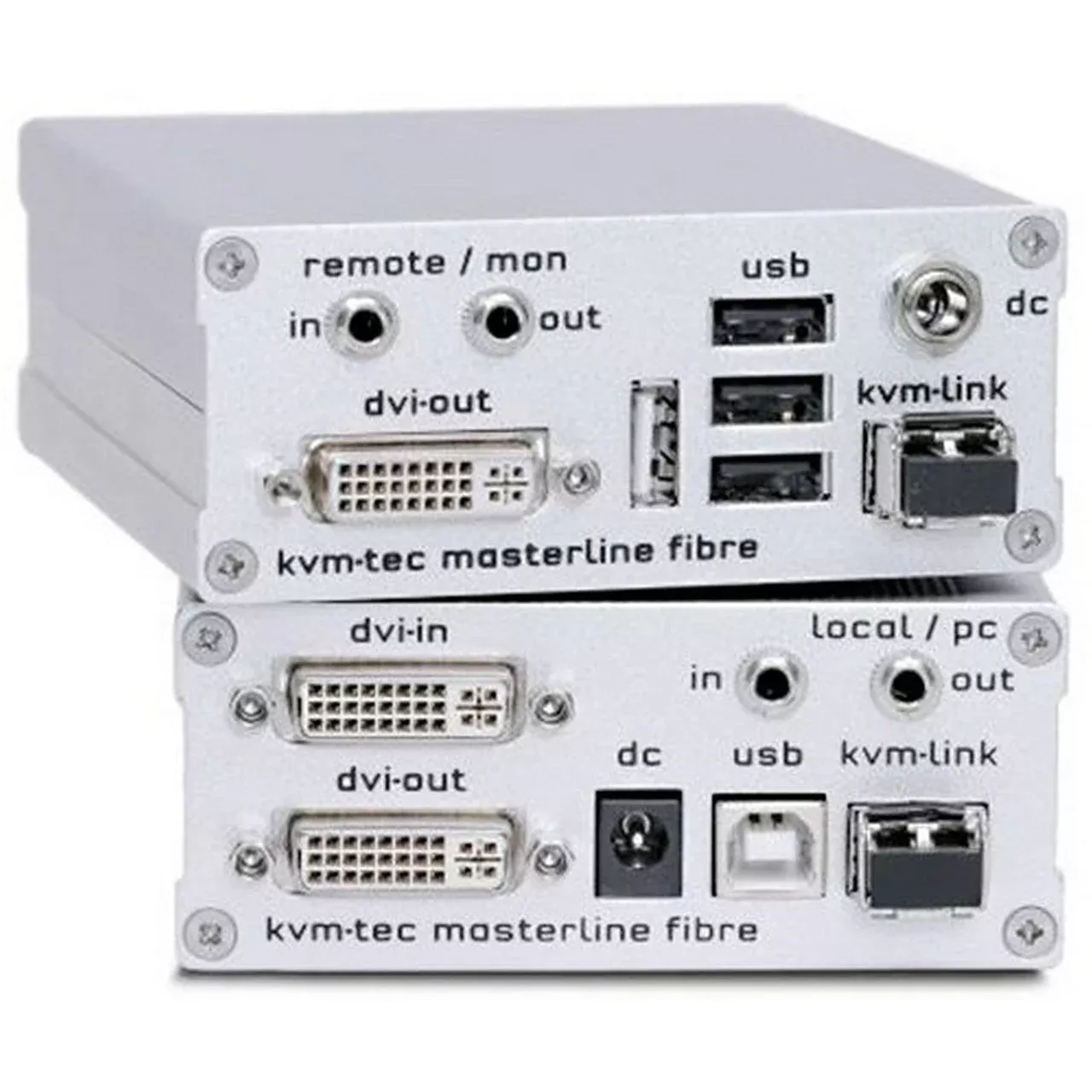

kvm-tec MVX1-F Masterline Extender Single Fiber Set
The highlyoptimized KVM-Tec MVX1-F KVM Extender has a resolution of 1920 x 1200 and isavailable in copper and fi ber in a single and dual version. The copper versionallows loss-free signal trans-mission up to 492 ft range. The fiber version hasa loss-free transmission up to 99 miles. A perfect tuning of the KVM-Tec videocompression with a low latency time enables the signals to be transmittedwithout delay. USB and video is transmitted via the same cable. The DVIextension without loss of quality allows Full HD video to be transmitted inreal time. The transparent USB 2.0 interface supports tablets and touchscreens,sound modules, printers and much more even in the standard version. A USBoption is available for memory sticks and USB hard drives. High reliability androbust design makes the KVM-Tec Extender ideal for many applications.Additionally, the KVM-Tec security feature USB save “prevents theintrusion of computer viruses via the interface by disabling mass storagedevices support such as USB sticks and external hard disk drives. With theMatrix Switching System upgrade code enabled, the MVX Extender can be used witha standard network Switch to create a full KVM Matrix Switching System withoutany additional hardware. Additionally, our intelligent soft-ware, the KVM-TecSwitching Manager, (available separately) provides easy and intuitivemanagement of all KVM. The LWL Multimode SPF module allows for a transmissiondistance of up to 1640ft. using a Duplex Multimode fiber cable with an LC connector.
Key Features
- Resolution1920 x 1200 @ 60 Hz
- Full HDVideo in real time
- USB 2.0transparent
- AutomaticPlug & Play installation
- Only onecable for USB and video
- Local (CPU)/ remote (CON) monitor output
- Firmwareflash upgrade without cable
- Highreliability, robust design
- Ultracompact up to 4 extenders in 19″ 1U
- 19″rack mountable
- DVIextension without loss of quality
- MultimodeSPF modules for longer range of connectivity
TechnicalSpecifications
Interfaces
Video
DVI-I In/Out(no HCDP)
USB 2.0
USB-B – PC,USB-A (devices)
Audio
3.5mm jackplug (Line IN/OUT, Speaker)
Video
Signal Type
DVI-I, DVI-D
Resolution (Digital)
Max. 1920 x1200 @ 60Hz
Resolution (Analog)
Max 1920×1200 @ 60Hz (opt.)
Color Mode
24bit
Audio (optional)
Type
Analog
Bandwith
16bit,44kHz, 2ch
USB
Specification
USB 2.0
Type
Transparent
Rate
Max.480Mbit/s, mass storage and camera optional
Environment
Operating Temperature
32F – 133F
Storage Temperature
-13F -176F
Operating/Storage Humidity
<90%,non-condensing
Cooling
Free airconvection
Power & Physical
Power Supply
External 12VDC 1A, 6W
Casing Material
AnodizedAluminum
Dimensions (HxWxD)
1.57″ x3.83″ x 4.07″
Weight
10.7oz(Local), 10.3oz (Remote)
