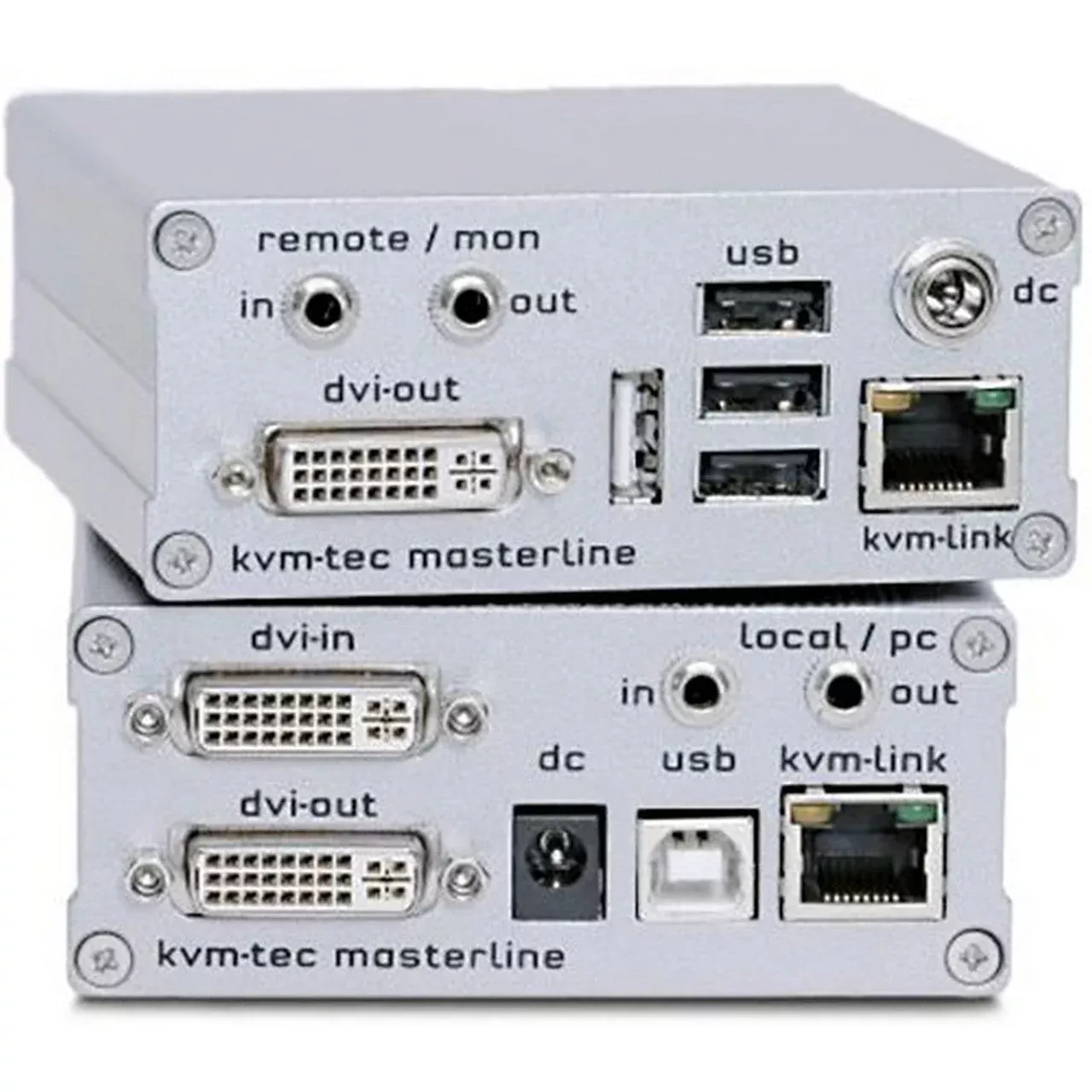

kvm-tec MVX1 Masterline Extender Single Copper Set
The KVM-Techighly optimized MVX1 KVM Extender has a resolution of 1920 x 1200 and isavailable in copper and fi ber in a single and dual version. The copper versionallows loss-free signal trans-mission up to 492 ft range. The fiber version hasa loss-free transmission up to 99 miles. A perfect tuning of the kvm-tec videocompression with a low latency time enables the signals o be transmittedwithout delay. USB and video is transmitted via the same cable. The DVIextension without loss of quality allows Full HD video to be transmitted inreal time. The transparent USB 2.0 interface supports tablets and touchscreens,sound modules, printers and much more even in the standard version. An USBoption is available for me-mory sticks and USB hard drives. High reliability ndrobust design makes the kvm-tec Extender ideal for many applications.Additionally, the kvm-tec security feature USB save prevents the intrusion ofcomputer viruses via the interface by disabling mass storage devices supportsuch as USB sticks and external hard disk drives. With the Matrix Switching Systemupgrade code enabled, the MVX Extender can be used with a standard networkSwitch to create a full KVM Matrix Switching System without any additionalhardware.
Key Features
- Maxresolution 1920×1200 @ 60 Hz
- Max distance150 m (492ft) in copper
- TransparentUSB 2.0 extension
- Full HDvideo in real time
- DVIextension without loss of quality
- Ultracompact up to 4 channels in a 19″ 1RU
- AutomaticPlug & Play installation
- One CAT5/6/7 cable for USB and video
- Local (CPU)- remote (CON) monitor output
- FirmwareFlash upgradeable without cable
- Highreliability and rugged design
- 19″rack mountable
- Screw-lockedDVI jack
TechnicalSpecifications
Interfaces
Video
DVI-I In/Out(no HCDP)
USB 2.0
USB-B – PC,USB-A (devices)
Audio
3.5mm jackplug (Line IN/OUT, Speaker)
Video
Signal Type
DVI-I, DVI-D
Resolution (Digital)
Max. 1920 x1200 @ 60Hz
Color Mode
24 bit
Audio (optional)
Type
Analog
Bandwith
16 bit,44kHz, 2ch
USB
Specification
USB 2.0
Type
Transparent
Rate
Max.480Mbit/s, mass storage and camera optional
Environment
Operating Temperature
32F – 133F
Storage Temperature
-13F -176F
Operating/Storage Humidity
<90%,non-condensing
Cooling
Free airconvection
Power & Physical
Power Supply
External 12VDC 1A, 6W
Casing Material
AnodizedAluminum
Dimensions (HxWxD)
1.57″ x3.83″ x 4.07″
Weight
10.1oz(Local), 10.3oz (Remote)
