kvm-tec MX2000-F Matrixline Extender Single Fiber Set

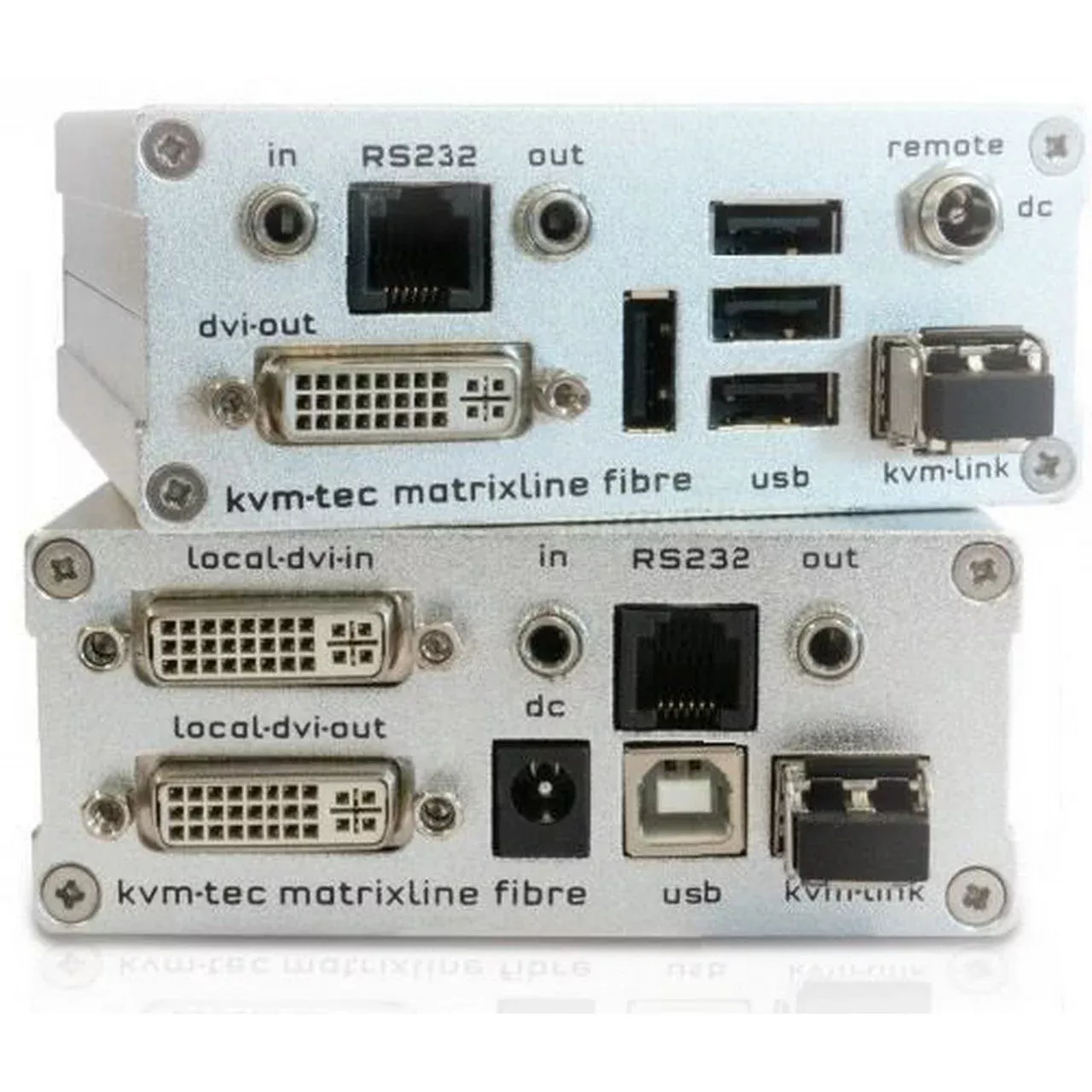

The 6811 isa KVM extender set containing one MX2000-F remote KVM extender unit and oneMX2000-F local KVM extender unit. The MX2000-F Remote KVM Extender at max rangehas a resolution of 1920×1200 and is available in a copper and a single fiberversion. The effect tuning of the kvm-tec video compression with a low latencytime enables the signals to be transmitted without delay. USB and video istransferred via one cable. The DVI extension without loss of quality allowsFull HD videos to be transmitted in real time. The transparent USB 2.0interface supports tablets and touchscreens, sound modules, printers and muchmore in the standard version. An USB option is included for memory sticks andUSB hard drives. High reliability and robust design make the kvm-tec extenderideal for many applications. Additionally, the kvm-tec security feature USBsave prevents the intrusion of computer viruses via the interface by disablingmass storage devices support such as USB memory sticks and external hard diskdrives. The MX Extender can be used with a standard net-work Switch to create afull KVM Matrix Switching System without any additional hardware.
Key Features
- Maxresolution 1920 x 1200 @ 60Hz
- TransparentUSB 2.0 extension
- Full HDvideo in real time
- DVIextension without loss of quality
- Ultracompact up to 4 channels in a 19″ 1RU
- AutomaticPlug & Play installation
- Only aduplex fiber cable for USB and video
- Local (CPU)- remote (CON) monitor output
- FirmwareFlash upgradeable without cable
- Highreliability and rugged design
- 19″rack mountable
- Screw-lockedDVI jack
TechnicalSpecifications
6811R Specs
Video
DVI-I Out
USB 2.0
USB-A(devices)
Audio
3.5mm jackplug (Line IN/Speaker)
RS232
RJ11connector (adapter RJ11 – Sub9 optional)
Signal Type
DVI-D
Resolution (Digital)
Max. 1920 x1200 @ 60Hz
Resolution (Analog)
Max 1920×1200 @ 60Hz (opt.)
Color Mode
24bit
Operating Temperature
32F – 133F
Storage Temperature
-13F -176F
Operating/Storage Humidity
<90%,non-condensing
Cooling
Free airconvection
Power Supply
External 12VDC 1A, 6W without USB devices
Casing Material
AnodizedAluminum
Dimensions (HxWxD)
1.57″ x3.83″ x 4.07″
Weight
10.3oz
6811L Specs
Video
DVI-I In/Out(no HCDP)
USB 2.0
USB-B – PC
Audio
3.5mm jackplug (Line IN/OUT)
RS232
RJ11connector (adapter RJ11 – Sub9 optional)
Signal Type
DVI-I
Resolution (Digital)
Max. 1920 x1200 @ 60Hz
Resolution (Analog)
Max 1920×1200 @ 60Hz (opt.)
Color Mode
24bit
Type
Analog
Bandwith
16bit,44kHz, 2ch
Specification
USB 2.0
Type
Transparent
Rate
Max.480Mbit/s, mass storage and camera optional
Operating Temperature
32F – 133F
Storage Temperature
-13F -176F
Operating/Storage Humidity
<90%,non-condensing
Cooling
Free airconvection
Power Supply
External 12VDC 1A, 6W
Casing Material
AnodizedAluminum
Dimensions (HxWxD)
1.57″ x3.83″ x 4.07″
Weight
10.7oz
