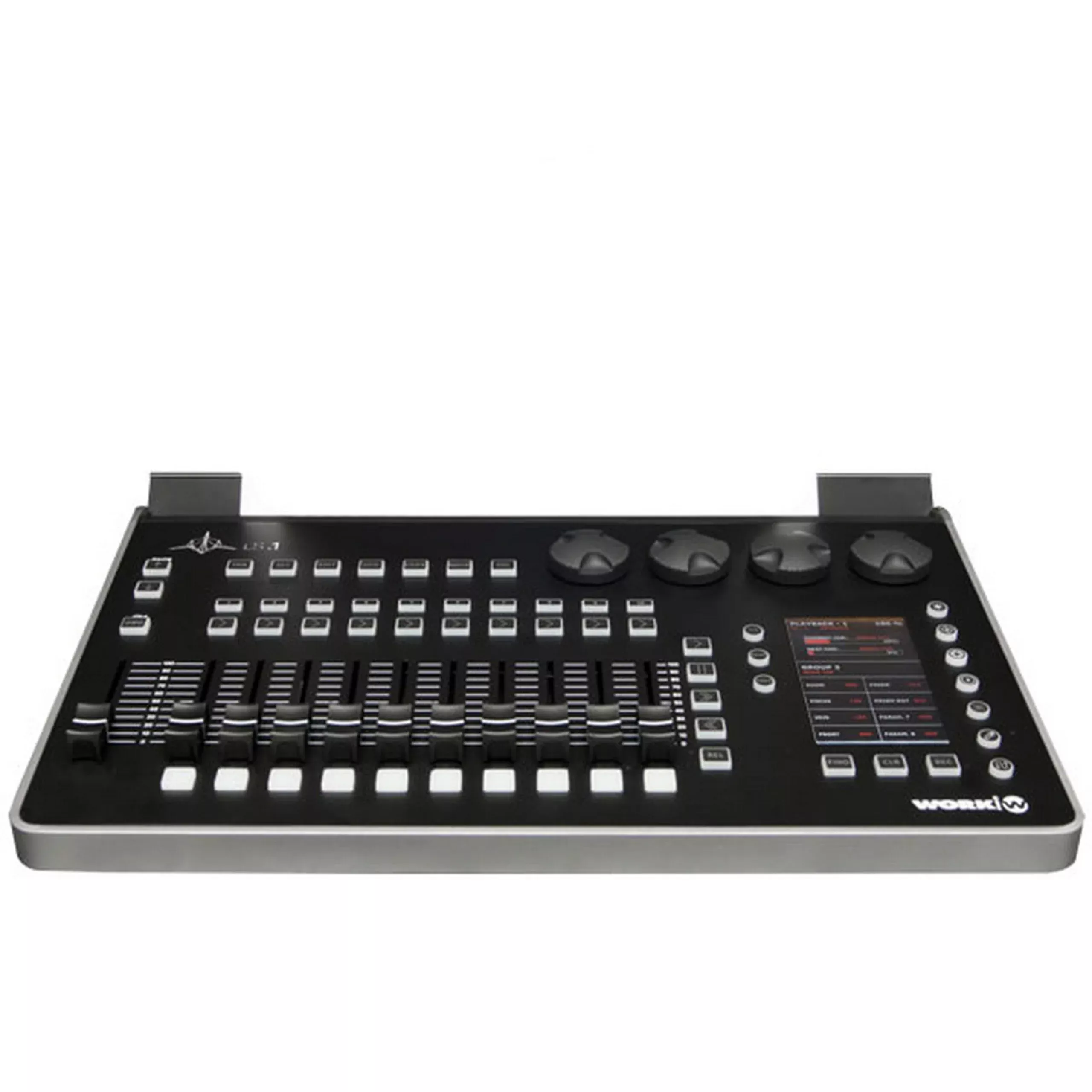

LightShark LS-WING DMX Controller Extension for LS-1 and LS-Core
LS.wing isan innovative hardwarewhich offers severalproducts in one:a Wing for LS.1 / LS .Core, an OSC/UDPhardware controller, aMIDI controller anda user programmable remote controller. LS .wing cansend/receive OSC commands through ethernet from any software or hardwarecompatible with thisprotocol. In addition,it can send/receiveUDP messages, makingit compatible with any AV device or software on the market. LS .wingoffers outstanding versatility to the lighting control market, as it can beconfigured to be compatible with other lighting systems. Developed as a 4 in 1product, LS .wing can be a straightforward fader wing, an OSC hardwarecontroller or a standalone MIDI console for any device that acceptsMIDI control viaUSB. A total offour USB portsare provided, includinga USB-B port, making it easy to connect to MIDIdevices and charge smartphones and tablets.
TechnicalSpecifications
Buttons
20 executor,10 selection, 20 Playback, 10 Flash, fully configurable
Faders
10 fadersfully configurable
I/O ports
1xLamp port(XLR-3 5V)
2xDMX(XLR-5)
3xLAN(EtherCon)
2xUSB-A(Data) + 1xUSB-A(only power 5V)
1xUSB-B
1xTrueOnemains
Configuration interface
Via Built-inWebserver. Accesible through LAN connection
DMX Outputs
Built-in LANto DMX ArtNET, sACN node with 2 universe outputs
Lamp connector DC Voltage
5V
USB POWER connector max. current
2A
USB Data connectors max Current
500mA each
Dimensions
325 x 100 x330 mm
Weight
2,7 kg
Power supply
90-230V50/60Hz TrueOne connector
