Luminex GigaCore 10 Ethernet Switch

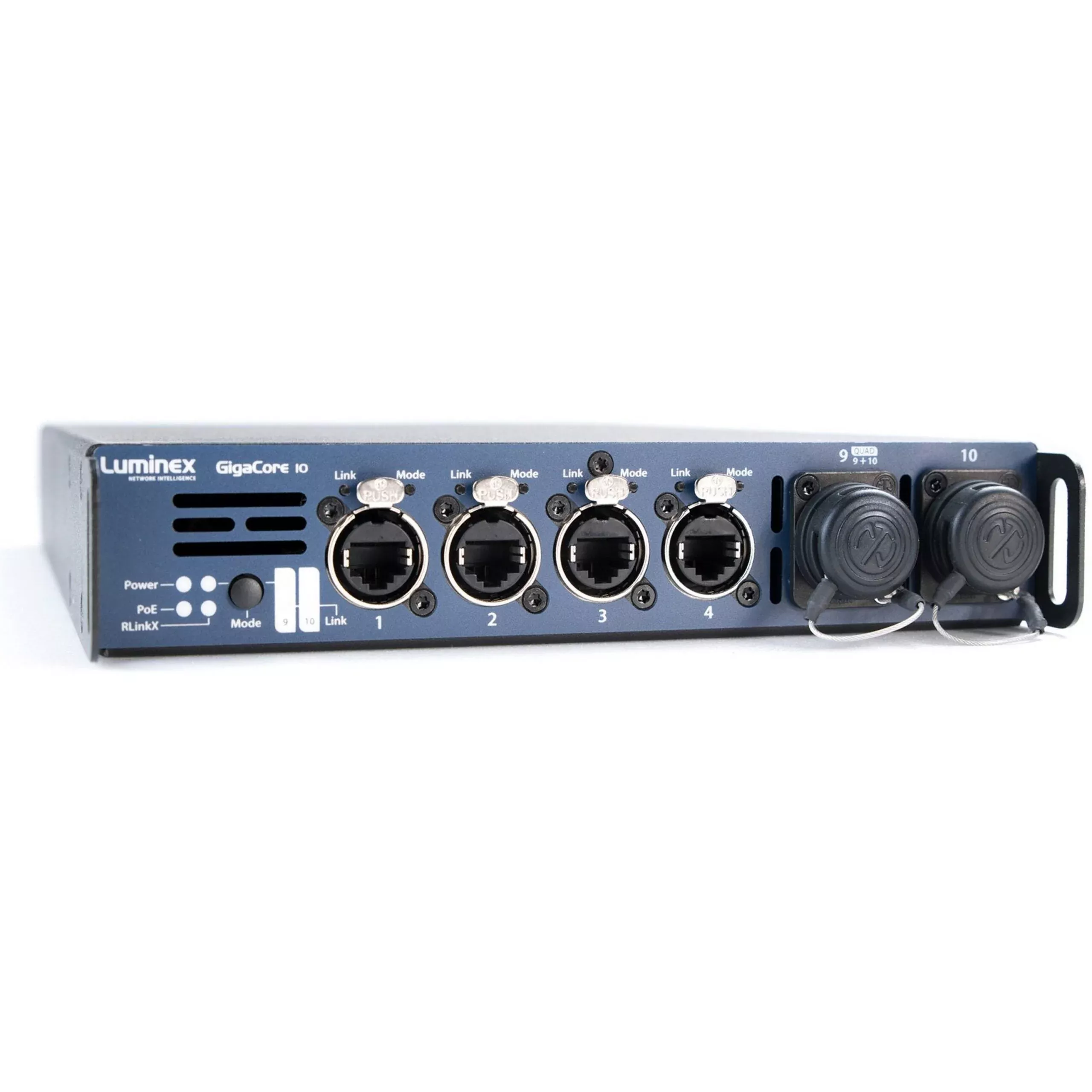

The LuminexGigaCore 10 is by far the most versatile Luminex Gigabit switch ever built. Thehalf 19 unit with front and rear connectivity is designed to be mounted in atruss, in a rack or even on a wall. The robust metal enclosure and ruggedEthercon and (optional) Fiber connectors make this unit excel in truss mountedapplications with Ethernet enabled devices, such as moving lights, PA systems,microphones, cameras or general stage connectivity. But also to ensure ultimateredundancy the GigaCore 10 is an excellent choice. Just by coupling two units,AV professionals can create a full 19 rack combination with a primary andsecondary unit.
Key Features
- Mostsuitable applications: Touring and live events
- RLinkX (Linkredundancy)
- Groups (VLANsegmentation)
- MultiLinkX(Link aggregation)
- Profilemanager
- Memory: 4Mb
- MAC addresstable:
- Addresslearning / Aging: Self learning, Auto aging
- Switchingthroughput: 22Gbps
- IGMPsupport: Yes (V1/V2/V3)
- IGMPsnooping: Yes, enabled by default
- Portsensing: Auto negotiation
- Autocrossover: MDI / MDIX
- Autosensing: Full or Half Duplex (Gigabit is Full Duplex)
TechnicalSpecifications
Ethernet connectivity
8 x ShieldedNeutrik Ethercon connectors
Fiber connectivity
2 x slot forrugged fiber connectors
Ethernet port speed
1Gbps
Serial
None
Power connectivity
1x NeutrikpowerCON TRUE1
Power input
100-240VAC,50-60Hz
Power consumption
Maximum 20W(maximum 150W with PoE Supply Unit)
Fuse
None
Backup power input
None
Backup PoE power input
None
PoE supplyon front ports
Supported protocols
Dante,RAVENNA/AES67, Ethersound, Q-LAN, REAC, sACN, ArtNet, MANet2, HogNet, RTTrPL(BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af)(optional), PoE+ (optional), IEEE 1588 PTP V2
Sound protocol compliance
Yes (lowjitter)
Ethernet compliance
IEEE 802.3,IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet
Mounting
Truss, rackor wall
Enclosure
Robust metalhousing
Dimensions(W x D x H)
8.66 inch x13 inch x 1.73 inch (220 x 330 x 44 mm)
Weight
6.1lbs (2.8kg)
Packaging
21 inch x 13inch x 3.15 inch (530 x 330 x 80 mm)
Environment
Operating temperature
32F to122F (0 to +50 C) (non-PoE version), 32F to 104F (0 to +40 C) (PoEversion)
Storage temperature
14F to158F (-10 to +70 C)
Humidity (non condensing)
5 to 95% RH
Installation / Use Cases
- Use as a rugged Gigabit Ethernet switch for touring and live event AV networks.
- Suitable for truss, rack, or wall mounting.
- Use with Ethernet-enabled devices such as moving lights, PA systems, microphones, cameras, and general stage connectivity.
- Use RLinkX for link redundancy in show-critical network setups.
- Use Groups for VLAN segmentation.
- Use MultiLinkX for link aggregation.
- Suitable for AV network protocols including Dante, RAVENNA/AES67, Ethersound, Q-LAN, REAC, sACN, ArtNet, MANet2, HogNet, RTTrPL, and IEEE 1588 PTP V2.
- Use two units together to create a full 19-inch rack combination with primary and secondary units.
Package Contents
- Luminex GigaCore 10 Ethernet Switch
