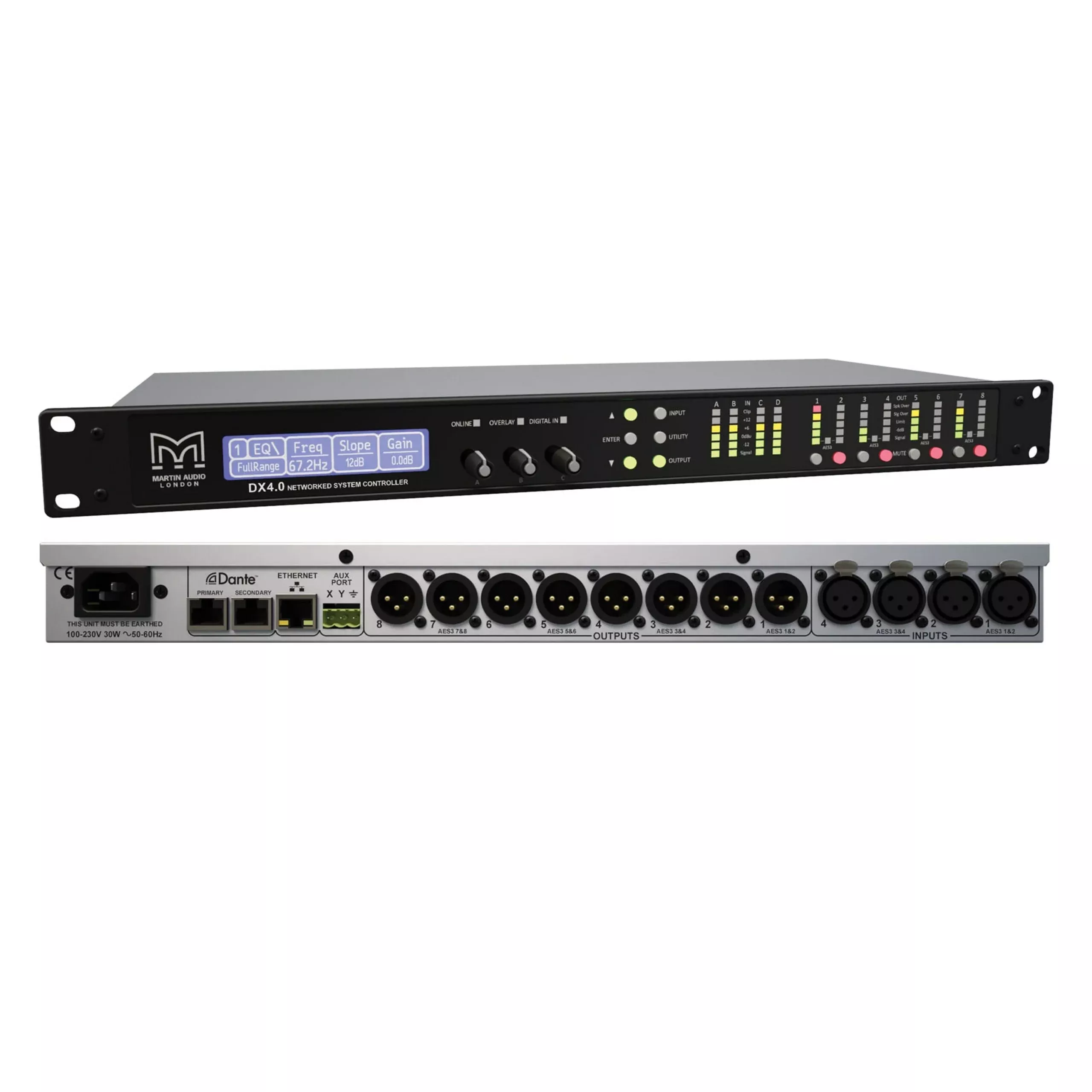

Martin Audio DX4.0 4-In-8-Out Networked Loudspeaker Processor/Controller/Matrix
The Martin Audio DX4.0 is an advanced loudspeaker controllerand system matrix with four input and eight output channels. Class-leadingsonic performance is achieved by state-of-the-art audio converters and DSPalgorithms, with a 96kHz sampling frequency delivering a nominally flatresponse beyond 40kHz.
Connected via Ethernet, system remote control and monitoringis done via Martin Audio’s VU-NET proprietary software application, while afront panel interface gives local control of features.
Four analogue/AES3 inputs and eight analogue/AES outputs areavailable, with AES3 inputs and outputs selected in pairs. Dante digital audionetworking is also provided for digital audio distribution and control, withautomatic fall back to analogue or AES3. By converting analogue or AES audio toDante, the DX4.0 provides ‘on-ramp’ entry to digital audio networking.
The DX4.0 features a sophisticated loudspeaker limiter suitewhich incorporates peak, RMS and excursion limiting, as well as multibandlimiting for passive two-way systems. High-pass filtering, three shelvingfilters and six parametric filters are provided for each input channel, withcrossover filters, two shelving filters and eight parametric filters on eachoutput channel.
The DX4.0 supports FIR filters for use with optimization ofMartin Audio’s O-Line and can also be used with Martin Audio’s U-Hub to feeddigital audio and network to an MLA Series array/subwoofer array via a singlecable.
Key Features
- Four input channels and eight output channels loudspeakerprocessor and matrix
- Analogue, AES3 and Dante digital audio inputs
- High performance 96kHz DSP
- Remote control and monitoring over Ethernet via Martin AudioVU-NET software
- FIR optimization for Martin Audio’s O-Line
- VX limiting allows a passive enclosure the same protectionas a fully active unit.
- Comprehensive suite of EQ’s, delays and all pass filters.
- Global mains operation 100-240V, 50-60Hz
Technical Specifications
GENERAL
TYPE
4 input/8 output digital loudspeaker processor
OPERATING TEMPERATURE
0 to 45°C
HUMIDITY RANGE
0 to 80% RH (non-condensing)
AUDIO PERFORMANCE
INPUT IMPEDANCE
>10kΩ balanced
OUTPUT IMPEDANCE
<100Ω balanced
MAX INPUT LEVEL
+20dBu
MAX OUTPUT LEVEL
+18dBu into 600Ω
FREQUENCY RESPONSE
10Hz – 40kHz
INPUT DYNAMIC RANGE
>120dBa typ.
OUTPUT DYNAMIC RANGE
>118dBa typ.
TOTAL HARMONIC DISTORTION
<0.008% typ. 20Hz-20kHz
DIGITAL SIGNAL PROCESSING
SAMPLE RATE
96kHz
AES3 INPUT SAMPLE RATE
28kHz – 108kHz
AES3 OUTPUT SAMPLE RATE
96kHz
POWER SUPPLY
AC OPERATING RANGE
100-240V +/-10%
POWER CONSUMPTION
30W
CONTROL AND MONITORING
PROTOCOL
Ethernet
CONTROL APPLICATION
Martin Audio VU-NET
CONNECTORS
AUDIO INPUT
4 x 3 pin female XLR for analogue or AES3 pairs
AUDIO OUTPUT
8 x 3 pin male XLR for analogue or AES3 pairs
ETHERNET
1 x shielded RJ45
DANTE NETWORK
2 x shielded RJ45, primary and secondary
AUX PORT
Phoenix connector for contact closure
MAINS POWER
3 pin IEC
PHYSICAL
DIMENSIONS
(W) 482mm x (H) 1U/44mm x (D) 184mm
(W) 19in x (H) 1U/1.75in x (D) 7.2in
WEIGHT
2.7Kg (6lbs)
